HOOD ASSEMBLY SPORT 0940443 and SPORT SKS 0940243 (4925052505007A)

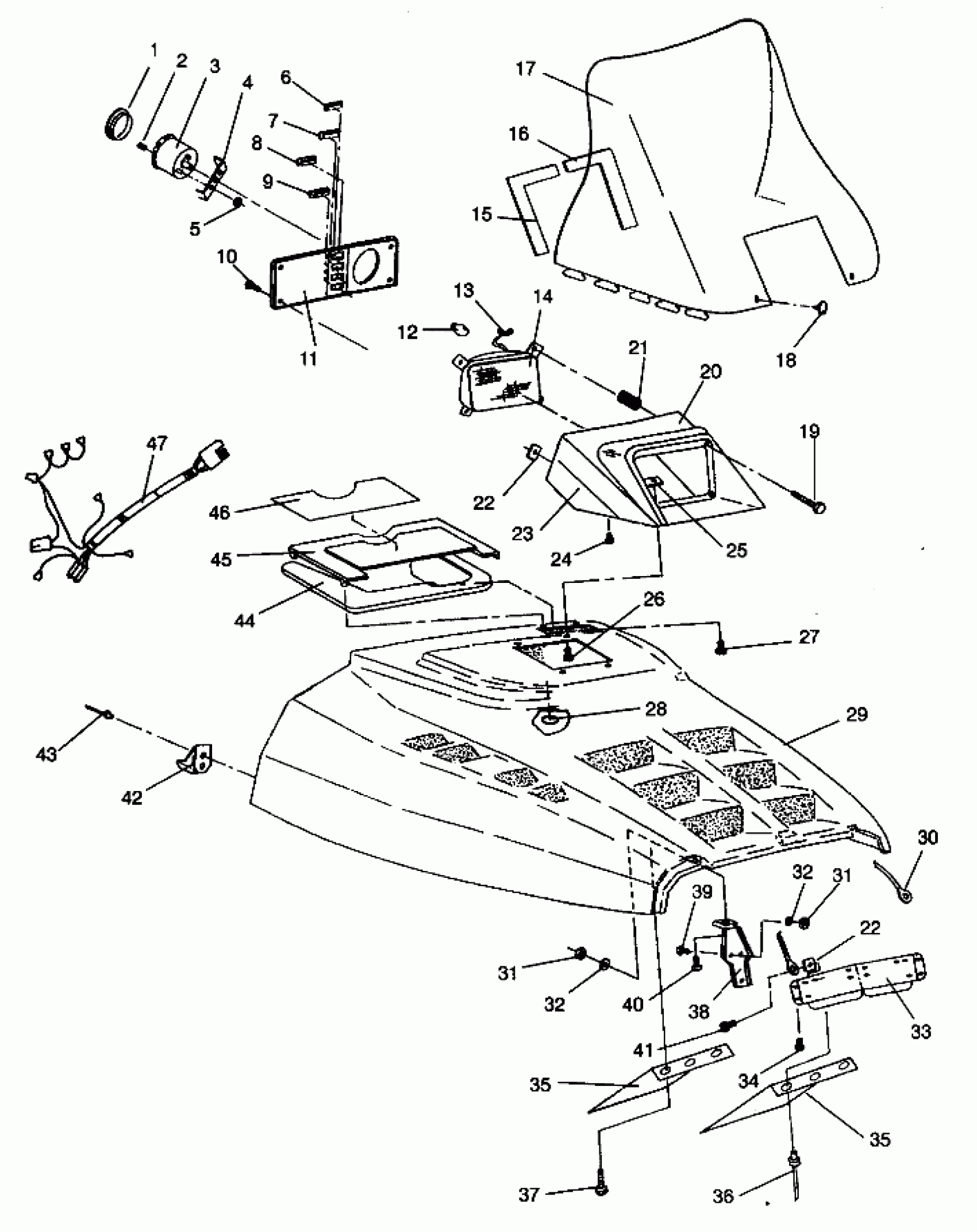

Polaris SPORT - 0940443 HOOD ASSEMBLY SPORT 0940443 and SPORT SKS 0940243 (4925052505007A) Diagram
#
1
PLUG,HOLE,(SKS) (SKS)
7080444
Unavailable
2
KNOB,TRIP ODOMETER,LH THD.
3280186
$9.70
3
SPEEDOMETER,BACKLIT (Incl. 4, 9)
3280148
Unavailable
4
BRACKET
3280098
Unavailable
5
INDICATOR'OIL/BRK'WARN.
4040034
$12.17
6
INDICATOR,'ACC'WARN.
4040014
Unavailable
7
INDICATOR'HI-BEAM'WARN.
4040013
Unavailable
8
PLUG,INDIC.HOLE
5430967
$5.65
9
NUT
3280063
Unavailable
10
CABLE,SPEEDO.
3280094
$60.70
11
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
12
BEZEL, INSTRUMENT
5431064
$16.67
13
BULB, H/L
4030028
$29.99
14
RETAINER,H/L BULB
4032063
Unavailable
15
HEADLIGHT ASM.
4032038
Unavailable
16
PAD,W/S,RH,BLACK
5810438
$1.67
17
PAD,W/S,LH,BLACK
5810437
Unavailable
18
WINDSHIELD, HIGH (SKS)
5431118
Unavailable
18
WINDSHIELD,SMOKE,STD(LIQ) (Sport)
5431144
$134.99
19
RIVET,(PLASTIC LOK)(50) Substituted by 7621509
7621505
$1.19
20
SCREW, ADJ.(10)
4032003
Unavailable
21
HSG,INST,TOP,BLK
5430923-070
Unavailable
22
SPRING-ADJ
4032002
Unavailable
22
SPRING-ADJ
4032002
Unavailable
23
NUT, SPEED(10)
7670056
Unavailable
24
HSG,INST.BOTT.BLK.
5430922-070
Unavailable
25
SCREW(10)
7512009
Unavailable
26
NUT, SPEED(10)
7670057
$1.49
27
SCREW, SEMS(10)
7512283
$3.99
28
SCREW(10)
7511840
Unavailable
29
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
30
HOOD ASM,(SPORT,94) (Incl. Foam, Foil & Warning Decals)
2631573-177
Unavailable
31
CABLE,HD.RETAINER
7080360
$24.27
31
CABLE,HD.RETAINER
7080360
$24.27
32
WASHER,WROUGHT(10)
7558302
$1.59
32
WASHER,WROUGHT(10)
7558302
$1.59
33
NUT-LOCK(10)
7542122
$1.49
34
PLATE,RE-INF.,(HD.)
5222105
$49.51
35
DEFLECTOR, AIR Substituted by 5243393
5222691
Unavailable
35
DEFLECTOR, AIR Substituted by 5243393
5222691
Unavailable
36
POP RIVET(50)
7621425
$1.49
37
SCREW(10)
7511861
Unavailable
38
SCREW(10)
7511858
$3.99
39
SCREW(10)
7511989
Unavailable
40
HINGE ASM,HD,BLK
2635005-067
$16.67
41
BOLT-CARRIAGE(10)
7512263
$3.99
42
BOLT(10)
7512193
$2.39
43
CUP, HOOD LATCH,(10)
5430733
$4.84
44
RIVET(50)
7621334
$1.49
45
SEAL, INTAKE
5810597
Unavailable
46
PANEL,INTAKE,BLK.METAL. Substituted by 2620078-177
5431195-177
Unavailable
47
DECAL,DASH WARNING [No Longer Available]
7072870
Unavailable
