FRONT SUSPENSION and SKI SPORT 0940443 and SPORT SKS 0940243 (4925052505011A)

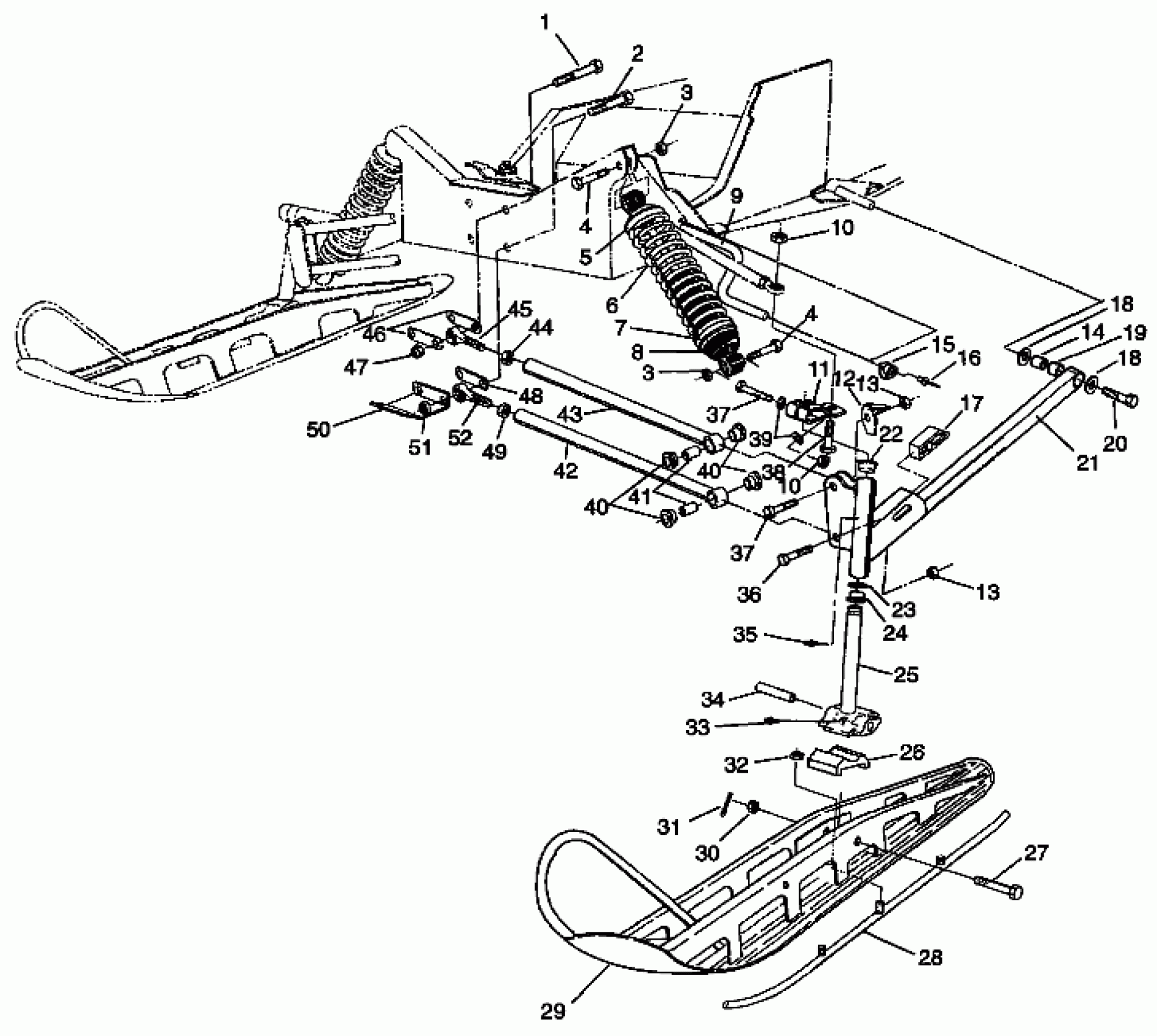

Polaris SPORT - 0940443 FRONT SUSPENSION and SKI SPORT 0940443 and SPORT SKS 0940243 (4925052505011A) Diagram
#
1
BOLT(10)
7512551
Unavailable
2
BOLT(10)
7512656
$6.23
3
NUT, NYLOC(10)
7542453
Unavailable
3
NUT, NYLOC(10)
7542453
Unavailable
4
BOLT(10) Substituted by 7515415
7515515
Unavailable
4
BOLT(10) Substituted by 7515415
7515515
Unavailable
5
RETAINER-TOP
5220225
$10.39
6
SPRING,COMP.,BLK.
7041261-067
$164.99
7
SPACER,SHOCK RETAINER(10)
5210953
$6.39
8
SHOCK,FR.SUSP.
7041284
Unavailable
9
BAR,SWAY,BLACK (SKS)
5224237-067
Unavailable
10
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
10
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
10
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
11
Arm, Steering
5220326-067
Unavailable
12
STOP,STRNG,LH,BLK.
5220237-067
Unavailable
12
STOP,STRNG,RH,BLK.
5220238-067
Unavailable
13
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
13
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
14
TUBE,TRAILING ARM
5010187
Unavailable
15
BUSHING-SWAYBAR (SKS)
5410383
Unavailable
16
RIVET(50) (SKS)
7621433
$1.49
17
SLIDE-SWAYBAR (SKS)
5410384
Unavailable
18
WASHER(10)
7555721
$1.49
18
WASHER(10)
7555721
$1.49
19
PIVOT-TRAILING ARM
5410382
Unavailable
20
BOLT(10)
7512557
$7.60
21
ARM,TRLG,LH,BLK. Substituted by 1822427
1822053-067
Unavailable
21
ARM,TRLG,RH,BLK. Substituted by 1822428
1822052-067
Unavailable
22
BUSHING-FLANGE
3573909
$2.39
23
WASHER SPECIAL(10)
7556509
$1.59
24
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
25
SPINDLE, BLK.
6230073-067
Unavailable
26
STOP, RUBBER
5521276
Unavailable
27
BOLT(10)
7515462
$8.79
28
SKAG,SHORT(20)
1820267
$23.99
29
SKI WELD, BLK
1820332-067
Unavailable
30
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
31
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
32
NUT-5/16-18 NYLOK-Y
7542324
$1.49
33
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
34
BUSHING,PIVOT,(10)
5010158
$19.99
35
ZERK,FITTING,THREADED(10)
7080433
$1.49
36
BOLT(10) Substituted by 7515540
7515492
$4.62
37
BOLT(10) Substituted by 7517583
7515491
Unavailable
37
BOLT(10) Substituted by 7517583
7515491
Unavailable
38
BOLT Substituted by 7512404
7515490
Unavailable
39
WASHER(10) Substituted by 7555832
7555851
Unavailable
40
BUSHING-RADIUS ROD,(10)
5010127
$7.99
40
BUSHING-RADIUS ROD,(10)
5010127
$7.99
41
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
42
ROD,RAD.LOW.
1822123-067
Unavailable
43
ROD,RAD.UP.
1822121-067
Unavailable
44
NUT JAM(10)
7542520
$2.39
44
NUT JAM(10)
7542520
$2.39
45
ROD END, RH Substituted by 7061010
7060155
Unavailable
46
STRAP,SPACER TOP
5211344
$7.27
47
NUT, LOCK,(10)
7542503
$10.39
48
STRAP,SPACER BOTTOM
5211345
$12.99
49
NUT-JAM(10)
7542711
$2.39
50
BRACE, PAN
5223997-067
Unavailable
51
NUT FLEX,(10)
7542703
Unavailable
52
ROD END,RH Substituted by 7061011
7060156
Unavailable
