CARBURETOR ASSEMBLY SPORT 0940443 and SPORT SKS 0940243 (4925052505035A)

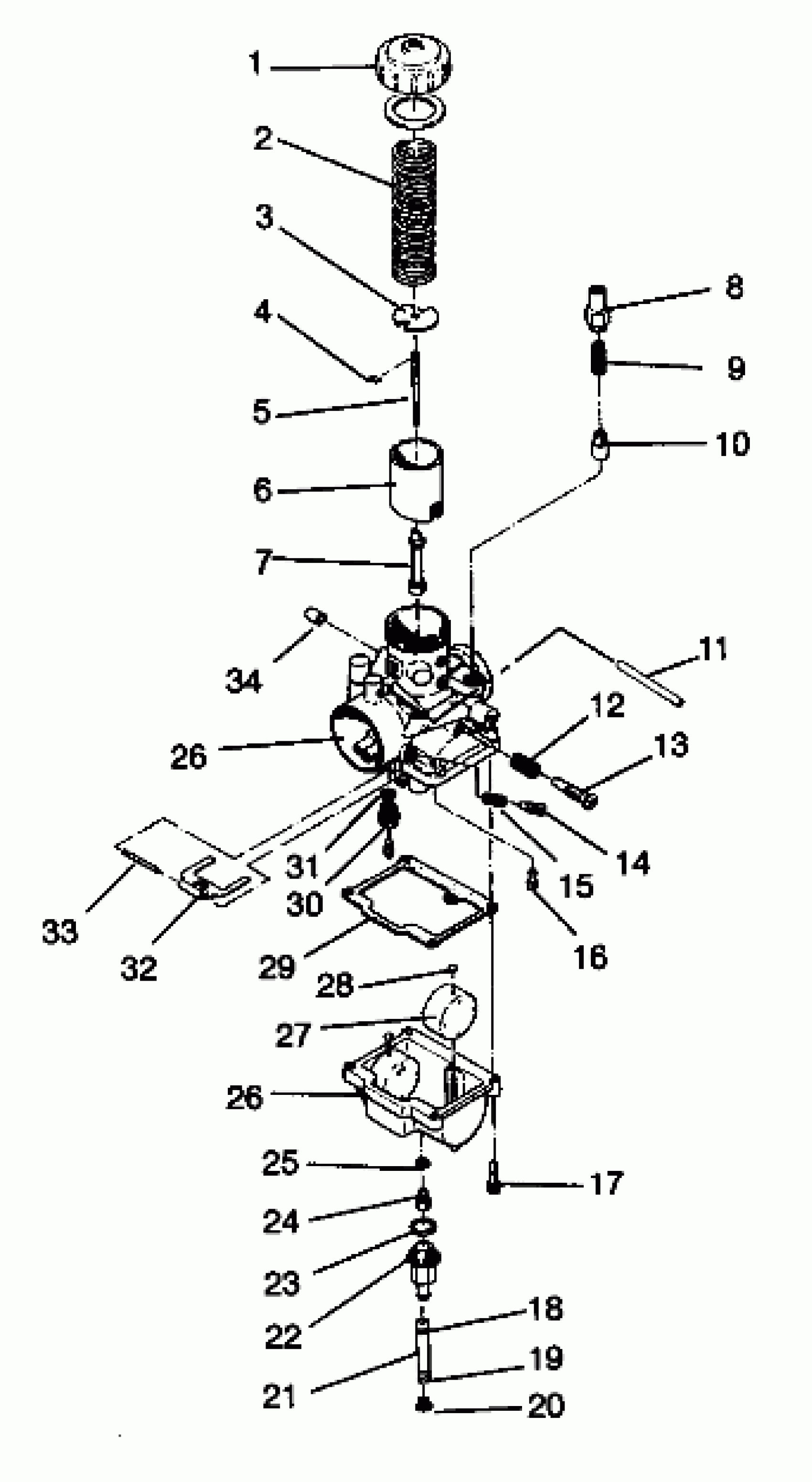

Polaris SPORT - 0940443 CARBURETOR ASSEMBLY SPORT 0940443 and SPORT SKS 0940243 (4925052505035A) Diagram
#
Description
Price
1
TOP ASM
3130184
$32.37
2
SPRING, THROTTLE
3130318
$20.22
3
PLATE
3130027
$9.70
4
E RING(10) Substituted by 3130508
3130003
Unavailable
5
JET NEEDLE (6DH7-3)
3130329
Unavailable
6
VALVE, THROTTLE (2.5)
3130466
Unavailable
7
NEEDLE JET,(Q-2) (166)
3130376
Unavailable
8
HOLDER,GUIDE
3130199
$28.32
9
SPRING,PLUNGER
3130006
$8.89
10
PLUNGER ASM, STARTER
3130328
$32.37
11
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
12
SPRING,THROTTLE ADJ.
3130010
$8.89
13
SCREW,THROTTLE STOP
3130009
$19.99
14
SCREW,AIR
3130011
$19.99
15
SPRING,AIR ADJUST
3130012
$8.89
16
JET,PILOT,#35(10) (#35)
3130066
$8.89
17
SCREW & WASHER(10)
3130025
$3.19
18
CLAMP-HOSE,(10) (Yellow)
7080236
$1.59
19
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
20
PLUG,TRAP
5431893
$12.94
21
FUELLINE,600CM,5/16 ID.
8450057-600
Unavailable
22
FITTING,SEDIMENT Substituted by 3130573
5020476
$10.63
23
O RING
3130239
Unavailable
24
JET,MAIN,HX.HD#180(10) (#180)
3130119
Unavailable
25
WASHER (10)
3130014
$1.59
26
CARBURETOR ASM. (Incl. 1-17,23-34)
3130459
Unavailable
26
CARBURETOR ASM. (Incl. 1-17,23-34)
3130459
Unavailable
27
FLOAT ASM.
3130430
$43.56
28
CAP,(10)
3130237
$4.03
29
PACKING,FLOAT CHAMBER
3130020
$16.17
30
VALVE,NEEDLE Substituted by 3131146 (1.5)
3130016
$48.56
31
PACKING(10)
3130017
$4.03
32
ARM,FLOAT
3130018
$24.27
33
PIN, FLOAT Substituted by 3130361
3130235
$8.89
34
CAP
3130479
$14.56
