SEAT and GAS TANK ASSEMBLY SPORT / 0930443 (4922942294002A)

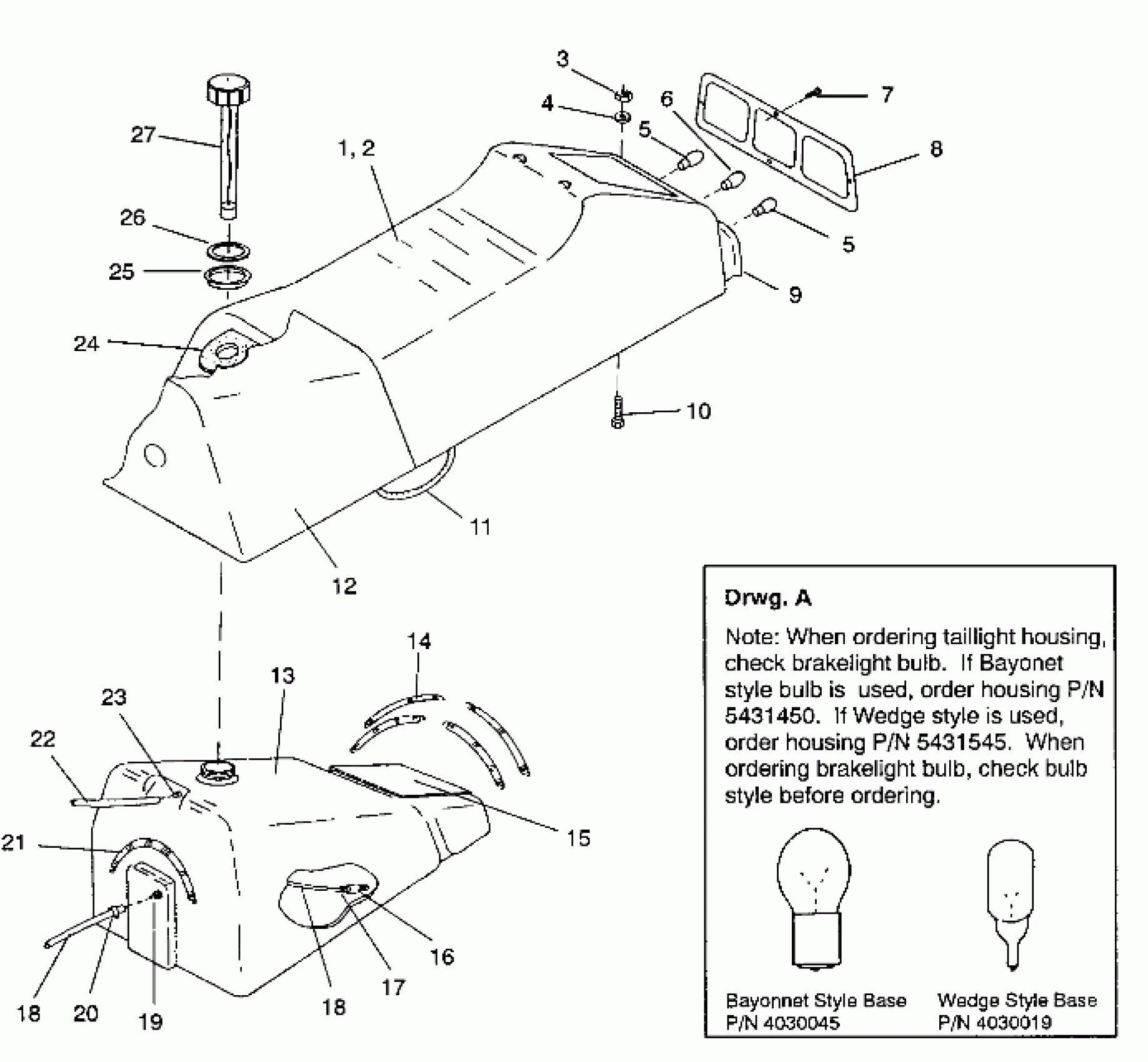

Polaris SPORT - 0930443 SEAT and GAS TANK ASSEMBLY SPORT / 0930443 (4922942294002A) Diagram
#
Description
Price
1
SEAT CUSHION ASM. Substituted by 2200751 (Incl. 2, 5-9, 14 & 15)
2681608
Unavailable
2
COVER,SEAT,(SPORT) Substituted by 2200741
2681609
Unavailable
3
NUT-LOCK(10)
7542122
$1.49
4
WASHER(10)
7558221
$2.39
5
BULB,TAILLIGHT(10)
4030024
$4.84
5
BULB,TAILLIGHT(10)
4030024
$4.84
6
Bulb, Brakelight
4030045
Unavailable
7
SCREW(10)
7511840
Unavailable
8
LENS,TAILLIGHT
5430423
Unavailable
9
HOUSING,TAILLIGHT Substituted by 5433341 (See Drwg. A)
5431545
Unavailable
9
HOUSING, TAILLIGHT (See Drwg. A)
5431450
$19.83
10
BOLT(10)
7512103
$3.19
11
HARNESS,TAILLIGHT
2460370
$31.35
12
COVER,TANK(93SPORT) Substituted by 2200741
2681610
Unavailable
13
TANK, GAS Substituted by 2511199 (Incl. 16-19, 23)
5431386
Unavailable
14
SPRING, TANK
7042033
Unavailable
15
INSERT,TANKCOVER
5850098
Unavailable
16
FUELPICKUP,W/STRAINER
7052037
$12.94
17
RING, COMPRESSION(10)
7080402
$1.60
18
GAS LINE, (FT.) [Cannot Purchase as Assembly]
8450003
Unavailable
18
GAS LINE, (FT.) [Cannot Purchase as Assembly]
8450003
Unavailable
19
FITTING - OUTLET(10)
7052023
$24.99
20
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
21
SPRING,TANK,(10)
7042020
$13.75
22
VENT LINE,1/8,BULK Substituted by 8360009-600
8360009
Unavailable
23
VENT FITTING,TANK Substituted by 5430579
5430669
Unavailable
24
FOAM, FILLER
5810201
Unavailable
25
GROMMET
5410644
Unavailable
26
GASKET, GAS CAP
5810513
$8.89
27
GAUGE, GAS
2511198
Unavailable
