PISTON and CRANKSHAFT SPORT / 0930443 (4922942294028A)

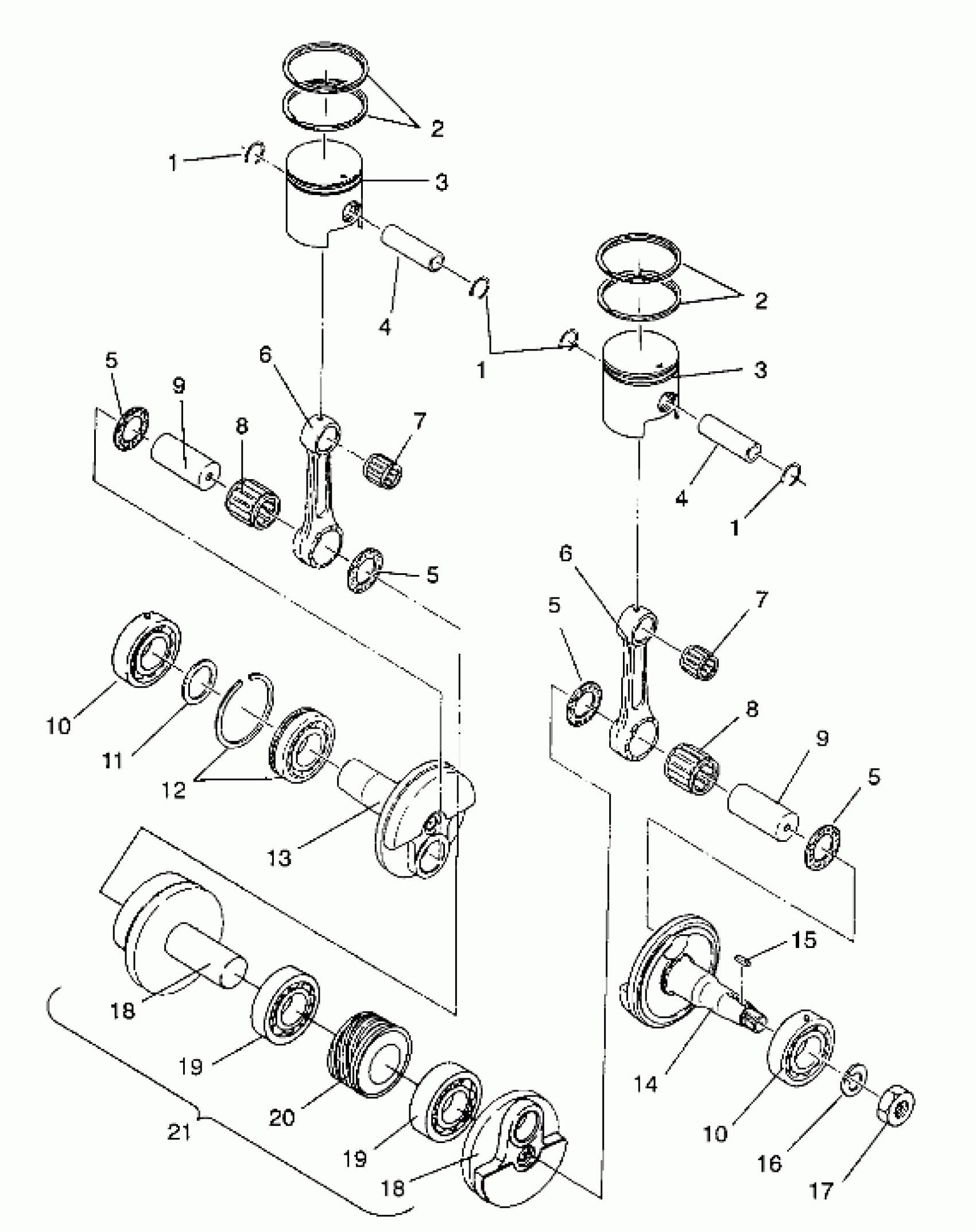

Polaris SPORT - 0930443 PISTON and CRANKSHAFT SPORT / 0930443 (4922942294028A) Diagram
#
1
CLIP,PISTON PIN,(10)
3083839
$4.75
1
CLIP,PISTON PIN,(10)
3083839
$4.75
1
CLIP,PISTON PIN,(10)
3083839
$4.75
2
RING, PISTON (Standard)
3082822
Unavailable
2
RING,PISTON,.010 O/S (0.25mm/.010"O/S)
3084242
Unavailable
2
RING,PISTON,(.020) (0.50mm/.020"O/S)
3084243
Unavailable
2
RING, PISTON (Standard)
3082822
Unavailable
2
RING,PISTON,.010 O/S (0.25mm/.010"O/S)
3084242
Unavailable
2
RING,PISTON,(.020) (0.50mm/.020"O/S)
3084243
Unavailable
3
PISTON,(.010 O/S) Substituted by 3085838 (0.25m/.010"O/S)
3084240
Unavailable
3
PISTON,(.020 O/S) Substituted by 3085839 (0.50m/.020"O/S)
3084241
Unavailable
3
PISTON, STD. Substituted by 3085837 (Standard)
3084239
$138.08
3
PISTON,(.010 O/S) Substituted by 3085838 (0.25m/.010"O/S)
3084240
Unavailable
3
PISTON,(.020 O/S) Substituted by 3085839 (0.50m/.020"O/S)
3084241
Unavailable
3
PISTON, STD. Substituted by 3085837 (Standard)
3084239
$138.08
4
PIN, PISTON
3083858
$23.99
4
PIN, PISTON
3083858
$23.99
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
6
ROD-CONNECTING
3083252
$164.99
6
ROD-CONNECTING
3083252
$164.99
7
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
7
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
8
BEARING, LARGE END
3084274
$19.19
8
BEARING, LARGE END
3084274
$19.19
9
PIN,CRANK
3083233
$36.41
9
PIN,CRANK
3083233
$36.41
10
BEARING, BALL Substituted by 3084586
3083480
$44.99
10
BEARING, BALL Substituted by 3084586
3083480
$44.99
11
SPACER,CRANKSHAFT
3080447
$1.99
12
BEARING, BALL Substituted by 3084587
3084275
Unavailable
13
CRANKSHAFT #3 (PTO Side)
3083278
Unavailable
14
CRANKSHAFT #1 (Mag Side)
3083280
$255.99
15
KEY
3081447
Unavailable
16
WASHER-SPRING(10)
3083094
$3.17
17
NUT
3083093
$19.99
18
CRANKSHAFT #2 (Center)
3083890
Unavailable
18
CRANKSHAFT #2 (Center)
3083890
Unavailable
19
Bearing, Ball
3515501
$27.99
19
Bearing, Ball
3515501
$27.99
20
DRIVEGEAR,OILPUMP
3083780
$107.99
21
CRANKSHAFT ASM. Substituted by 3084585 (Incl. 5, 6, 8-11, 14, 18-20)
3084273
Unavailable
21
CRANKSHAFT ASM. Substituted by 3084585 (Incl. 5,6, 8-11,14,18-20)
3084273
Unavailable
