HOOD ASSEMBLY SPORT / 0930443 (4922942294005A)

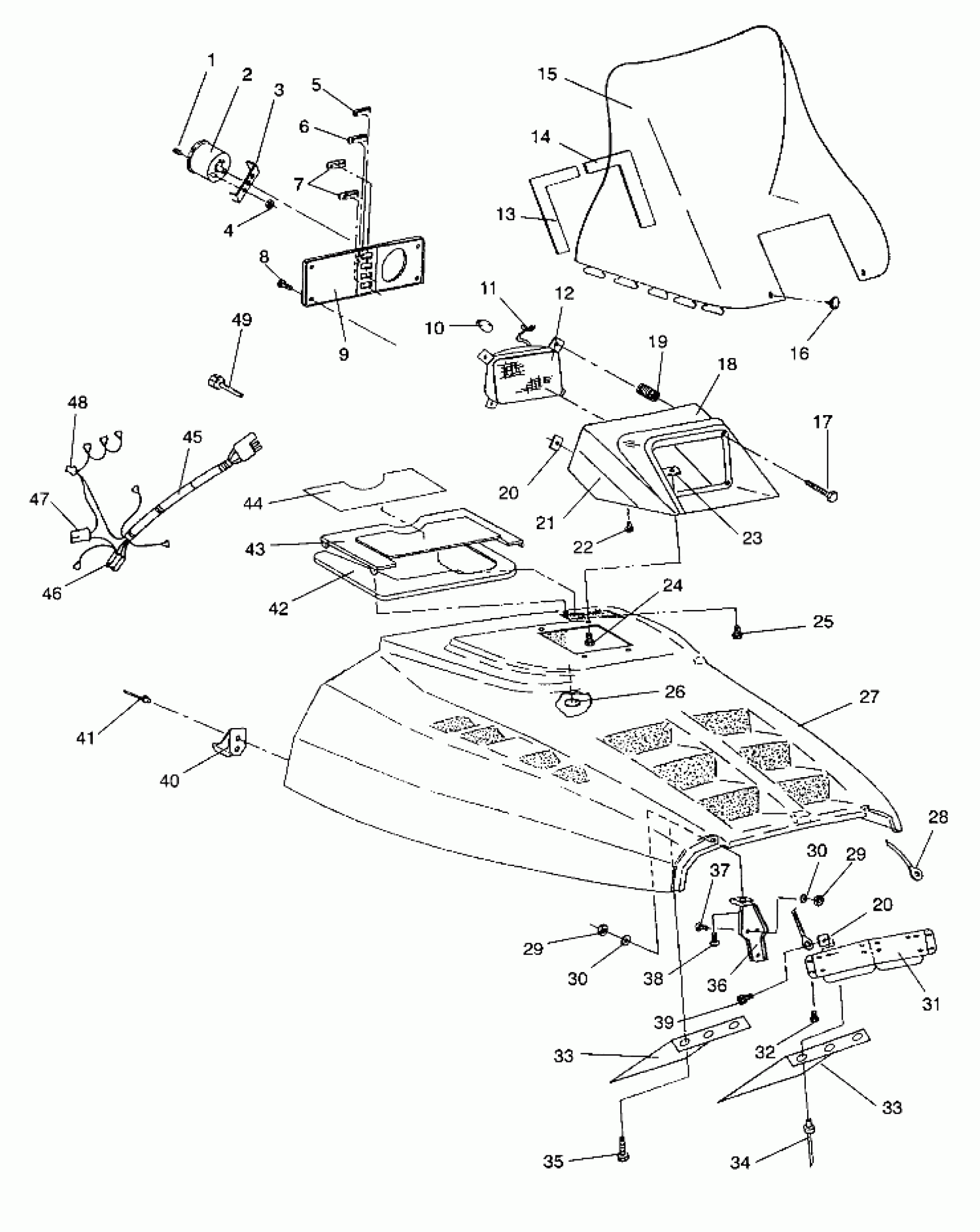

Polaris SPORT - 0930443 HOOD ASSEMBLY SPORT / 0930443 (4922942294005A) Diagram
#
1
KNOB,TRIP ODOMETER
3280103
$3.83
2
SPEEDOMETER (Incl. 3, 4)
3280092
$111.99
2
SPEEDO.,(KILOMETER) (Incl. 3, 4)
3280097
$125.65
3
BRACKET
3280098
Unavailable
4
NUT
3280063
Unavailable
5
PLUG,INDIC.HOLE
5430967
$5.65
5
INDICATOR'BRAKE'WARN.
4040035
Unavailable
6
INDICATOR,'ACC'WARN.
4040014
Unavailable
7
PLUG,INDIC.HOLE
5430967
$5.65
8
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
9
BEZEL, INSTRUMENT
5431064
$16.67
10
BULB, H/L
4030028
$29.99
11
RETAINER,H/L BULB
4032063
Unavailable
12
HEADLIGHT ASM.
4032038
Unavailable
13
PAD, W/S
5810415
Unavailable
14
PAD, W/S, LH
5810414
Unavailable
15
WINDSHIELD,SMOKE,STD(LIQ)
5431144
$134.99
16
RIVET,(PLASTIC LOK)(50) Substituted by 7621509
7621505
$1.19
17
SCREW, ADJ.(10)
4032003
Unavailable
18
HSG,INST.TOP,GREY
5430923-153
$38.71
19
SPRING-ADJ
4032002
Unavailable
20
NUT, SPEED(10)
7670056
Unavailable
20
NUT, SPEED(10)
7670056
Unavailable
21
HSG,INST.BOTT,GREY
5430922-153
$39.48
22
SCREW(10)
7512009
Unavailable
23
NUT, SPEED(10)
7670057
$1.49
24
SCREW, SEMS(10)
7512283
$3.99
25
SCREW(10)
7511840
Unavailable
26
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
27
HOOD,FAN,CLARET Substituted by 2631573-172 (Incl. Foam & Foil)
5431193-172
Unavailable
28
CABLE,HD.RETAINER
7080360
$24.27
29
NUT-LOCK(10)
7542122
$1.49
29
NUT-LOCK(10)
7542122
$1.49
30
WASHER,WROUGHT(10)
7558302
$1.59
30
WASHER,WROUGHT(10)
7558302
$1.59
31
PLATE,RE-INF.,(HD.)
5222105
$49.51
32
SCREW(10)
7511861
Unavailable
33
DEFLECTOR, AIR
5222458
Unavailable
33
DEFLECTOR, AIR
5222458
Unavailable
34
POP RIVET(50)
7621425
$1.49
35
SCREW(10)
7511858
$3.99
36
HINGE ASM,HD,BLK
2635005-067
$16.67
37
BOLT(10)
7512193
$2.39
38
BOLT-CARRIAGE(10)
7512263
$3.99
39
SCREW(10)
7511989
Unavailable
40
CUP, HOOD LATCH,(10)
5430733
$4.84
41
RIVET(50)
7621334
$1.49
42
SEAL, INTAKE
5810597
Unavailable
43
PANEL,INTAKE,CLARET Substituted by 2620078-172
5431195-172
Unavailable
44
DECAL,DASH WARNING [No Longer Available]
7072870
Unavailable
45
HARNESS, HEADLIGHT
2460377
Unavailable
46
HOUSING
4020052
Unavailable
47
Housing
4020115
$1.59
48
HOUSING
4020114
Unavailable
49
CABLE,SPEEDO.
3280094
$60.70
49
DESC NOT_AVAILABLE
2652096
Unavailable
