ENGINE MOUNTING SPORT / 0930443 (4922942294023A)

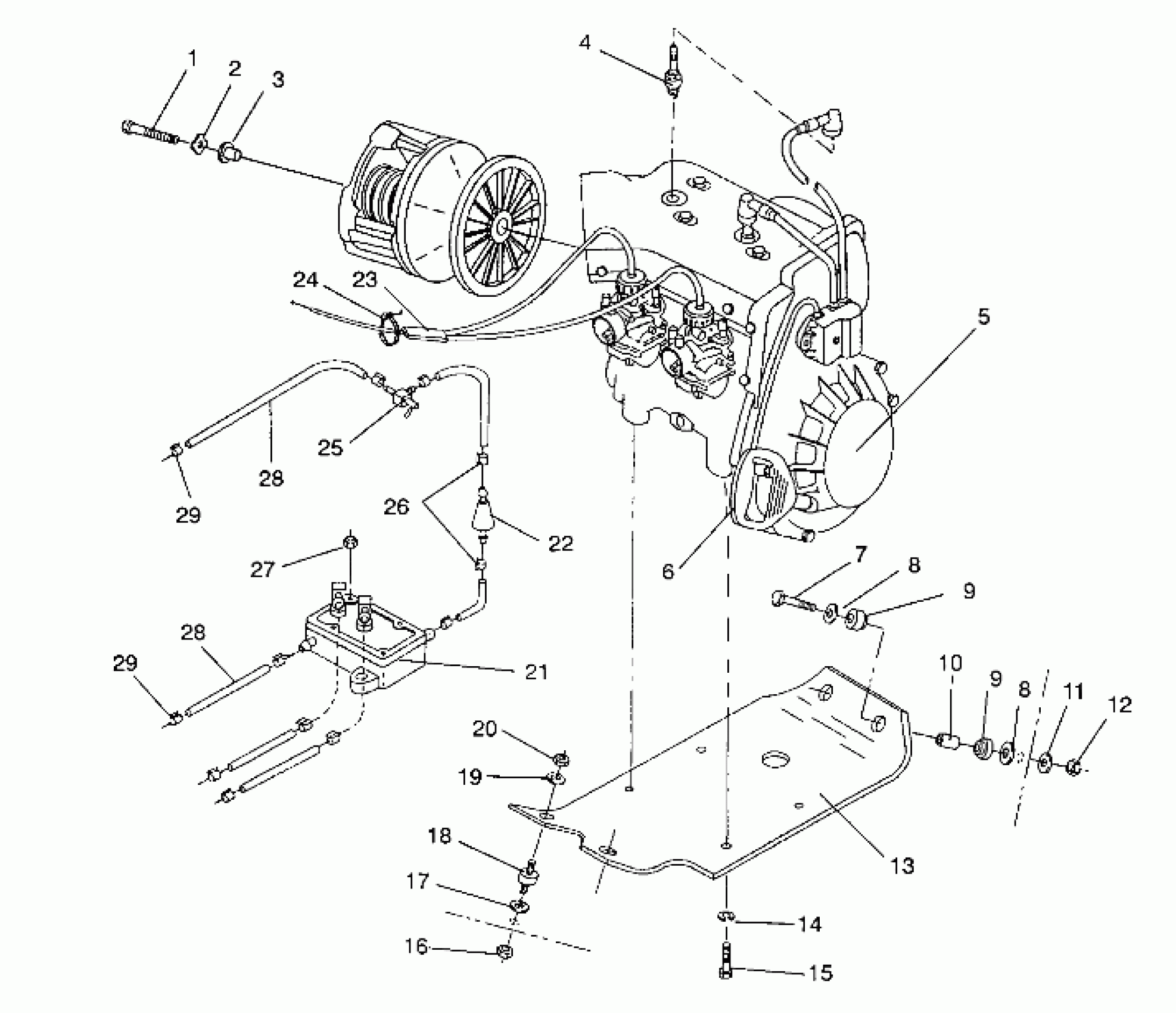

Polaris SPORT - 0930443 ENGINE MOUNTING SPORT / 0930443 (4922942294023A) Diagram
#
Description
Price
1
BOLT(10)
7512566
$30.79
2
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
3
WASHER,CLUTCH RETAINER
5010278
Unavailable
4
SPARKPLUG (10)
3070156
$3.99
5
ENG,EC44-3PM-01 [No Longer Available]
1211477
Unavailable
6
HANDLE-RECOIL
5430520
Unavailable
7
SCREW(10)
7512530
$5.59
8
WASHER(10)
7555740
$1.59
8
WASHER(10)
7555740
$1.59
9
MOUNT, ENGINE
5410390
Unavailable
9
MOUNT, ENGINE
5410390
Unavailable
10
SPACER, (MTR.MT.)
5332778
Unavailable
11
WASHER(10)
7555817
Unavailable
12
NUT, LOCK,(10)
7542503
$10.39
13
PLATE,ENG.MT.
5222169
Unavailable
14
WASHER LOCK(10)
7553101
$3.99
15
BOLT(10)
7512539
$3.99
16
NUT LOCK(10)
7542411
$3.19
17
WASHER(10)
7555721
$1.49
18
MOUNT
3110022
Unavailable
19
WASHER(10) Substituted by 7555806
7555720
$0.79
20
NUT-LOCK(10)
7542439
$1.49
21
Fuel Pump (See pg. 28)
-------
Unavailable
22
FILTER FUEL,(10)
2530008
$4.84
23
CABLE,THROTTLE Substituted by 7080552
7080332
Unavailable
24
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
25
VALVE,FUEL SHUT-OFF
7052039
Unavailable
26
CLAMP, HOSE
7080490
Unavailable
27
NUT-LOCK(10)
7542122
$1.49
28
GOODYEAR,1/4"SAE#30R7 Substituted by 5521132
8450040
Unavailable
28
GOODYEAR,1/4"SAE#30R7 Substituted by 5521132
8450040
Unavailable
29
HOSE CLAMP, RED
7080003
$1.49
29
HOSE CLAMP, RED
7080003
$1.49
