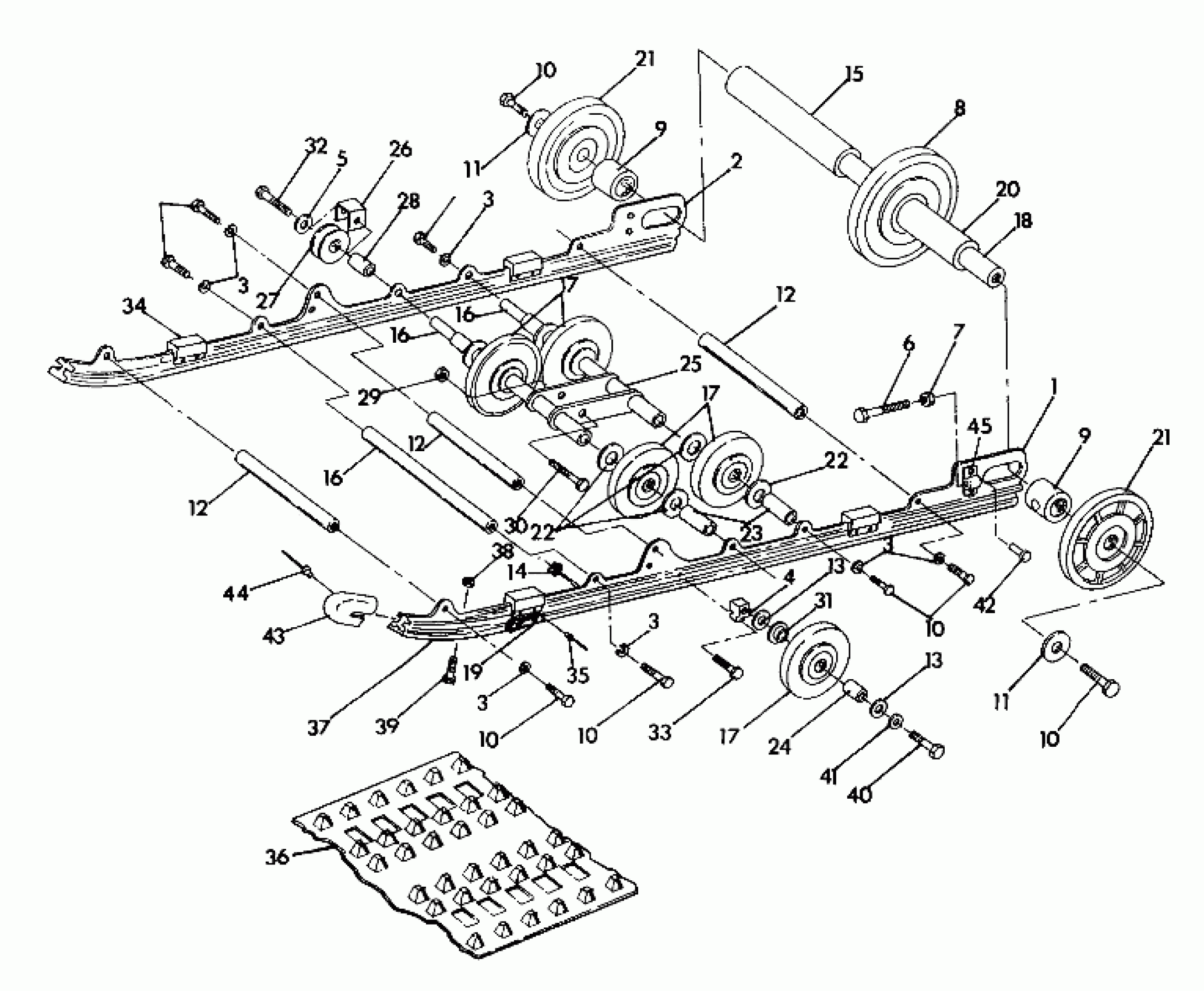

Polaris SPORT - 0920443 SUSPENSION Sport GT (4921282128031A) Diagram
#
1
RAIL ASM, LH Substituted by 1541124
1540659
Unavailable
2
RAIL ASM, RH Substituted by 1541125
1540660
Unavailable
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
4
BRACKET,BOGIE WHEEL
5130570
$48.56
5
WASHER(10)
7555743
Unavailable
6
BOLT, ADJUSTER(10)
7515455
$29.99
7
NUT(10)
7542440
Unavailable
8
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
9
SPACER-IDLER-OUTER
5332641
Unavailable
9
SPACER-IDLER-OUTER
5332641
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
11
WASHER FLAT(10)
7555732
Unavailable
11
WASHER FLAT(10)
7555732
Unavailable
12
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
12
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
12
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
13
WASHER(10)
7555804
$3.99
13
WASHER(10)
7555804
$3.99
14
NUT LOCK(10)
7542403
$3.99
15
SPACER,IDLER,R.INNER
5333086
Unavailable
16
SHAFT-PIVOT ARM Substituted by 5020724
5020415
$29.99
16
SHAFT-PIVOT ARM Substituted by 5020724
5020415
$29.99
16
SHAFT-PIVOT ARM Substituted by 5020724
5020415
$29.99
17
WHEEL, IDLER
1543018
$56.65
17
WHEEL, IDLER
1543018
$56.65
18
SHAFT,REAR IDLER Substituted by 5020722
5020395
Unavailable
19
REINF., BUMPER
5222629
$13.75
20
SPACER INNER IDLER
5010169
Unavailable
21
WHEEL, IDLER
1594032
Unavailable
21
WHEEL, IDLER
1594032
Unavailable
22
MACHINERY BUSHING(10)
7556301
$3.19
22
MACHINERY BUSHING(10)
7556301
$3.19
23
SPACER, OUTER
5332784
Unavailable
24
SPACER
5332786
$7.99
25
ARM,SHOCK MT,BLK. Substituted by 1541334-067
1540636-067
Unavailable
26
RETAINER
5220402-067
Unavailable
27
ROLLER-SPRING
5430540
Unavailable
28
SPACER-ROLLER
5332655
Unavailable
29
NUT-LOCK(10)
7542439
$1.49
30
BOLT(10)
7515438
$4.79
31
INSERT-WHEEL Substituted by 5431531
5430789
$9.70
32
BOLT, SUSP.(10)
7515499
Unavailable
33
BOLT(10)
7512404
$3.99
34
BUMPER, RAIL
5810554
$7.27
35
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
36
TRACK
5410599
Unavailable
37
SLIDE,RED,(HIFAX) Substituted by 5521321
5521104
$40.46
37
SLIDER,RH,(141 IN.)
5521224
Unavailable
37
SLIDE,BLACK,(HIFAX) Substituted by 5521320
5521086
Unavailable
38
NUT-LOCK(10)
7542122
$1.49
39
SCREW(10)
7512227
$3.19
40
BOLT(10)
7512659
$7.99
41
LOCK WASHER(10)
7553201
$3.99
42
RIVET,(50)
7621501
$2.39
43
COVER-RAIL TIP
5430627
$32.37
44
RIVET(50)
7621435
$1.49
45
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
