Description

Price

1

FLYWHEEL ASM. (Incl. 2-3)

3084282

Unavailable

2

BLOWER

3083560

Unavailable

3

BOLT&WASHER

3083153

Unavailable

4

PLATE ASM. (Incl. 5-13,18,19)

3084281

$347.60

5

Coil, Exciter

3083984

$89.03

6

Stator 1

3083991

$339.99

7

Grommet

3082969

Unavailable

8

HARNESS, WIRE

3083993

$66.39

9

COUPLER,MALE

3081513

$19.99

10

COUPLER

3083909

$23.99

11

SCREW(10)

3082365

$3.19

12

SCREW & WASHER

3083423

$3.19

13

SCREW&WASHER,(10)

3081260

$3.19

13

SCREW&WASHER,(10)

3081260

$3.19

14

CDI UNIT Substituted by 3084007

3084283

Unavailable

15

CAP SPARK PLUG,(10)

4020129

$9.70

16

NUT-RUBBER

3083240

Unavailable

17

SCREW&WASHER,(10)

3083784

$2.39

18

Clamp

3081296

Unavailable

19

Plate, Coil

3083987

$364.99

20

CRANKCASE ASM.

3084374

Unavailable

20

SCREW&WASHER ASM. Substituted by 3082175

3084371

Unavailable

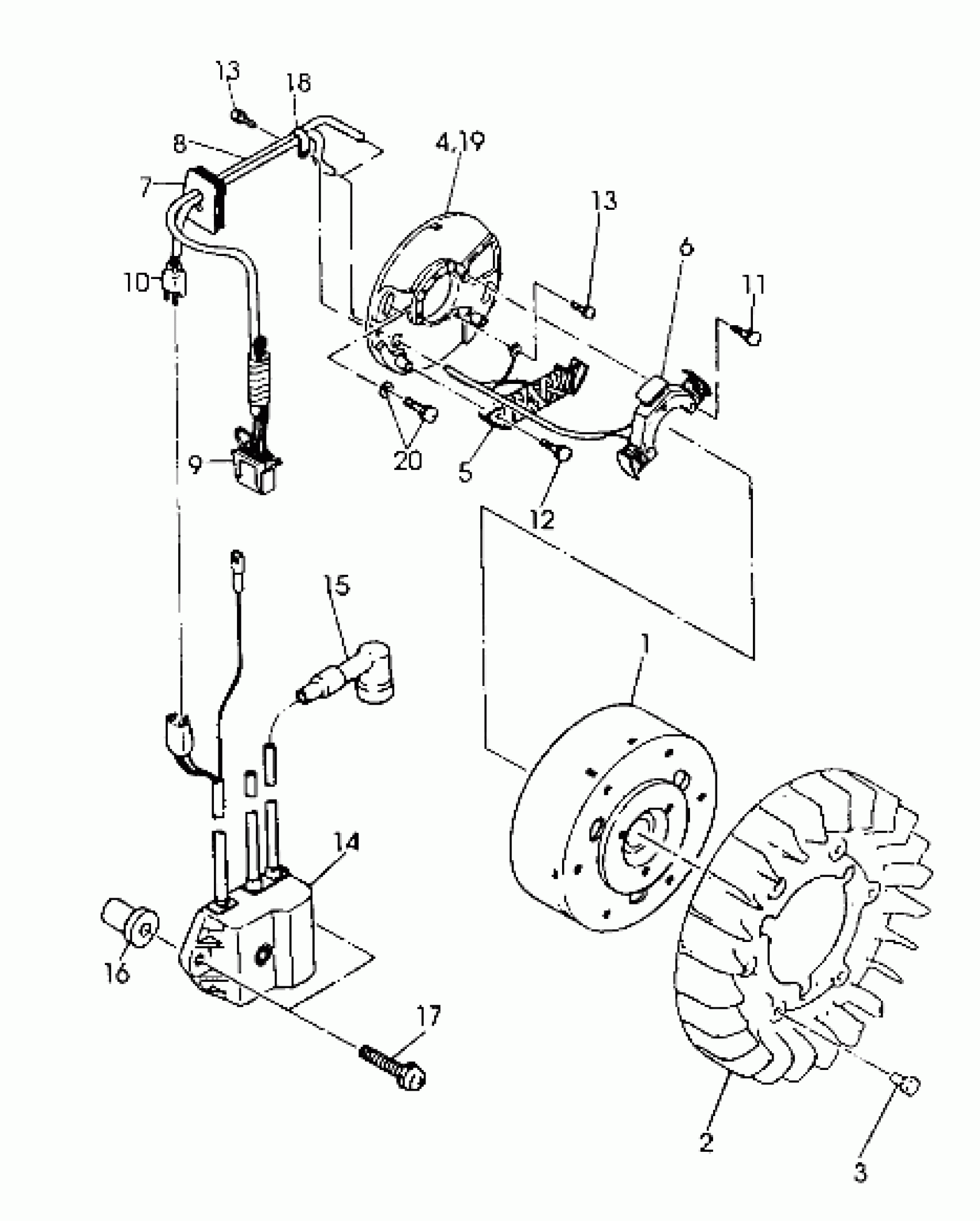

Polaris SPORT - 0920443 MAGNETO Sport/Sport GT (4921282128044A) Diagram

FLYWHEEL ASM. (Incl. 2-3)

BLOWER

BOLT&WASHER

PLATE ASM. (Incl. 5-13,18,19)

Coil, Exciter

Stator 1

Grommet

HARNESS, WIRE

COUPLER,MALE

COUPLER

SCREW(10)

SCREW & WASHER

SCREW&WASHER,(10)

SCREW&WASHER,(10)

CDI UNIT Substituted by 3084007

CAP SPARK PLUG,(10)

NUT-RUBBER

SCREW&WASHER,(10)

Clamp

Plate, Coil

CRANKCASE ASM.

SCREW&WASHER ASM. Substituted by 3082175
