ENGINE MOUNTING Sport/Sport GT (4921282128037A)

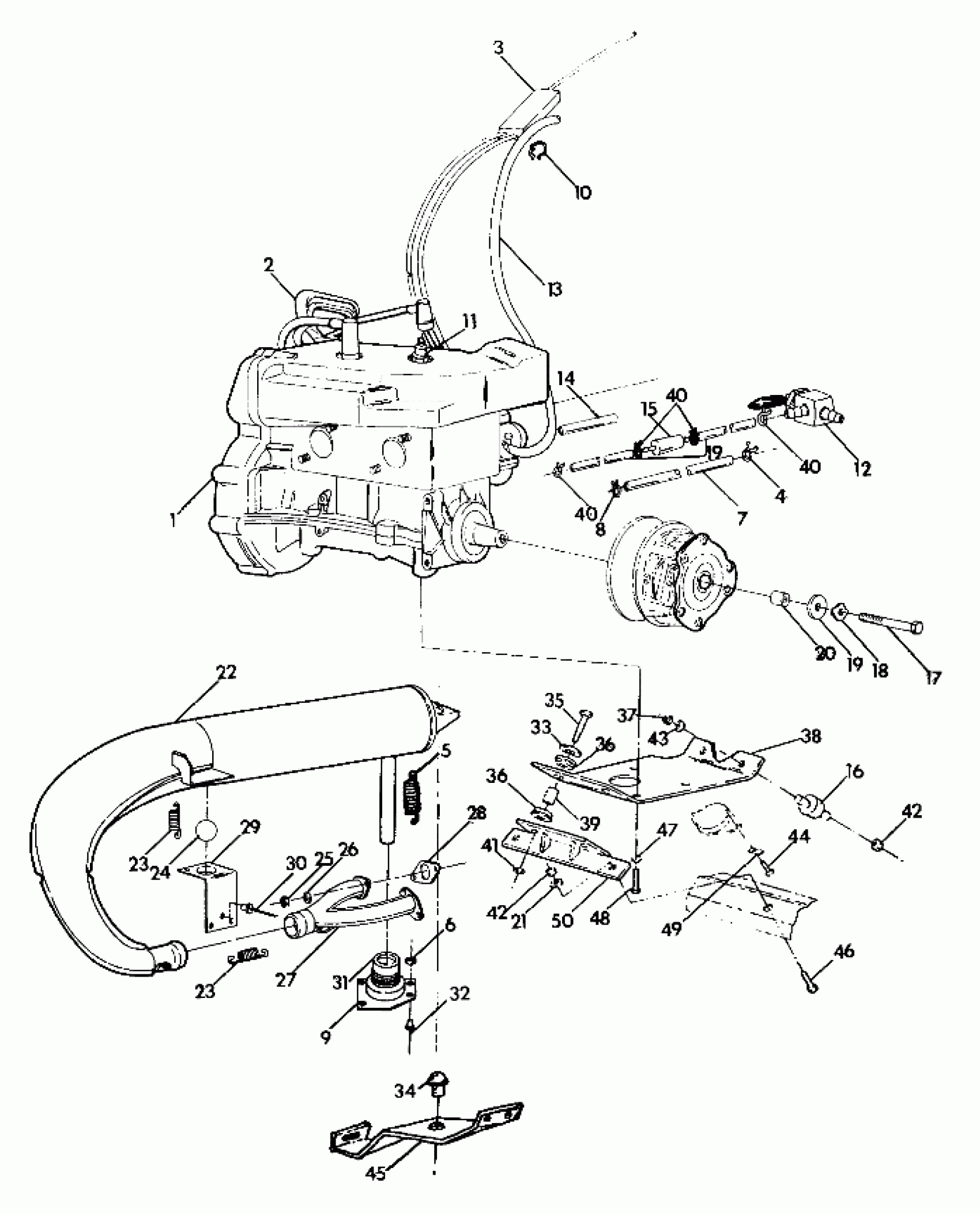

Polaris SPORT - 0920443 ENGINE MOUNTING Sport/Sport GT (4921282128037A) Diagram
#
1
ENG,EC44-3PM-01 [No Longer Available]
1211477
Unavailable
2
HANDLE-RECOIL
5430520
Unavailable
3
CABLE, THROTTLE (Sport)
7080289
$154.99
3
CABLE,THROTTLE W/OIL Substituted by 7080554 (Sport GT)
7080406
Unavailable
4
CLAMP-HOSE(10)
7080134
Unavailable
5
SPRING-EXHAUST(10)
7042029
$4.84
6
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
7
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
8
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
9
HAT, EXHAUST Substituted by 5432465
5431058
Unavailable
10
CLIP(10)
7080278
$2.63
11
SPARKPLUG (10)
3070156
$3.99
12
VALVE,FUEL SHUT-OFF
7052039
Unavailable
13
KIT-TANK VENT
2200190
Unavailable
14
FUEL LINE3/16ID-2FT. Substituted by 8450037-600
5521133
Unavailable
15
FILTER FUEL,(10)
2530008
$4.84
16
MOUNT
3110022
Unavailable
17
BOLT(10)
7512566
$30.79
18
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
19
WASHER-.440X1.25X.190 FL-Y
5210748
$3.99
19
WASHER-.440X1.25X.190 FL-Y
5210748
$3.99
20
BUSHING-.437 X.770 X.50
5430261
$7.19
21
WASHER(10) Substituted by 7555806
7555720
$0.79
22
MUFFLER, (440) Substituted by 1260563-029
1260563
Unavailable
23
SPRING, EXHAUST(10)
7042031
$5.65
23
SPRING, EXHAUST(10)
7042031
$5.65
24
SOCKET
5220439
Unavailable
24
KNOB, SHIFT
5410476
Unavailable
25
NUT(10)
3080285
Unavailable
26
WASHER LOCK ,(10)
3080530
$3.19
27
MANIFOLD
1260505-029
Unavailable
28
GASKET COMPL. (EXHAUST) Substituted by 3083770
3082068
Unavailable
29
SUPPORT,MUFFLER,FRONT [No Longer Available]
5222575
Unavailable
30
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
31
Boot, Exhaust
5410502
$24.27
32
POP RIVET(50)
7621418
$1.49
33
WASHER(10)
7555740
$1.59
34
DAMPNER, VIB.
5410467
$8.79
35
SCREW(10)
7512533
$1.75
36
MOUNT, ENGINE
5410390
Unavailable
36
MOUNT, ENGINE
5410390
Unavailable
37
NUT LOCK(10)
7542411
$3.19
38
PLATE,ENG.MT.
5222169
Unavailable
39
SPACER, (MTR.MT.)
5332778
Unavailable
40
HOSE CLAMP, RED
7080003
$1.49
40
HOSE CLAMP, RED
7080003
$1.49
40
HOSE CLAMP, RED
7080003
$1.49
41
NUT, LOCK,(10)
7542503
$10.39
42
NUT-LOCK(10)
7542439
$1.49
42
NUT-LOCK(10)
7542439
$1.49
44
BOLT-CARRIAGE(10)
7512263
$3.99
45
BRKT,BLK,R.MUFFLER Substituted by 5241267-067
5222146-067
Unavailable
46
BOLT(10) Substituted by 7512457
7512491
Unavailable
47
WASHER LOCK(10)
7553101
$3.99
48
BOLT(10)
7512539
$3.99
49
SPEED NUT(10)
7670021
$6.99
50
MOUNT,MOTOR,BLK.
1011587-067
Unavailable
