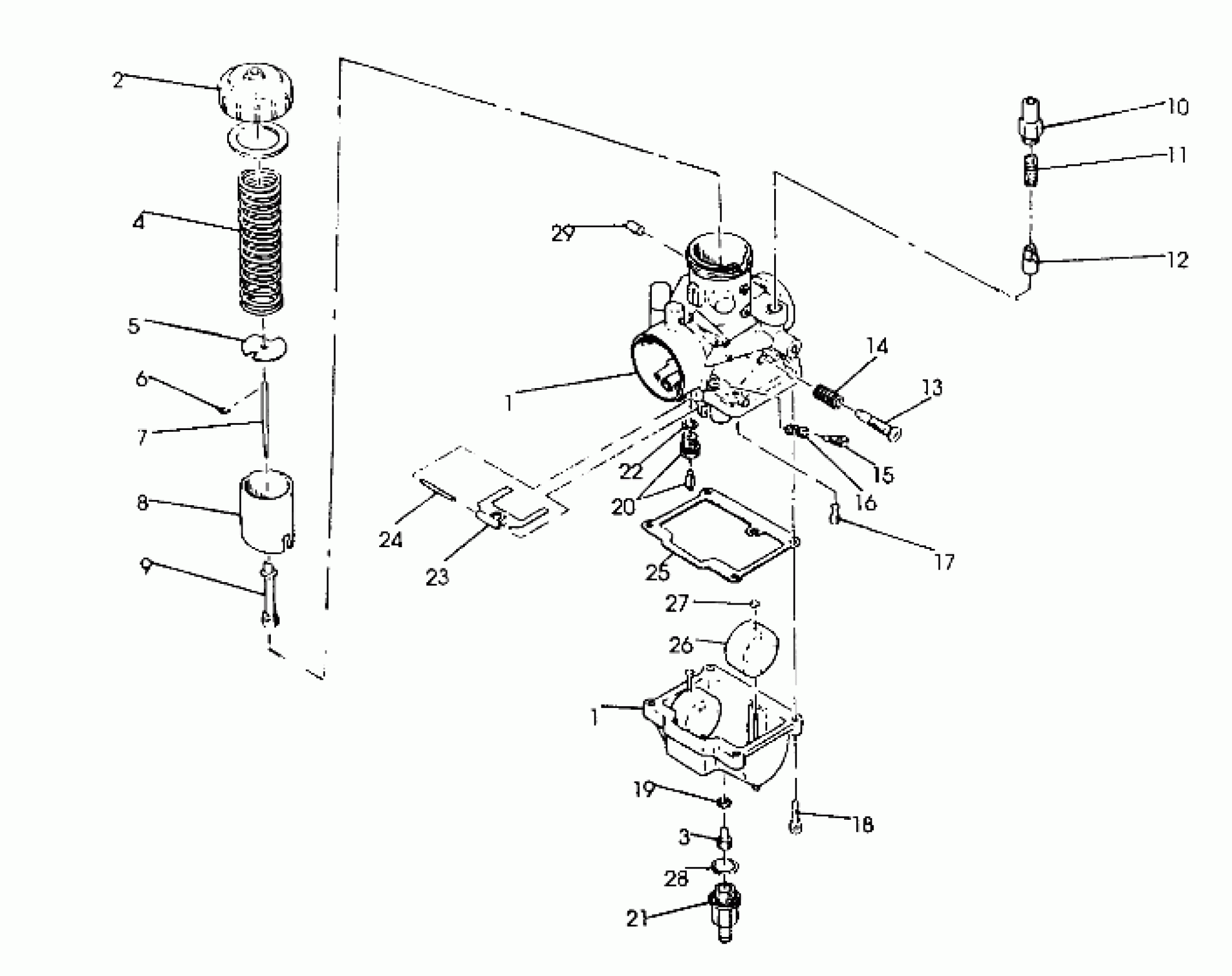

Polaris SPORT - 0920443 CARBURETOR Sport/Sport GT (4921282128048A) Diagram
#
Description
Price
1
CARBURETOR ASM.
3130459
Unavailable
1
CARBURETOR ASM.
3130459
Unavailable
2
TOP ASM Substituted by 3130184
3081886
Unavailable
3
JET,MAIN,HX.HD#180(10)
3130119
Unavailable
4
SPRING, THROTTLE
3130318
$20.22
5
PLATE
3130027
$9.70
6
E RING(10) Substituted by 3130508
3130003
Unavailable
7
JET NEEDLE
3130329
Unavailable
7
JET NEEDLE
3130329
Unavailable
8
VALVE,THROTTLE,(3.0) (3.0)
3130372
$52.60
9
JET,NEEDLE,P-2 (P-2)
3130460
Unavailable
10
HOLDER,GUIDE
3130199
$28.32
11
SPRING,PLUNGER
3130006
$8.89
12
PLUNGER ASM, STARTER
3130328
$32.37
13
SCREW,THROTTLE STOP
3130009
$19.99
14
SPRING,THROTTLE ADJ.
3130010
$8.89
15
SCREW,AIR
3130011
$19.99
16
SPRING,AIR ADJUST
3130012
$8.89
17
JET,PILOT,#35(10)
3130066
$8.89
18
SCREW & WASHER(10)
3130025
$3.19
19
WASHER (10)
3130014
$1.59
20
VALVE,NEEDLE Substituted by 3131146 (1.5)
3130016
$48.56
21
FITTING,SEDIMENT Substituted by 3130573
5020476
$10.63
22
PACKING(10)
3130017
$4.03
23
ARM,FLOAT
3130018
$24.27
24
PIN, FLOAT Substituted by 3130235
3130240
$8.89
25
PACKING,FLOAT CHAMBER
3130020
$16.17
26
FLOAT ASM.
3130430
$43.56
28
O RING Substituted by 3130239
3082472
Unavailable
