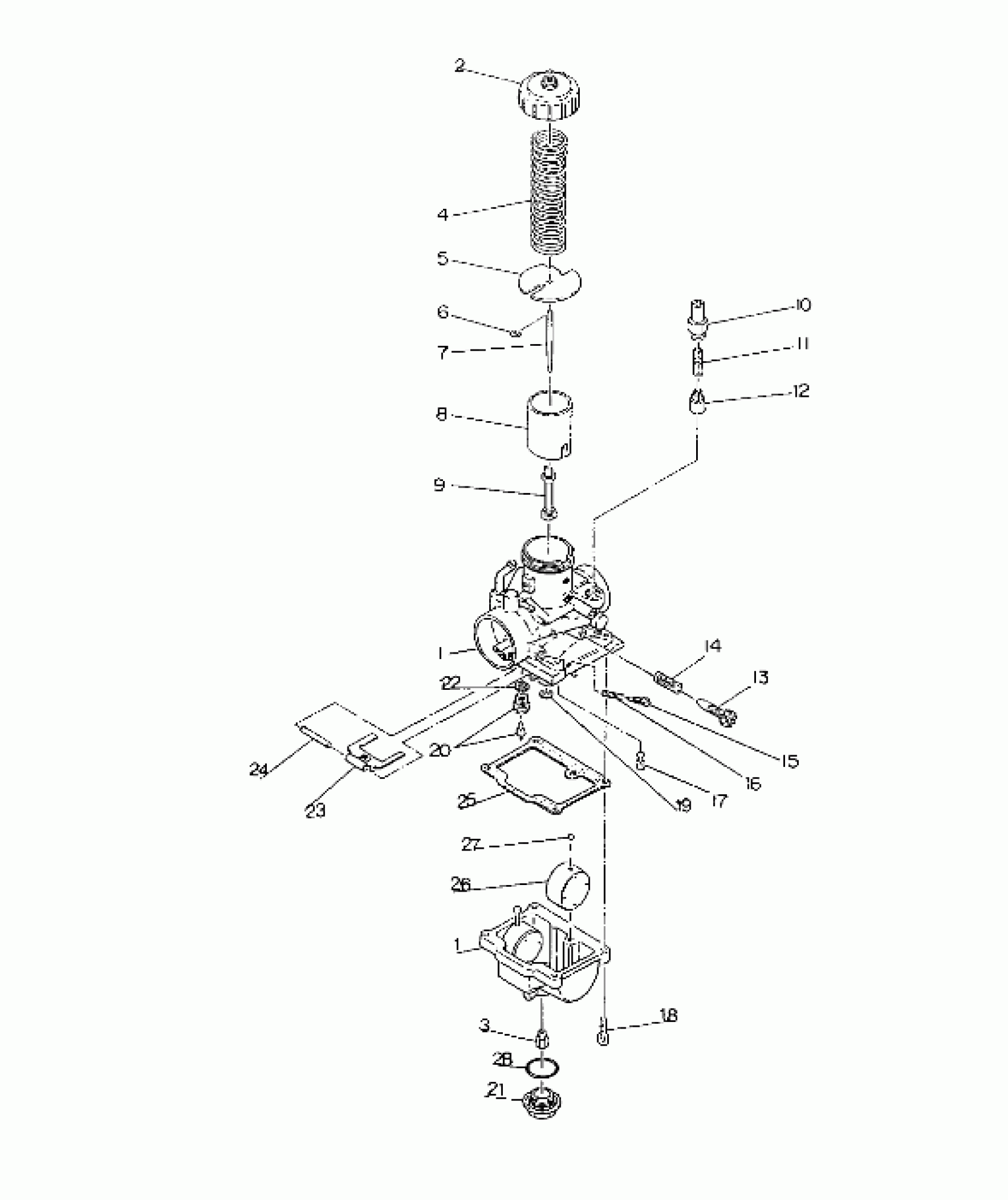

Polaris SPORT - 0910443 CARBURETOR SPORT & SPORT GT (4919271927036A) Diagram

#

Description
Price

1

CARBURETOR (Incl. 2-31)

3130450

Unavailable

1

CARBURETOR (Incl. 2-31)

3130450

Unavailable

2

TOP,MIX CHAMBER

3130060

Unavailable

3

JET,MAIN,HX.HD.#155

3130114

Unavailable

4

SPRING,THROTTLE

3130354

$28.32

5

PLATE,THROTTLE

3130002

$20.22

6

E RING(10) Substituted by 3130508

3130003

Unavailable

7

JET NEEDLE Substituted by 3130155

3130356

$24.27

8

VALVE,THROTTLE,3.0 [No Longer Available] (3.0)

3130452

Unavailable

9

NEEDLE JET, O-8 (0-8)

3130453

$23.99

10

Cap, Plunger

3130359

$14.56

11

SPRING,PLUNGER

3130006

$8.89

12

PLUNGER ASM. Substituted by 3130328

3130440

Unavailable

13

Screw, Throttle Stop

3130324

$19.84

14

SPRING,THROTTLE ADJ.

3130010

$8.89

15

SCREW, AIR Substituted by 3130011

3130451

Unavailable

16

SPRING,AIR ADJUST

3130012

$8.89

17

JET,PILOT,#35(10)

3130066

$8.89

18

SCREW & WASHER(10)

3130025

$3.19

19

WASHER (10)

3130014

$1.59

20

VALVE,NEEDLE Substituted by 3131146 (1.5)

3130016

$48.56

21

Screw, Guide

3130432

$27.99

22

PACKING(10)

3130017

$4.03

23

ARM,FLOAT

3130018

$24.27

24

PIN,FLOAT

3130043

Unavailable

25

GASKET Substituted by 3130020

3130438

Unavailable

26

FLOAT ASM

3130021

$40.46

27

CAP Substituted by 3130237

3130431

Unavailable

28

O-RING Substituted by 3130239

3130433

Unavailable
