BRAKE AND CHAINCASE Sport and Sport GT (4919271927015A)

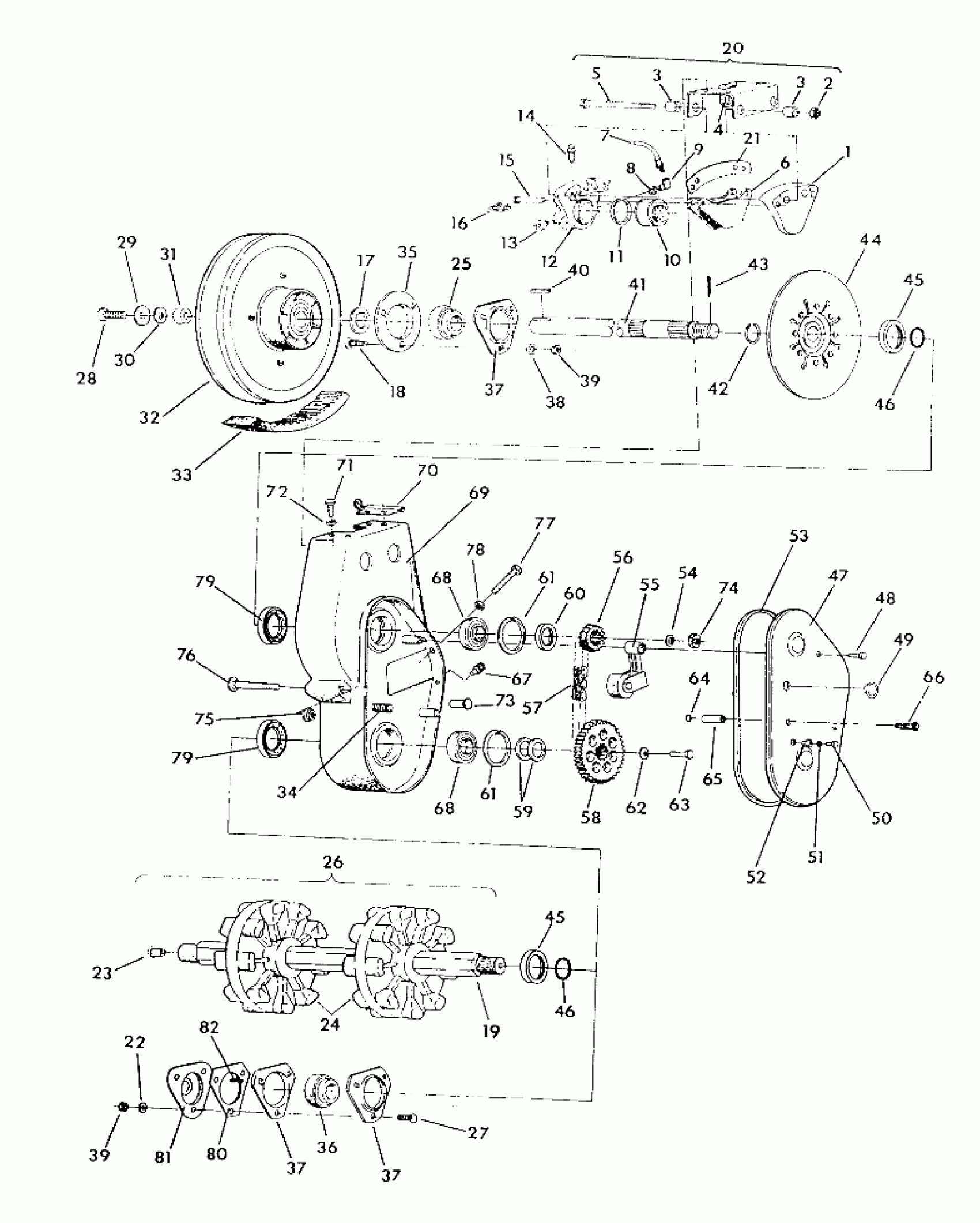

Polaris SPORT - 0910443 BRAKE AND CHAINCASE Sport and Sport GT (4919271927015A) Diagram
#
1
CASTING-CARRIER
1930570
Unavailable
2
NUT
1930558
Unavailable
3
BUSHING
1930559
Unavailable
3
BUSHING
1930559
Unavailable
4
BRACKET
1930560
Unavailable
5
BOLT-BRIDGE
1930561
Unavailable
6
PAD, BRAKE
1930569
Unavailable
7
LINE,BRAKE
1930692
Unavailable
7
LINE, BRAKE
1930672
Unavailable
8
CONNECTOR
5020371
Unavailable
9
ELBOW-FEMALE
7052034
$5.19
10
PISTON
1930568
Unavailable
11
SEAL-PISTON
1930567
Unavailable
12
CALIPER ASM, BRAKE Substituted by 1930556
1930566
Unavailable
13
SWITCH-STOPLIGHT
4110046
Unavailable
14
SCREW-BLEEDER
1930564
Unavailable
15
PIN,PAD RETAINING
1930563
Unavailable
16
CLIP-SPRING
1930562
Unavailable
17
WASHER SPECIAL(10)
7556509
$1.59
18
BOLT(10) Substituted by 7512377
7512394
Unavailable
19
SHAFT, DRIVE Substituted by 6230067
5130799
Unavailable
20
CASTING-CARRIER
1930570
Unavailable
21
SPACER
5210999
Unavailable
22
WASHER(10)
7555725
Unavailable
23
BUSHING METAL SPEEDO
3280019
$11.99
24
SPROCKET, 9T
5430571
Unavailable
25
BEARING,1 IN.(GREASEABLE)
3514511
Unavailable
26
DRIVESHAFT ASM. Substituted by 1590249
1590224
Unavailable
27
BOLT(10)
7512331
$3.99
28
BOLT(10)
7515301
Unavailable
29
WASHER FLAT(10)
7555701
$3.99
30
WASHER(10)
7555734
$1.49
31
SPACER
5020291
Unavailable
32
CLUTCH, DRIVEN
1322141
Unavailable
33
BELT, DRIVE(5)
3211054
$79.99
34
BOLT(10)
7515477
$34.99
35
FLANGETTE,W/GREASE GROOVE Substituted by 5240252
5222581
Unavailable
36
BEARING
3514501
Unavailable
37
FLANGETTE Substituted by 5222751
5222591
Unavailable
37
FLANGETTE Substituted by 5222751
5222591
Unavailable
37
FLANGETTE Substituted by 5222751
5222591
Unavailable
38
Desc not available [No Longer Available]
7558401
Unavailable
39
NUT-5/16-18 NYLOK-Y
7542324
$1.49
39
NUT-5/16-18 NYLOK-Y
7542324
$1.49
40
KEY,(10)
7727003
Unavailable
41
SHAFT, INPUT Substituted by 1332134-067
5130786
Unavailable
42
RING, RETAINING(10)
7710422
$3.99
43
COTTER PIN(10)
7661401
$1.49
44
DISC BRAKE ASM Substituted by 1910086 (Splined)
1910064
Unavailable
45
SLEEVE, SEAL
5020588
$23.99
45
SLEEVE, SEAL
5020588
$23.99
46
O RING,(10)
5410613
$1.99
46
O RING,(10)
5410613
$1.99
47
COVER,CHAINCASE
5222579
Unavailable
48
BOLT(10)
7512246
Unavailable
49
PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426
5410012
Unavailable
50
SCREW(10)
7511909
$3.99
51
WASHER, FLAT(10)
7558201
$5.79
52
NUT-WELL(10)
7541918
Unavailable
53
GASKET-CHAINCASE
5410277
$24.99
54
WASHER, SLOTTED(10)
7571620
$7.19
55
TIGHTENER ASM. Substituted by 1332213
1332078
$159.99
56
SPROCKET 16 T
3221032
Unavailable
57
CHAIN 64 PITCH
3224023
Unavailable
57
CHAIN,62P,SILENT
3224026
Unavailable
58
SPROCKET 35 T
3222036
$53.59
58
SPROCKET 39 T
3222034
Unavailable
60
SPACER, SPROCKET
5010270
Unavailable
61
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
61
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
62
WASHER(10)
7571618
$6.39
63
SCREW(10)
7515350
$3.97
64
O RING
5410565
Unavailable
65
STAND-OFF,C/C COVER
5333033
Unavailable
66
BOLT, S.S.(10)
7512293
Unavailable
67
PLUG,PIPE
7052045
$12.79
68
BEARING,CHAINCASE **
3514306
Unavailable
68
BEARING,CHAINCASE **
3514306
Unavailable
69
CHAINCASE
5130795
Unavailable
70
RETAINER, RECOIL Substituted by 1011593-067
1011593
Unavailable
71
BOLT(10)
7512240
$3.99
72
LOCK WASHER(10)
7552801
$1.59
73
CAP, STUD COVER
5020569
Unavailable
74
NUT, SLOTTED(10)
7542810
$3.19
75
NUT(10)
7542423
$3.99
76
BOLT(10)
7515428
$4.79
77
SCREW(10)
7512470
Unavailable
78
NUT(10)
7542404
$1.59
79
SEAL-OIL
3610030
$20.22
79
SEAL-OIL
3610030
$20.22
80
GASKET,DRIVE ADAPTOR,(10)
5830012
$2.41
81
DISC BRAKE ASM ** Red seal side of bearing to be positioned toward brake disc side of chaincase. (Away from chaincase cover)
1332091
Unavailable
81
DISC ASM, BRAKE
1910086
Unavailable
81
DRIVE, ANGLE Substituted by 3280116
3280016
Unavailable
