CHASSIS AND SEAT Sport Updated 10/88 (4915451545001A)

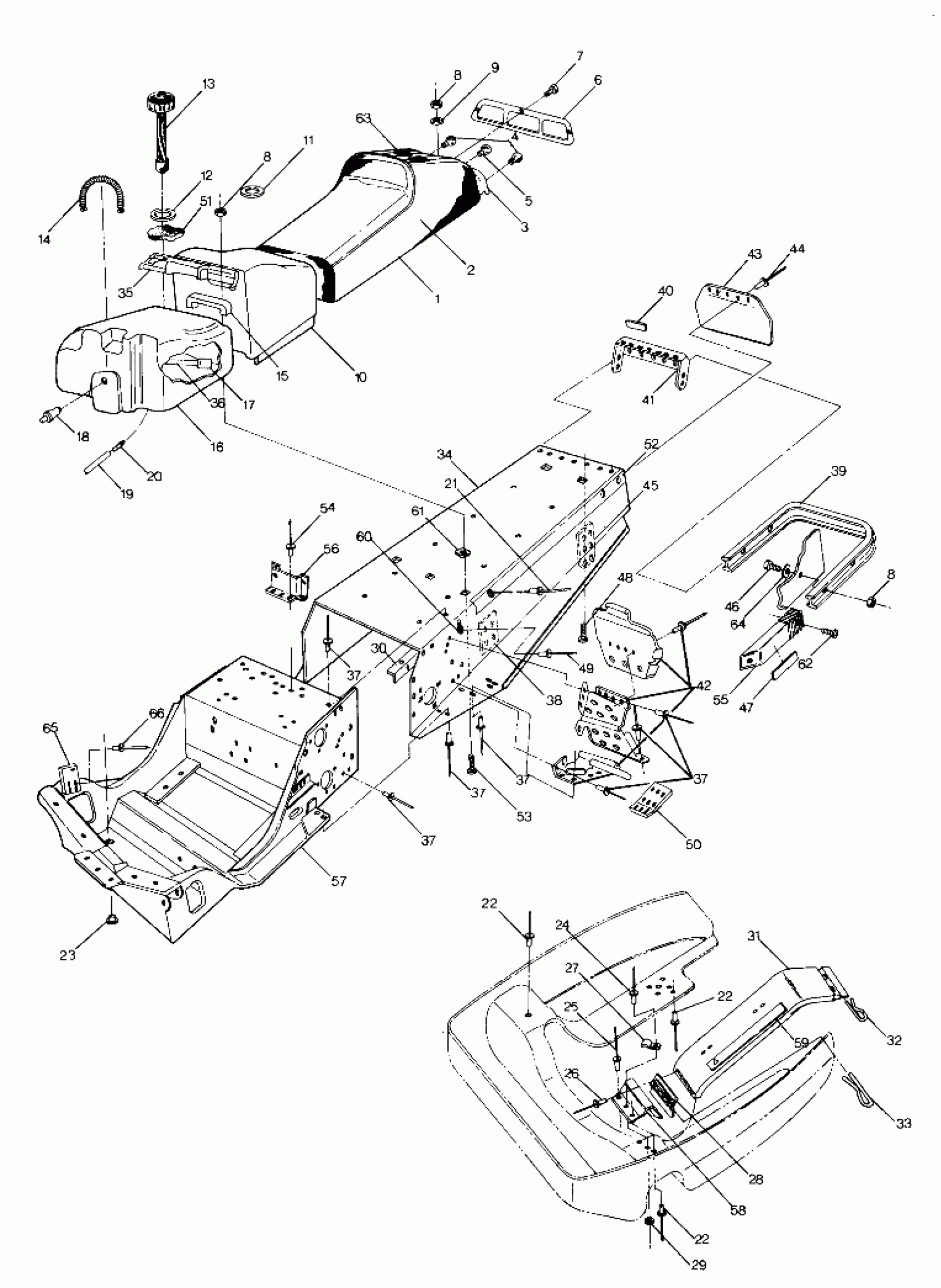

Polaris SPORT - 0890433 CHASSIS AND SEAT Sport Updated 10/88 (4915451545001A) Diagram
#
1
SEAT ASM,(SPORT'89) Substituted by 2200747 (Incl. 2-7, 63)
2681372
Unavailable
2
COVER,SEAT,2PC,STD,BLK. Substituted by 2200738
2681371
Unavailable
3
HOUSING,TAILLIGHT
5430425
Unavailable
4
BULB TAILLIGHT(10)
4030015
$4.03
5
BULB, BRAKELIGHT
4030019
Unavailable
6
LENS,TAILLIGHT
5430423
Unavailable
7
SCREW(10)
7511840
Unavailable
8
NUT-LOCK(10)
7542122
$1.49
8
NUT-LOCK(10)
7542122
$1.49
8
NUT-LOCK(10)
7542122
$1.49
9
WASHER(10)
7558221
$2.39
10
COVER,TANK(SPORT'89) [No Longer Available]
2681370
Unavailable
11
GROMMET-GAS TANK
5430575
Unavailable
12
GASKET-GAS CAP Substituted by 5810513
5810142
Unavailable
13
GAUGE,GAS Substituted by 2511246
2511149
Unavailable
14
SPRING,TANK,(10)
7042020
$13.75
15
CUSHION,TANK H.D.
5420126
Unavailable
16
TANK,GAS
2511150
Unavailable
17
FUELPICKUP,W/STRAINER
7052037
$12.94
18
FITTING - OUTLET(10)
7052023
$24.99
19
KIT-TANK VENT
2200190
Unavailable
20
VENT FITTING,TANK Substituted by 5430579
5430669
Unavailable
21
RIVET Substituted by 7661812
7661818
Unavailable
22
RIVET(50)
7621457
$1.49
22
RIVET(50)
7621457
$1.49
22
RIVET(50)
7621457
$1.49
23
PLUG
7080288
Unavailable
24
POP RIVET(50)
7621402
$1.49
25
RIVET(50)
7621452
$1.49
26
RIVET, POP(50)
7621330
$1.49
27
CLIP, WIRING,(10) Substituted by 7080665
4020035
Unavailable
28
HINGE
5211047
$3.49
29
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
30
TUNNEL,REINFORCEMENT [No Longer Available]
5220395
Unavailable
31
GUARD,CLUTCH Substituted by 5240965
5230118
Unavailable
32
PIN,RETAINING,(10)
7080216
$9.70
33
PIN, FRONT
7080311
Unavailable
34
TUNNEL, (SPORT)
1011662
Unavailable
35
STRAP,GAS TANK Substituted by 5222330-067
5221722
Unavailable
36
GAS LINE, (FT.) [Cannot Purchase as Assembly]
8450003
Unavailable
37
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
37
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
37
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
37
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
37
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
38
BRKT. Substituted by 5220542-067
5220542
Unavailable
39
BUMPER, REAR Substituted by 5224334-067
5224334
Unavailable
40
DECAL, TRACK Substituted by 7072872 (Sport Only)
7072132
Unavailable
40
DECAL, TRACK [No Longer Available] (Sport GT Only)
7072090
Unavailable
41
PANEL,TUNNEL,BACK Substituted by 5220478-067
5220478
Unavailable
42
FOOTREST ASM,LH
2200250
Unavailable
42
FOOTREST ASM,RH
2200254
Unavailable
43
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
44
POP RIVET(50)
7621418
$1.49
45
BRKT,R.SUSP,RH MTG. Substituted by 1011750-067
1011667
Unavailable
45
BRKT,R.SUSP,LH MTG. Substituted by 1011749-067
1011666
Unavailable
46
BOLT(10)
7512240
$3.99
47
REFLECTOR RED
2670070
$9.91
48
BOLT(10)
7512103
$3.19
49
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
50
PLATE,TUNNEL,LH
5220634
Unavailable
50
PLATE,TUNNEL,RH
5220635
Unavailable
51
FOAM, FILLER
5810201
Unavailable
52
DECAL(47.5'')TUNNEL [No Longer Available]
7072078
Unavailable
53
BOLT(10)
7512193
$2.39
54
RIVET(50)
7621301
$3.99
55
CAP, BUMPER Substituted by 5430930-070
5430930
Unavailable
56
BRACKET Substituted by 5221932-067
5221932
Unavailable
57
BULKHEAD,(SPORT>)
1011615
Unavailable
58
BRACKET, HINGE Substituted by 5241437
5220406
Unavailable
59
DECAL, WARNING [No Longer Available]
7072153
Unavailable
60
SNAP-MALE(10)
7080227
Unavailable
61
SPEED NUT(10)
7670021
$6.99
62
SCREW-SEMS(10)
7511848
$3.99
63
BUCKLE&STRAP
2681290
$4.78
64
WASHER(10)
7558301
$1.49
65
SUPPORT, MUFFLER Substituted by 1011601-067
1011601
Unavailable
66
RIVET(50)
7621429
$1.49
66
SEAT ASM,(2-UP)SPORT GT Substituted by 2200749 (GT)
2681403
Unavailable
66
COVER,SEAT(G.T.) Substituted by 2200740 (GT)
2681404
Unavailable
66
COVER,TANK(G.T.) Substituted by 2200740 (GT)
2681405
Unavailable
