TUNNEL ASSEMBLY RXL TOURING 0950869 (4928982898A006)

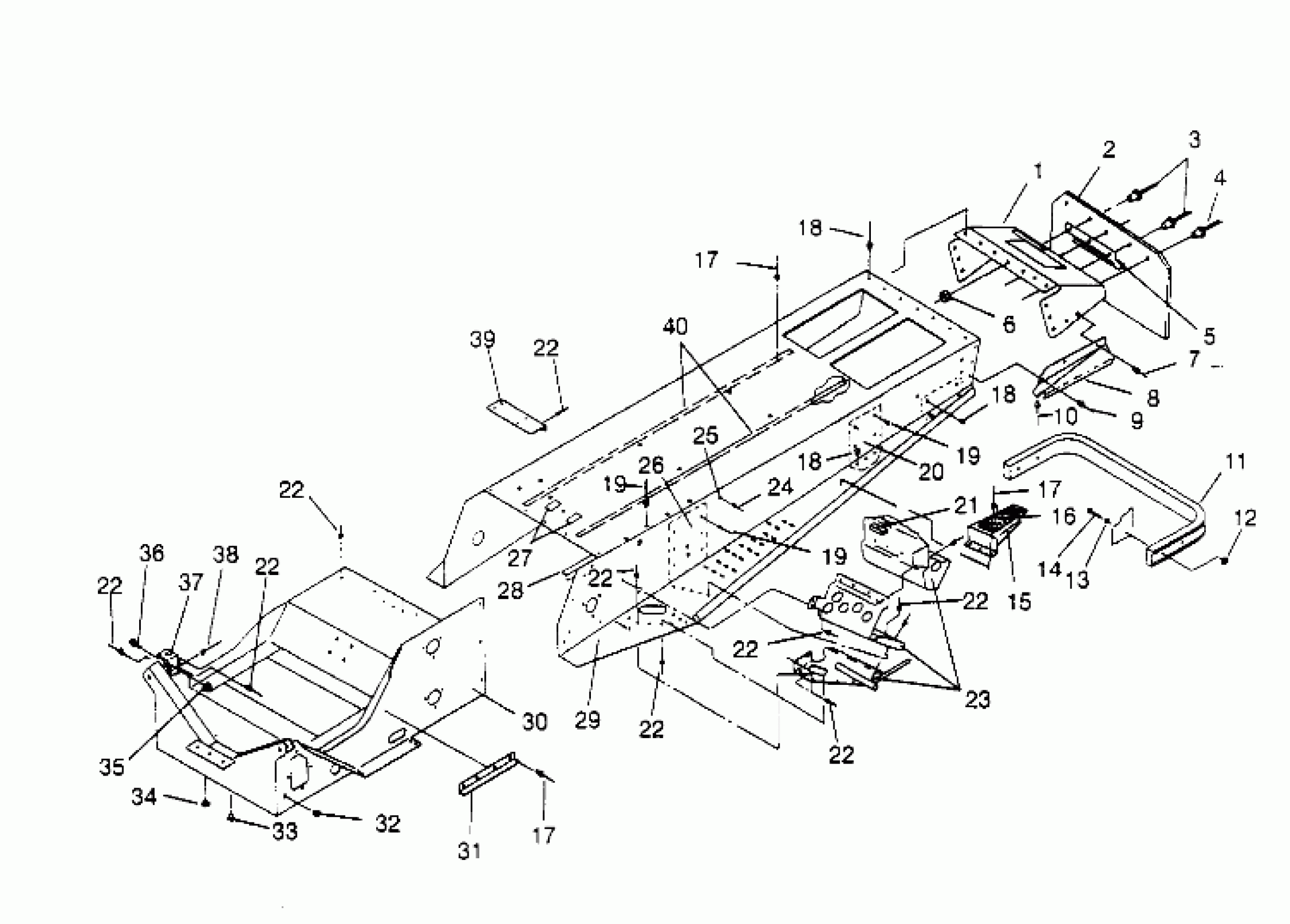

Polaris RXL TOURING - 0950869 TUNNEL ASSEMBLY RXL TOURING 0950869 (4928982898A006) Diagram
#
1
CLOSE-OFF ASM,REAR,BLK.
1012232-067
Unavailable
2
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
3
RIVET(50)
7661641
Unavailable
4
POP RIVET(50)
7621418
$1.49
5
RETAINER, FLAP Substituted by 5241874-067
5222659-067
Unavailable
6
NUT(10)
7541925
$1.49
7
RIVET(50)
7621472
$1.49
8
SKIRT,LH,SNOW,BLK.
5431627-070
$26.98
8
SKIRT,RH,SNOW,BLK.
5431645-070
$31.35
9
RIVET,3/16X.402(50)
7621432
$1.49
10
RIVET,(50)
7621336
$1.59
11
BUMPER,R.SKS EFI
5224349-067
Unavailable
12
NUT-LOCK(10)
7542122
$1.49
13
WASHER(10)
7558301
$1.49
14
BOLT(10)
7512240
$3.99
15
FOOTREST,LH R,BLK.
5220893-067
Unavailable
15
FOOTREST,RH R,BLK.
5220894-067
$32.15
16
PAD,LH FOOT SAFETY
5830007
$7.89
16
PAD,RH FOOT SAFETY
5830008
$4.92
17
RIVET-3/16-.090-.290
7661637
$1.49
17
RIVET-3/16-.090-.290
7661637
$1.49
17
RIVET-3/16-.090-.290
7661637
$1.49
18
RIVET ,(50)
7661829
Unavailable
18
RIVET ,(50)
7661829
Unavailable
18
RIVET ,(50)
7661829
Unavailable
19
RIVET,(50)
7661825
$1.49
19
RIVET,(50)
7661825
$1.49
19
RIVET,(50)
7661825
$1.49
20
BRKT,RH.REAR SUSP.
1011906-067
Unavailable
20
BRKT,LH.REAR SUSP
1011905-067
Unavailable
21
EXTRUSION,CLUTCHGUARD
5521238
$6.46
22
RIVET,INTERLOCK,B(50)
7661638
$1.49
22
RIVET,INTERLOCK,B(50)
7661638
$1.49
22
RIVET,INTERLOCK,B(50)
7661638
$1.49
22
RIVET,INTERLOCK,B(50)
7661638
$1.49
22
RIVET,INTERLOCK,B(50)
7661638
$1.49
22
RIVET,INTERLOCK,B(50)
7661638
$1.49
22
RIVET,INTERLOCK,B(50)
7661638
$1.49
22
RIVET,INTERLOCK,B(50)
7661638
$1.49
22
RIVET,INTERLOCK,B(50)
7661638
$1.49
23
FOOTREST ASM, LH
1011861
Unavailable
23
FOOTREST ASM, RH
1011862
Unavailable
24
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
25
SNAP-MALE(10)
7080227
Unavailable
26
BRKT,F.SUSP.,BLK.
5211323-067
$29.99
27
DECAL,TOP,TUNNEL STRIP
7073978
Unavailable
28
BRACE,TUNNEL REINF. Substituted by 5240242
5240265
Unavailable
29
TUNNEL ASM,ROTATED
1012274
$366.65
30
DESC NOT_AVAILABLE
1012275
Unavailable
31
GUARD
5223789
Unavailable
32
PLUG, HOLE(10)
7080416
$5.65
33
PLUG-HOLE
7080398
$4.84
34
BUSHING,OPEN/CLOSE(10)
7080399
$2.39
35
NUT LOCK(10)
7542321
$1.49
36
SCREW(10)
7512307
$3.99
37
SUPPORT,MUFFLER,BLK. Substituted by 5242798-067
1011831-067
Unavailable
38
RIVET(50)
7621452
$1.49
39
BRKT, TOOL BOX
5220973
Unavailable
40
MOUNT,WEAR STRIP
5131009
Unavailable
