SUSPENSION ASSEMBLY RXL TOURING 0950869 (4928982898B011)

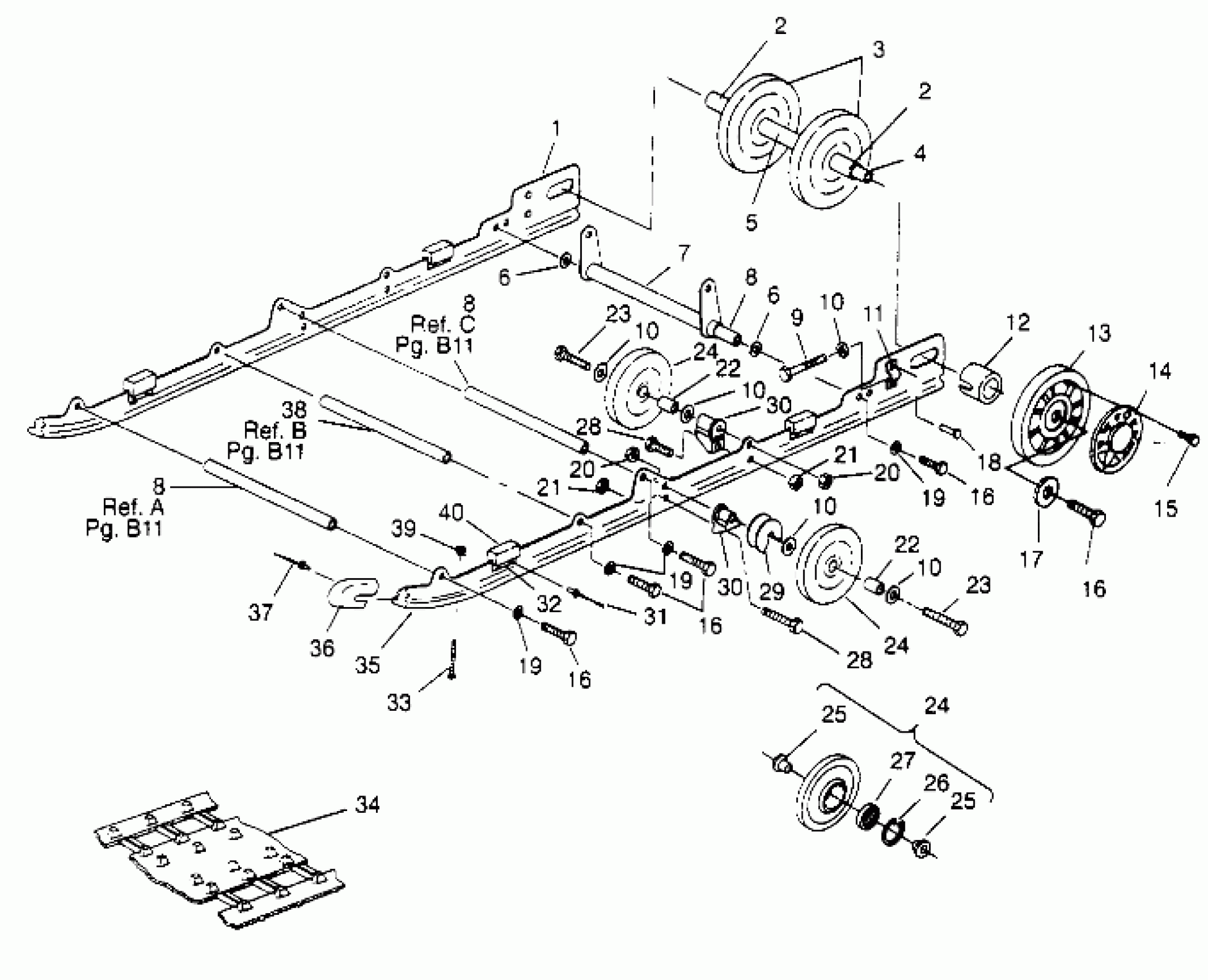

Polaris RXL TOURING - 0950869 SUSPENSION ASSEMBLY RXL TOURING 0950869 (4928982898B011) Diagram
#
1
RAIL ASM,LH,(SKS,XC-100) (Incl. 11, 32, 36, 40)
1540802
Unavailable
1
RAIL ASM,RH,(SKS,XC-100) (Incl. 11, 32, 36, 40)
1540803
$319.99
2
SPACER INNER IDLER
5010169
Unavailable
2
SPACER INNER IDLER
5010169
Unavailable
3
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
4
SHAFT,IDLER
5020722
Unavailable
5
SPACER CTR IDLER
5010168
Unavailable
6
MACHINERY BUSHING(10)
7556301
$3.19
6
MACHINERY BUSHING(10)
7556301
$3.19
7
ARM, REAR PIVOT
1540677-067
Unavailable
8
SHAFT,PIVOT ARM (Ref. A, C) (See Pg. A22)
5020723
$29.99
8
SHAFT,PIVOT ARM (Ref. A, C) (See Pg. A22)
5020723
$29.99
8
SHAFT,PIVOT ARM (Ref. A, C) (See Pg. A22)
5020723
$29.99
9
BOLT, ADJUSTER(10)
7515455
$29.99
10
NUT(10)
7542440
Unavailable
10
NUT(10)
7542440
Unavailable
10
NUT(10)
7542440
Unavailable
10
NUT(10)
7542440
Unavailable
10
NUT(10)
7542440
Unavailable
11
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
12
SPACER-IDLER-OUTER
5332641
Unavailable
13
WHEEL,OUTER,W/HOLES Substituted by 1594021
1594035
Unavailable
14
COVER,IDLER WHL. (Silver)
5220442
$25.59
15
SCREW,WHL.COVER(SE)(10)
7511853
Unavailable
16
BOLT(10)
7515526
$1.19
16
BOLT(10)
7515526
$1.19
16
BOLT(10)
7515526
$1.19
16
BOLT(10)
7515526
$1.19
17
WASHER(10) Substituted by 7556130
7571629
Unavailable
18
RIVET,(50)
7621501
$2.39
19
WASHER(10)
7552603
$1.49
19
WASHER(10)
7552603
$1.49
19
WASHER(10)
7552603
$1.49
20
NUT, NYLOCK(10)
7542525
$4.79
20
NUT, NYLOCK(10)
7542525
$4.79
21
NUT-LOCK(10)
7542439
$1.49
21
NUT-LOCK(10)
7542439
$1.49
22
SPACER, WHEEL
5333116
$7.99
22
SPACER, WHEEL
5333116
$7.99
23
BOLT(10)
7512538
$6.39
23
BOLT(10)
7512538
$6.39
24
WHEEL, IDLER (Incl. 25-27)
1543018
$56.65
24
WHEEL, IDLER (Incl. 25-27)
1543018
$56.65
24
WHEEL, IDLER (Incl. 25-27)
1543018
$56.65
25
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
25
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
26
RET.RING-TRUARC
7718407
$4.79
27
BEARING,CHAINCASE
3514305
$19.99
28
BOLT(10)
7512404
$3.99
28
BOLT(10)
7512404
$3.99
29
ROLLER, SPRING
5431366
$10.51
30
SPACER
5630399
$11.99
30
SPACER
5630399
$11.99
31
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
32
REINF., BUMPER
5222629
$13.75
33
SCREW(10)
7512227
$3.19
34
TRACK,133",CLIP
5410823
Unavailable
35
SLIDER,BLACK(2)
5521320
Unavailable
36
COVER-RAIL TIP
5430627
$32.37
37
RIVET(50)
7621435
$1.49
38
SHAFT,PIVOT ARM (Ref. C) (See Pg. A22)
5020724
$29.99
39
NUT-LOCK(10)
7542122
$1.49
40
BUMPER, RAIL
5810554
$7.27
