SEAT and GAS TANK ASSEMBLY RXL TOURING 0950869 (4928982898A008)

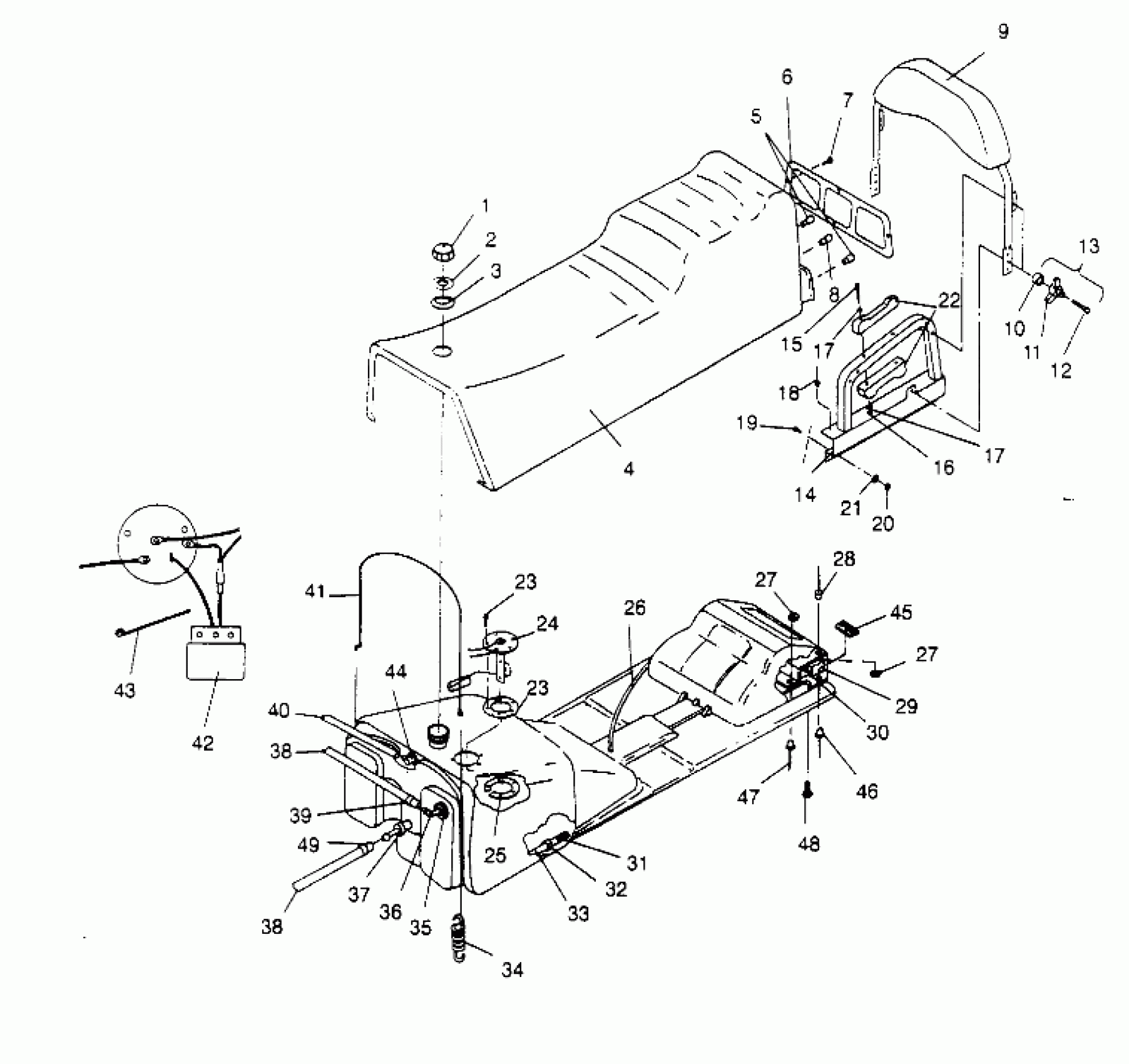

Polaris RXL TOURING - 0950869 SEAT and GAS TANK ASSEMBLY RXL TOURING 0950869 (4928982898A008) Diagram
#
1
CAP,FUELTANK,W/GASKET
2511226
Unavailable
2
GASKET, GAS CAP
5810513
$8.89
3
GROMMET,FUELTANK
5410842
Unavailable
4
SEAT ASM, 2-UP (Incl. 4-8, 23-35, 37, 44)
2681812
Unavailable
4
COVER,SEAT,2-UP
2681813
Unavailable
5
BULB,TAILLIGHT(10)
4030024
$4.84
6
LENS,TAILLIGHT
5430423
Unavailable
7
SCREW(10)
7511840
Unavailable
8
Bulb, Brakelight
4030045
Unavailable
9
COVER,BACKREST ASM. Substituted by 2681265
2681790
Unavailable
9
BACKREST ASM. Substituted by 2681356
2681789
Unavailable
10
SPACER
5431285
Unavailable
11
Knob, Backrest
5630386-067
$20.22
12
SCREW(10)
7515352
Unavailable
13
KNOB ASM,BACKREST
2670130
Unavailable
14
BAR,GRAB,LH,BLK.
1011729-067
Unavailable
14
BAR,GRAB,RH,BLK.
1011730-067
Unavailable
15
SCREW(10)
7510504
$6.76
16
NUT, LOCK(10) Substituted by 7541925
7541929
Unavailable
17
WASHER(10)
7555783
$3.99
17
WASHER(10)
7555783
$3.99
18
RIVET,INTERLOCK,B(50)
7661638
$1.49
19
BOLT(10) Substituted by 7512325
7515363
Unavailable
20
NUT, NYLOK(10)
7542327
$4.79
21
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
22
GRIP, HAND Substituted by 5433383
5431015
$19.68
23
HDWE.PKG,SEND.UNIT
2410012
Unavailable
23
HDWE.PKG,SEND.UNIT
2410012
Unavailable
24
SEND.UNIT,W/HDWE.PKG.
2410015
Unavailable
25
MTG.FLANGE,FUELTANK Substituted by 5244067
5211308
Unavailable
26
HARNESS,TAILLIGHT
2460398
Unavailable
27
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
27
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
28
RIVET, BLIND(50)
7621467
$1.49
29
HOUSING,TAILLIGHT Substituted by 5433341
5431545
Unavailable
30
COVER,T/L PROTECTOR
5431436
$21.43
31
PICKUP,FUEL,W/STRAINER
7052081
Unavailable
32
RING, COMPRESSION(10)
7080402
$1.60
33
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
34
SPRING-EXHAUST(10)
7042029
$4.84
35
GROMMET-TANK FITTING(10)
7052028
$6.39
36
FITTING,TANK OUTLET(5/16)
7052059
Unavailable
37
FITTING - OUTLET(10)
7052023
$24.99
38
FUEL LINE, 5 FT.
8450045-153
Unavailable
38
FUEL LINE, 5 FT.
8450045-153
Unavailable
39
CLAMP, HOSE
7080490
Unavailable
40
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
41
CABLE,TANK RETENTION
7080473
Unavailable
42
RECTIFIER, FUEL (LR-51)
4060094
$17.46
43
STRAP, BLK
7080272
Unavailable
44
FITTING,(10)
7052077
$6.39
45
NUT,RETAINER-WELD.(10)
7542147
$17.59
46
RIVET(50)
7621301
$3.99
47
RIVET(50)
7621460
$1.49
48
SCREW(10)
7512242
$2.39
49
HOSE CLAMP, RED
7080003
$1.49
