FRONT SUSPENSION and SKI RXL TOURING 0950869 (4928982898B002)

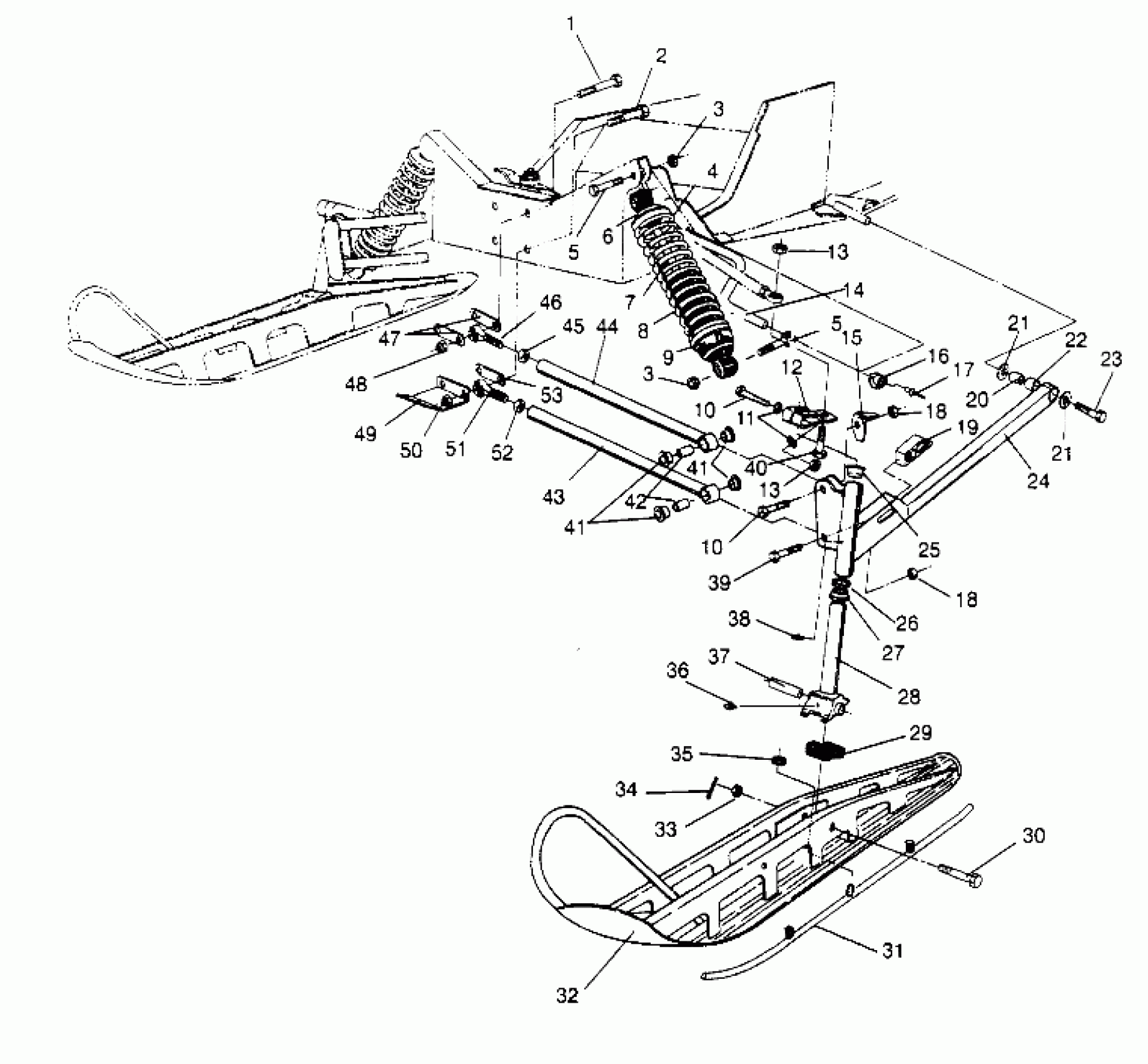

Polaris RXL TOURING - 0950869 FRONT SUSPENSION and SKI RXL TOURING 0950869 (4928982898B002) Diagram
#
1
BOLT(10)
7512551
Unavailable
2
BOLT(10)
7512656
$6.23
3
NUT, NYLOC(10)
7542453
Unavailable
3
NUT, NYLOC(10)
7542453
Unavailable
4
SHOCK,FR.SUSP.
7041282
Unavailable
5
BOLT(10) Substituted by 7515415
7515515
Unavailable
5
BOLT(10) Substituted by 7515415
7515515
Unavailable
6
RETAINER-TOP
5220225
$10.39
7
SLEEVE,SPRING PROTECTOR
5431032
$31.99
8
SPRING,COMP.,BLK.
7041261-067
$164.99
9
CAM,ADJUSTING SPRING
5630334
$32.37
10
BOLT(10) Substituted by 7517583
7515491
Unavailable
10
BOLT(10) Substituted by 7517583
7515491
Unavailable
11
WASHER(10) Substituted by 7555832
7555851
Unavailable
12
Arm, Steering
5220326-067
Unavailable
13
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
13
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
14
BAR, SWAY, (BLK.)
5224240-067
$49.21
15
STOP,STRNG,LH,BLK.
5220237-067
Unavailable
15
STOP,STRNG,RH,BLK.
5220238-067
Unavailable
16
BUSHING,SWAYBAR
5410386
Unavailable
17
RIVET(50)
7621433
$1.49
18
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
18
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
19
SLIDE,(FR.SUSP.)
5410385
Unavailable
20
TUBE,TRAILING ARM
5010187
Unavailable
21
WASHER(10)
7555721
$1.49
21
WASHER(10)
7555721
$1.49
22
PIVOT-TRAILING ARM
5410382
Unavailable
23
BOLT(10)
7512557
$7.60
24
ARM,TRLG,LH,BLK. Substituted by 1822427 (Incl. 22, 20)
1822053-067
Unavailable
24
ARM,TRLG,RH,BLK. Substituted by 1822428 (Incl. 22, 20)
1822052-067
Unavailable
25
BUSHING-FLANGE
3573909
$2.39
26
WASHER SPECIAL(10)
7556509
$1.59
27
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
28
SPINDLE, BLK.
6230073-067
Unavailable
29
STOP, RUBBER
5521276
Unavailable
30
BOLT(10)
7515462
$8.79
31
Plate, Skag
1011829-067
$54.99
31
SKAG Substituted by 1820318-067
1820318
$49.99
32
SKI WELD, BLK
1820332-067
Unavailable
33
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
34
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
35
NUT-5/16-18 NYLOK-Y
7542324
$1.49
36
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
37
BUSHING,PIVOT,(10)
5010158
$19.99
38
ZERK,FITTING,THREADED(10)
7080433
$1.49
39
BOLT(10) Substituted by 7515540
7515492
$4.62
40
BOLT(10)
7512404
$3.99
41
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
41
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
42
BUSHING-RADIUS ROD,(10)
5010127
$7.99
43
ROD,RAD.LOW.(STORM)
1822102-067
Unavailable
44
ROD,RAD.UPPER(STORM)
1822099-067
$40.32
45
NUT JAM(10)
7542520
$2.39
46
ROD END, RH Substituted by 7061010
7060155
Unavailable
47
STRAP,SPACER TOP
5211344
$7.27
48
NUT, LOCK,(10)
7542503
$10.39
49
BRACE, PAN
5223997-067
Unavailable
50
NUT FLEX,(10)
7542703
Unavailable
51
ROD END,RH Substituted by 7061011
7060156
Unavailable
52
NUT-JAM(10)
7542711
$2.39
53
STRAP,SPACER BOTTOM
5211345
$12.99
