EXHAUST SYSTEM RXL TOURING 0950869 (4928982898C007)

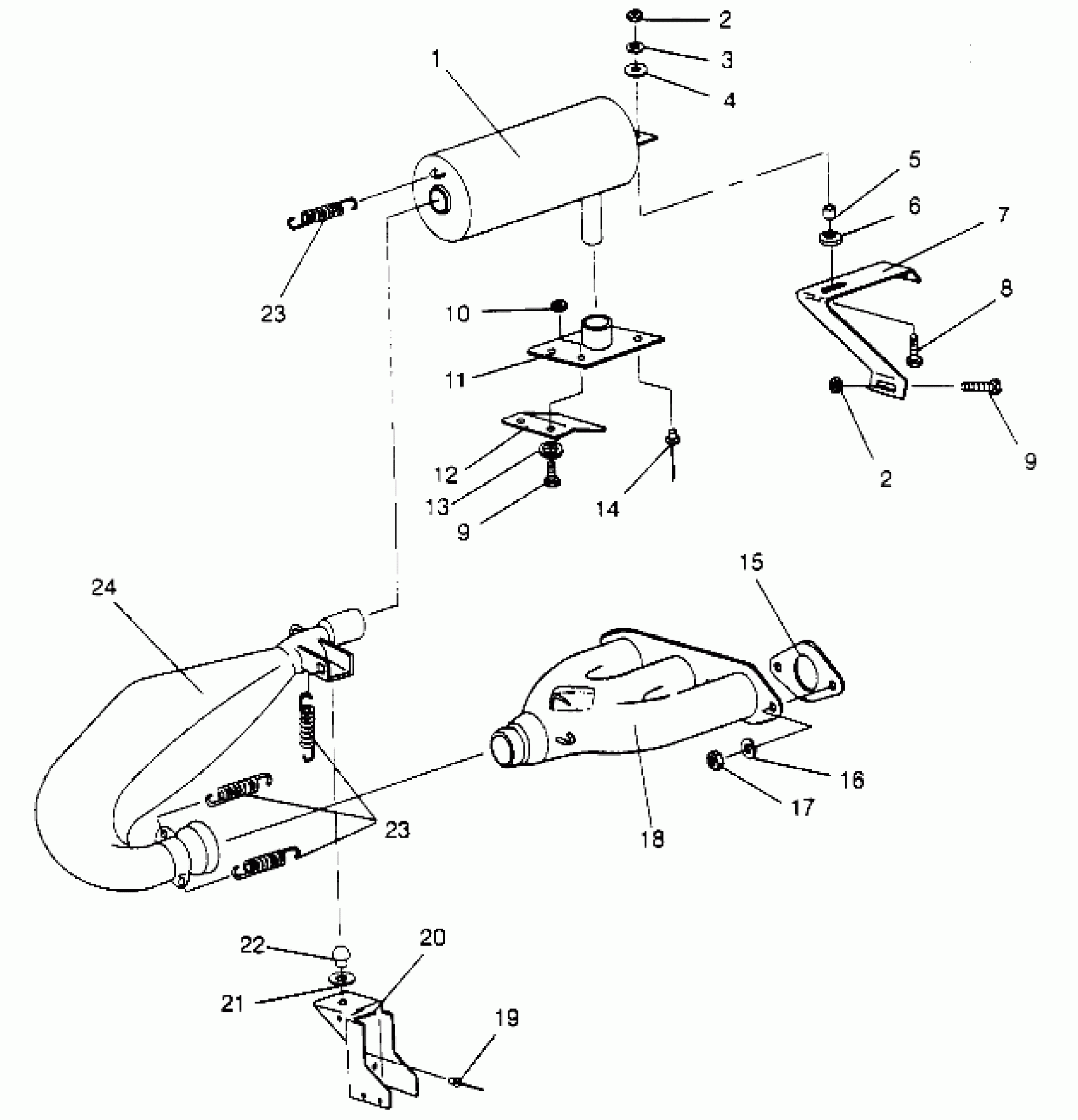

Polaris RXL TOURING - 0950869 EXHAUST SYSTEM RXL TOURING 0950869 (4928982898C007) Diagram
#
Description
Price
1
RESONATOR,BLK.
1260590-029
Unavailable
2
NUT-LOCK(10)
7542122
$1.49
2
NUT-LOCK(10)
7542122
$1.49
3
WASHER(10)
7558221
$2.39
4
WASHER,RUBBER
5410436
$1.59
5
BUSHING-RES. MT.
5010192
$6.39
6
DAMPENER
5410241
Unavailable
7
SUPPORT,R.MUFFLER,BLK.
5220695-067
Unavailable
8
BOLT-CARRIAGE(10)
7512275
$3.99
9
BOLT(10)
7512193
$2.39
9
BOLT(10)
7512193
$2.39
10
NUT, LOCK(10)
7542103
$5.59
11
STINGER,OUTLET,(RXL)
1260569-067
Unavailable
12
Deflector, Snow
5222615-067
$20.63
13
WASHER,WROUGHT(10)
7558302
$1.59
14
RIVET, BLIND(50)
7621467
$1.49
15
Gasket, Non-Asbestos (See Pg. A34, Ref. 19)
-------
Unavailable
16
WASHER LOCK ,(10)
3080530
$3.19
17
NUT(10)
3080285
Unavailable
18
MANIFOLD WELD,BLK.
1260477-029
Unavailable
19
RIVET-3/16-.090-.290
7661637
$1.49
20
SUPPORT,MUFFLER,BLK. Substituted by 5242798-067
1011831-067
Unavailable
21
WASHER, THRUST(10)
7555788
$4.99
22
DAMPNER, VIB.
5410467
$8.79
23
SPRING, EXHAUST(10)
7042031
$5.65
23
SPRING, EXHAUST(10)
7042031
$5.65
24
MUFFLER, BLK.
1260599-029
Unavailable
