ENGINE MOUNTING RXL TOURING 0950869 (4928982898C006)

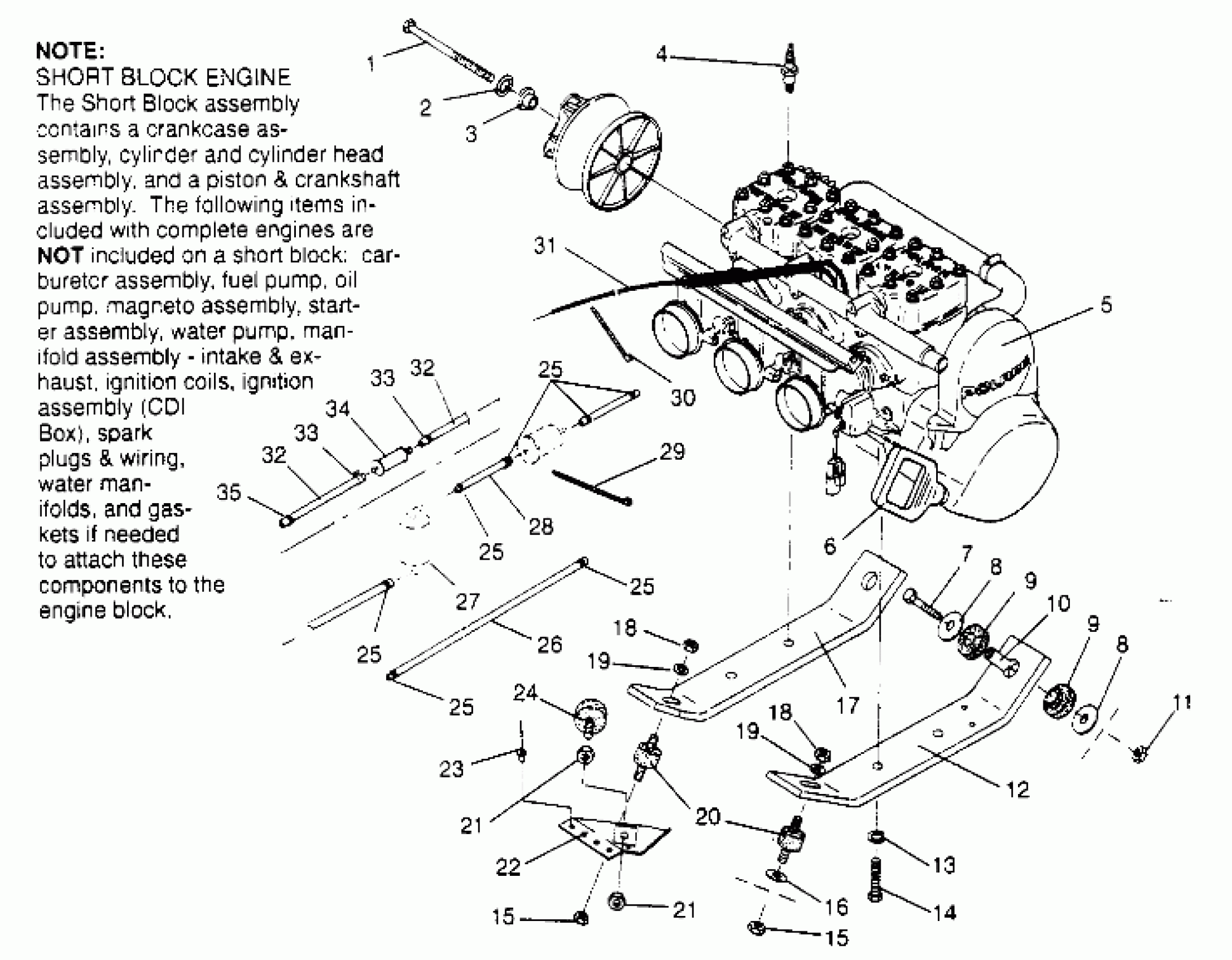

Polaris RXL TOURING - 0950869 ENGINE MOUNTING RXL TOURING 0950869 (4928982898C006) Diagram
#
1
BOLT(10)
7512565
$19.99
2
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
3
WASHER,CLUTCH RETAINER
5010278
Unavailable
4
SPARKPLUG(8)
3070165
$3.99
5
ENG.(S.B.)EC65PL-05/06 [No Longer Available]
3084627
Unavailable
6
HANDLE-RECOIL
5430520
Unavailable
7
SCREW(10)
7512530
$5.59
8
WASHER(10)
7555740
$1.59
8
WASHER(10)
7555740
$1.59
9
MOUNT, ENGINE
5410390
Unavailable
9
MOUNT, ENGINE
5410390
Unavailable
10
TUBE,SPACER
5333354
Unavailable
11
NUT,FLANGE(10)
7542522
$5.59
12
PLATE,LH.MTR.MT.
5240818
$36.31
13
WASHER LOCK(10)
7553101
$3.99
14
BOLT(10)
7512539
$3.99
15
NUT LOCK(10)
7542411
$3.19
15
NUT LOCK(10)
7542411
$3.19
16
WASHER(10)
7555721
$1.49
17
PLATE,RH.MTR.MT.
5240819
$32.22
18
NUT-LOCK(10)
7542439
$1.49
18
NUT-LOCK(10)
7542439
$1.49
19
WASHER(10) Substituted by 7555806
7555720
$0.79
19
WASHER(10) Substituted by 7555806
7555720
$0.79
20
MOUNT
3110022
Unavailable
21
NUT, JAM(10)
7542432
$3.99
21
NUT, JAM(10)
7542432
$3.99
22
LIMITER
1011503-067
Unavailable
23
RIVET-3/16-.090-.290
7661637
$1.49
24
STOP
3110023
Unavailable
25
CLAMP,HOSE(SCREW TYPE)
7080417
$9.59
25
CLAMP,HOSE(SCREW TYPE)
7080417
$9.59
25
CLAMP,HOSE(SCREW TYPE)
7080417
$9.59
25
CLAMP,HOSE(SCREW TYPE)
7080417
$9.59
25
CLAMP,HOSE(SCREW TYPE)
7080417
$9.59
26
FUEL LINE, 5 FT.
8450045-153
Unavailable
27
Asm., Fuel Pump (See Pg. C13, Ref. 4)
-------
Unavailable
28
FUEL LINE, 5 FT.
8450044-153
Unavailable
29
CLIP, BAND (A.T.S.)
3084111
Unavailable
30
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
31
CABLE,THROTTLE,SINGLE
7080555
Unavailable
32
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
32
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
33
STRAP, PANDUIT Substituted by 7080003
7080527
Unavailable
33
STRAP, PANDUIT Substituted by 7080003
7080527
Unavailable
34
FILTER FUEL,(10)
2530008
$4.84
35
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
