DRIVE TRAIN ASSEMBLY RXL TOURING 0950869 (4928982898B008)

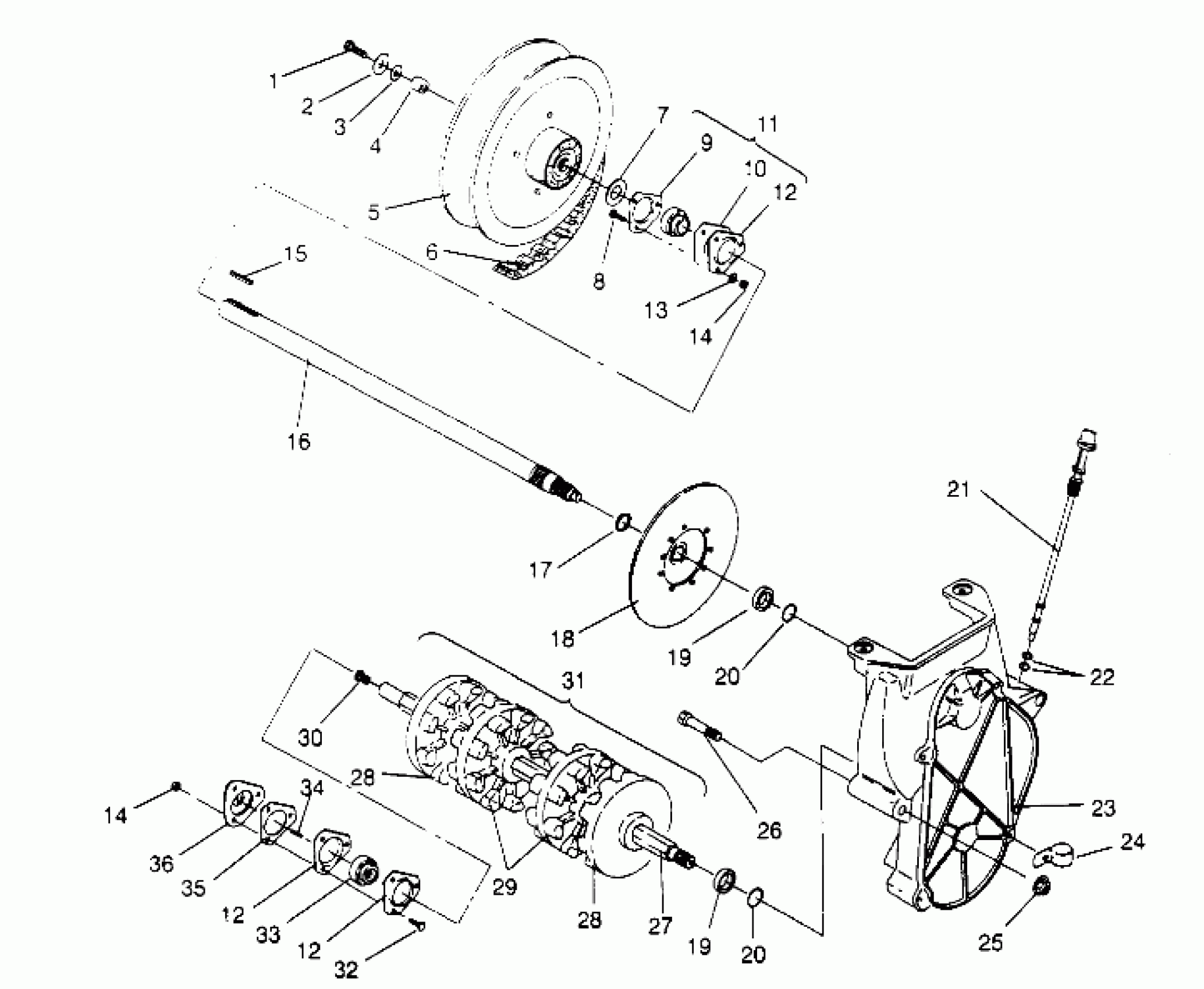

Polaris RXL TOURING - 0950869 DRIVE TRAIN ASSEMBLY RXL TOURING 0950869 (4928982898B008) Diagram
#
1
BOLT(10)
7515301
Unavailable
2
WASHER FLAT(10)
7555701
$3.99
3
WASHER(10)
7555734
Unavailable
4
SPACER
5020291
Unavailable
5
Asm., Driven Clutch (See Pg. C4, Ref. 15)
-------
Unavailable
6
BELT DRIVE(5)
3211042
$109.99
7
WASHER SPECIAL(10)
7556509
Unavailable
8
BOLT(10) Substituted by 7512377
7512394
Unavailable
9
FLANGETTE,W/GREASE HOLE
5222752
$7.43
10
GASKET,JACKSHAFT,BLK.
5811095
$2.41
11
KIT,HI-PERF,BEARING (Incl. 9, 12 & Bearing)
2200422
Unavailable
12
FLANGETTE
5222751
$16.44
12
FLANGETTE
5222751
$16.44
12
FLANGETTE
5222751
$16.44
13
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
14
NUT-5/16-18 NYLOK-Y
7542324
$1.49
14
NUT-5/16-18 NYLOK-Y
7542324
$1.49
15
KEY-SQUARE(10)
7721204
$3.19
16
JACKSHAFT ASM, BLK. (Incl. 17)
1332141-067
$190.46
17
RING, RETAINING(10)
7710422
$3.99
18
DISC ASM, BRAKE
1910086
Unavailable
19
SLEEVE, SEAL
5020588
$23.99
19
SLEEVE, SEAL
5020588
$23.99
20
O RING,(10)
5410613
$1.99
20
O RING,(10)
5410613
$1.99
21
DIPSTICK Substituted by 1332143
5431419
Unavailable
22
O-RING
5410675
$1.60
23
Chaincase, Top Mount Brake, Mach. (See Pg. B9, Ref. 54)
-------
Unavailable
24
CLIP
7080277
$1.24
25
NUT(10)
7542423
$3.99
26
BOLT(10)
7515428
$4.79
27
DRIVE SHAFT Substituted by 6230083
6230067
Unavailable
28
SPROCKET, HALF,9T
5430993
Unavailable
28
SPROCKET, HALF,9T
5430993
Unavailable
29
SPROCKET, 9T
5430571
Unavailable
30
BUSHING METAL SPEEDO
3280019
$11.99
31
DRIVESHAFT ASM. Substituted by 1590245 (Incl. 27-30)
1590229
Unavailable
32
BOLT(10)
7512331
$3.99
33
BEARING
3514517
Unavailable
34
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
35
GASKET,DRIVE ADAPTOR,(10)
5830012
$2.41
36
ADAPTER,DRIVE,W/ZERK
3280116
$101.17
