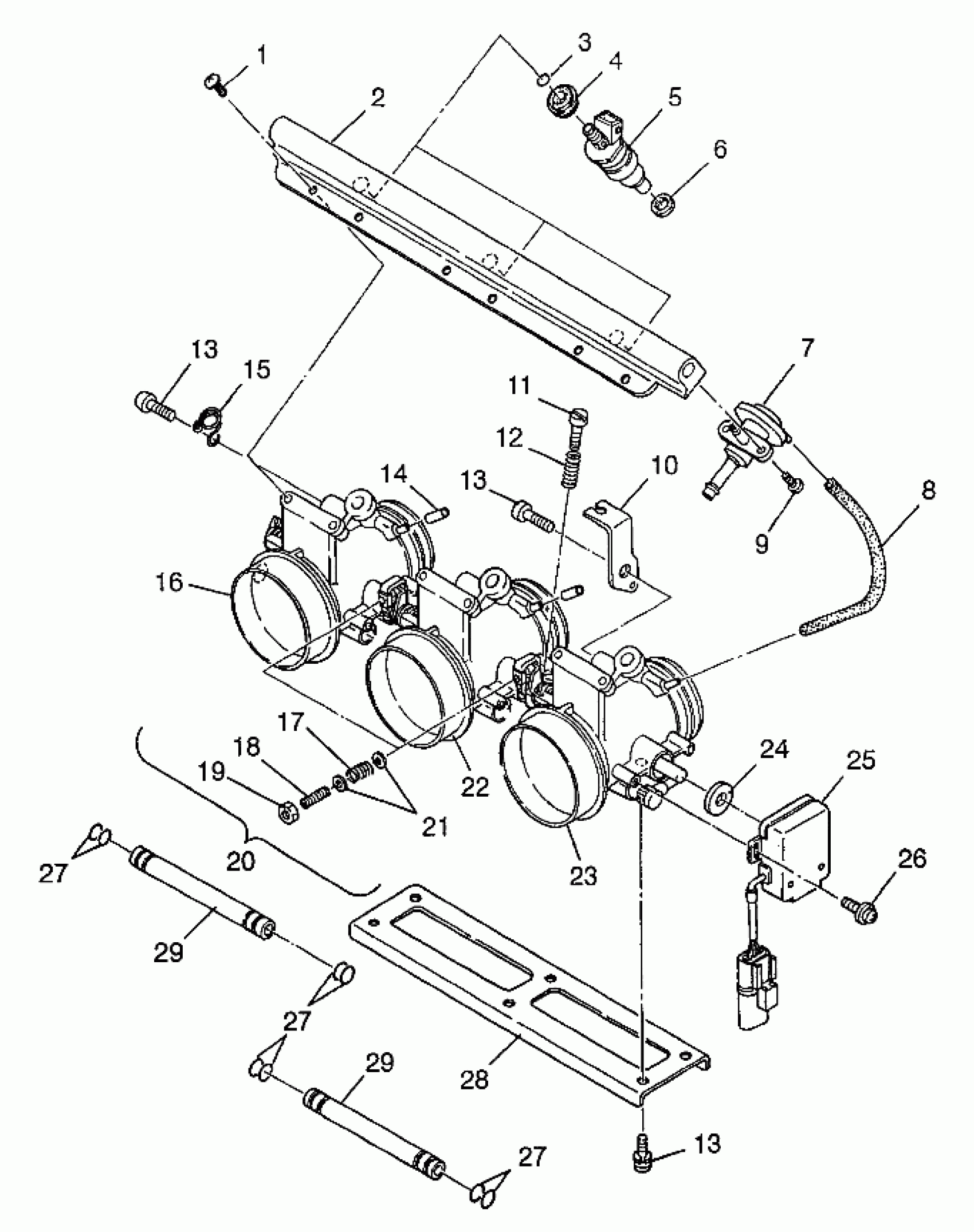

Polaris RXL - 0976768 THROTTLE RXL 0976768 (4938523852D001) Diagram
#
Description
Price
1
SCREW
3084359
Unavailable
2
PIPE,FUEL DELIVERY
3084306
Unavailable
3
O RING, CONNECTOR
3084057
Unavailable
4
INSULATOR,UPPER
3084058
Unavailable
5
INJECTOR, FUEL (Incl. 3, 4)
3084056
Unavailable
6
INSULATOR,LOWER
3084059
Unavailable
7
REGULATOR,PRESSURE
3084053
Unavailable
8
PIPE, RUBBER
3084308
Unavailable
9
SCREW
3084065
Unavailable
10
STAY, (WIRE)
3084307
Unavailable
11
SCREW, ADJUST.
3084068
$5.43
12
SPRING
3084069
Unavailable
13
SCREW
3084392
Unavailable
13
SCREW
3084392
Unavailable
13
SCREW
3084392
Unavailable
14
CAP, RUBBER
3084077
Unavailable
15
CLAMP, HOSE
3084312
Unavailable
16
THROTTLEBODY ASM,#1
3084480
$308.99
17
SPRING
3084071
Unavailable
18
SCREW, ADJUST.
3084073
$10.63
19
NUT
3084072
Unavailable
20
THROTTLEBODY ASM. (Incl. 1-29)
3084304
$977.58
21
WASHER(10)
3084070
Unavailable
22
THROTTLEBODY 2
3084502
Unavailable
23
THROTTLEBODY 3
3084503
$290.94
24
GASKET
3084385
Unavailable
25
SENSOR ASM,THROTTLE
3084616
Unavailable
26
SCREW
3084064
$1.44
27
O RING
3084063
Unavailable
27
O RING
3084063
Unavailable
27
O RING
3084063
Unavailable
28
PLATE, STAY
3084305
$63.73
29
JOINT, PIPE
3084062
$38.79
29
JOINT, PIPE
3084062
$38.79
