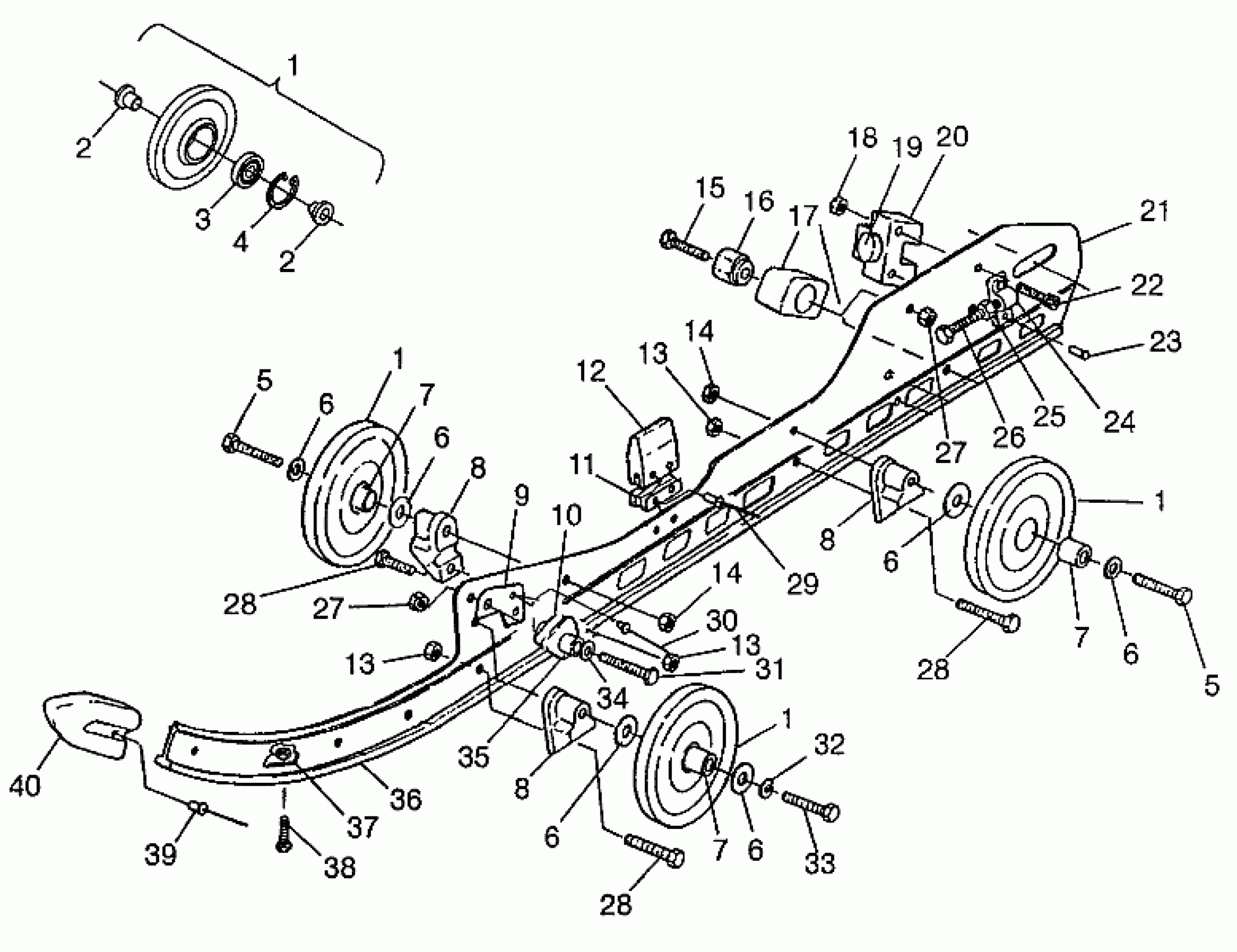

Polaris RXL - 0976768 SUSPENSION RXL 0976768 (4938523852B010) Diagram
#
1
WHEEL, IDLER (Incl. 2-4)
1543018
$56.65
1
WHEEL, IDLER (Incl. 2-4)
1543018
$56.65
1
WHEEL, IDLER (Incl. 2-4)
1543018
$56.65
1
WHEEL, IDLER (Incl. 2-4)
1543018
$56.65
2
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
2
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
3
BEARING (1 per Wheel)
3514303
$11.99
4
RET.RING-TRUARC (1 per Wheel)
7718407
$4.79
5
BOLT(10)
7512538
$6.39
5
BOLT(10)
7512538
$6.39
6
WASHER, FLAT(10)
7555852
$2.39
6
WASHER, FLAT(10)
7555852
$2.39
6
WASHER, FLAT(10)
7555852
$2.39
6
WASHER, FLAT(10)
7555852
$2.39
6
WASHER, FLAT(10)
7555852
$2.39
6
WASHER, FLAT(10)
7555852
$2.39
7
SPACER, WHEEL
5333116
$7.99
7
SPACER, WHEEL
5333116
$7.99
7
SPACER, WHEEL
5333116
$7.99
8
SPACER
5630399
$11.99
8
SPACER
5630399
$11.99
8
SPACER
5630399
$11.99
9
PLATE,RAIL SUPPORT
5211786
$5.95
10
BLOCK,SPRING SLIDER
5431924
$10.65
11
BRKT,BUMPER SUPPORT
5240946
Unavailable
12
BUMPER,JOUNCE,RAIL,LT
5811065
Unavailable
13
NUT-LOCK(10)
7542439
$1.49
13
NUT-LOCK(10)
7542439
$1.49
13
NUT-LOCK(10)
7542439
$1.49
14
NUT, NYLOCK(10)
7542525
$4.79
14
NUT, NYLOCK(10)
7542525
$4.79
15
BOLT(10)
7515537
$10.99
16
MOUNT,FR.BUMPER,(NYLON)
5432052
$5.75
17
BUMPER,F.PIVOT ARM
5410925
$12.94
18
NUT, LOCK(10)
7542103
$5.59
19
BUMPER,R.PIVOT ARM
5410937
$5.75
20
BLOCK,R.PIVOT ARM STOP
5131111
Unavailable
21
RAIL ASM,RH,XTRA-12 (Incl. 11, 12, 23, 24, 29, 39, 40)
1541123
$278.99
21
RAIL ASM,LH,XTRA-12 (Incl. 11, 12, 23, 24, 29, 39, 40)
1541122
$319.99
22
SCREW(10)
7515156
$3.99
23
RIVET,(50)
7621501
$2.39
24
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
25
NUT(10)
7542440
Unavailable
26
BOLT, ADJUSTER(10)
7515455
$29.99
27
NUT LOCK(10)
7542403
$3.99
27
NUT LOCK(10)
7542403
$3.99
28
BOLT(10)
7512404
$3.99
28
BOLT(10)
7512404
$3.99
28
BOLT(10)
7512404
$3.99
29
RIVET,(50)
7621488
$3.99
30
RIVET(50)
7661845
$1.49
31
BOLT(10)
7515538
$6.39
32
WASHER LOCK(10)
7553101
$3.99
33
BOLT(10)
7512508
$7.19
34
WASHER ,(10)
7555976
$3.99
35
Bushing
5010332
$11.99
36
SLIDER,BLACK(2)
5521320
Unavailable
37
NUT-LOCK(10)
7542122
$1.49
38
BOLT(10)
7515175
$3.99
39
RIVET(50)
7621435
$1.49
40
COVER, RAIL TIP Substituted by 5433005
5431421
Unavailable
