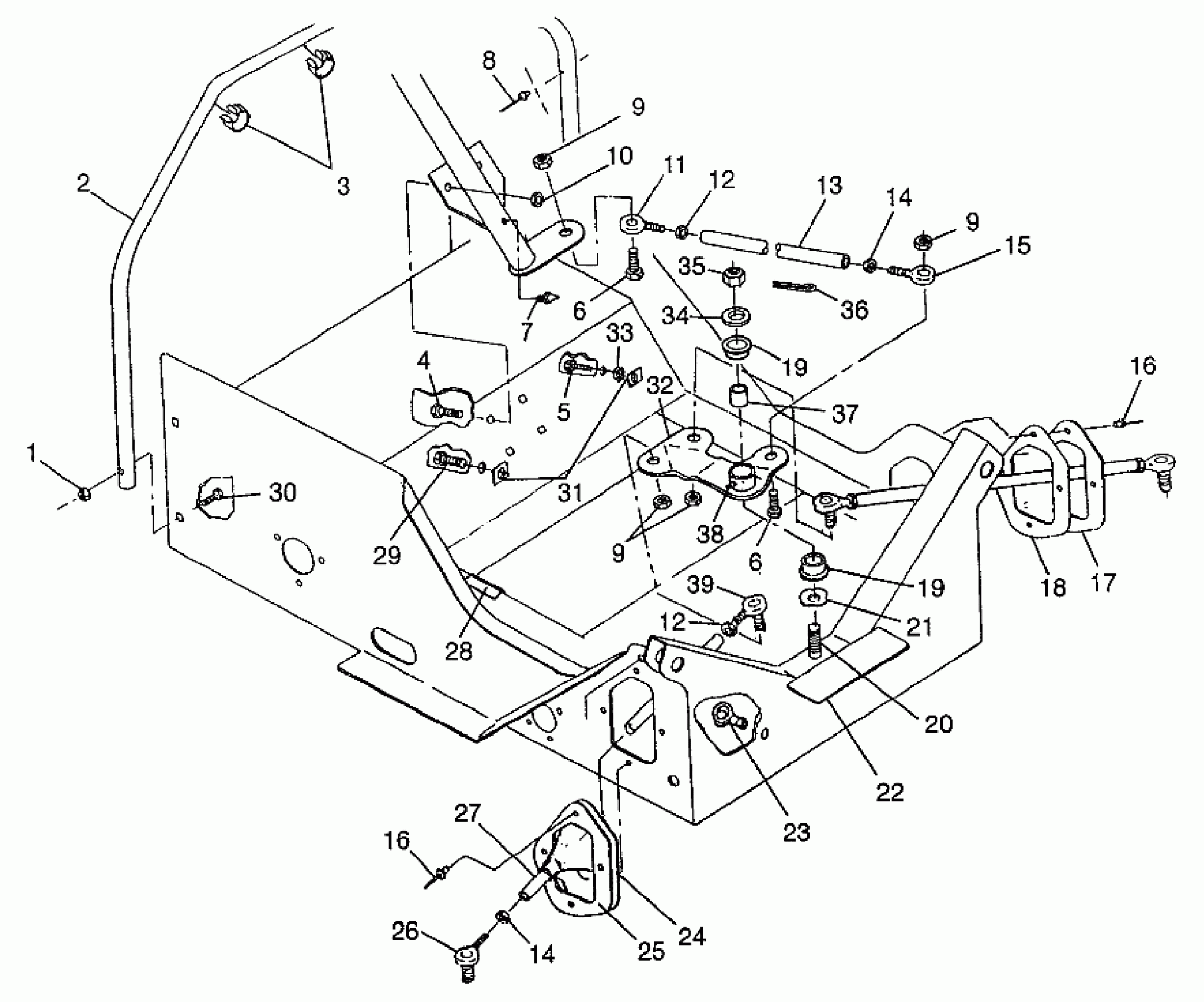

Polaris RXL - 0976768 STEERING RXL 0976768 (4938523852B005) Diagram
#
Description
Price
1
NUT-LOCK(10)
7542122
$1.49
2
HOOP,STEERING
1012381-067
$46.03
3
CLIP(10)
7080278
$2.63
4
BOLT(10) Substituted by 7512377
7512394
Unavailable
5
BOLT(10)
7512193
$2.39
6
SCREW(10)
7515434
Unavailable
6
SCREW(10)
7515434
Unavailable
7
FITTING-LUBRICATION 1/4-28
7080424
$4.79
8
RIVET-3/16-.090-.290
7661637
$1.49
9
NUT LOCK(10)
7542403
$3.99
9
NUT LOCK(10)
7542403
$3.99
9
NUT LOCK(10)
7542403
$3.99
10
NUT-5/16-18 NYLOK-Y
7542324
$1.49
11
ROD END, LH.
7060164
$48.56
12
NUT
7542424
$1.49
12
NUT
7542424
$1.49
13
ROD-DRAG LINK
5332712
Unavailable
14
NUT HEX(10)
7542401
$2.39
14
NUT HEX(10)
7542401
$2.39
15
ROD END, RH.
7060165
$48.56
16
RIVET(50)
7621340
$0.56
16
RIVET(50)
7621340
$0.56
17
PLATE,BOOTSEAT,BLK.
5211454-067
Unavailable
18
BOOT,TIEROD,LH,XTRA
5411122
Unavailable
19
BUSHING
3563907
$3.99
19
BUSHING
3563907
$3.99
20
BOLT(10)
7512682
Unavailable
21
WASHER,WAVE(10)
7555735
$3.99
22
BLOCK,STRG,(CAST)
5630563
$32.37
23
CLIP, PLASTIC(10)
4020139
$4.79
24
BOOT,TIEROD,RH,XTRA
5411123
$20.22
25
PLATE,RH,BOOTSEAL,BLK.
5211453-067
$15.67
26
ROD-END,RH,3/8,HI-ANGLE
7060174
$48.56
27
ROD,TIE,BLK.
5020859-067
Unavailable
28
TRIM,EDGE,6FT,BLACK [No Longer Available]
5521131
Unavailable
29
BOLT-CARRIAGE(10)
7512263
$3.99
30
BOLT-CARRIAGE(10)
7512275
$3.99
31
SPEED NUT(10)
7670021
$6.99
32
STEERING ASM,CTR. (Incl. 20, 38)
1822266
$38.49
33
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
34
WASHER(10)
7555721
$1.49
35
NUT FLEX,(10)
7542703
Unavailable
36
PIN COTTER(10)
7661203
$1.49
37
BUSHING
5010340
Unavailable
38
ZERK,FITTING,THREADED(10)
7080433
$1.49
39
ROD END,LH,3/8 HI-ANGLE PRO
7061005
Unavailable
