SEAT and GAS TANK RXL 0976768 (4938523852A007)

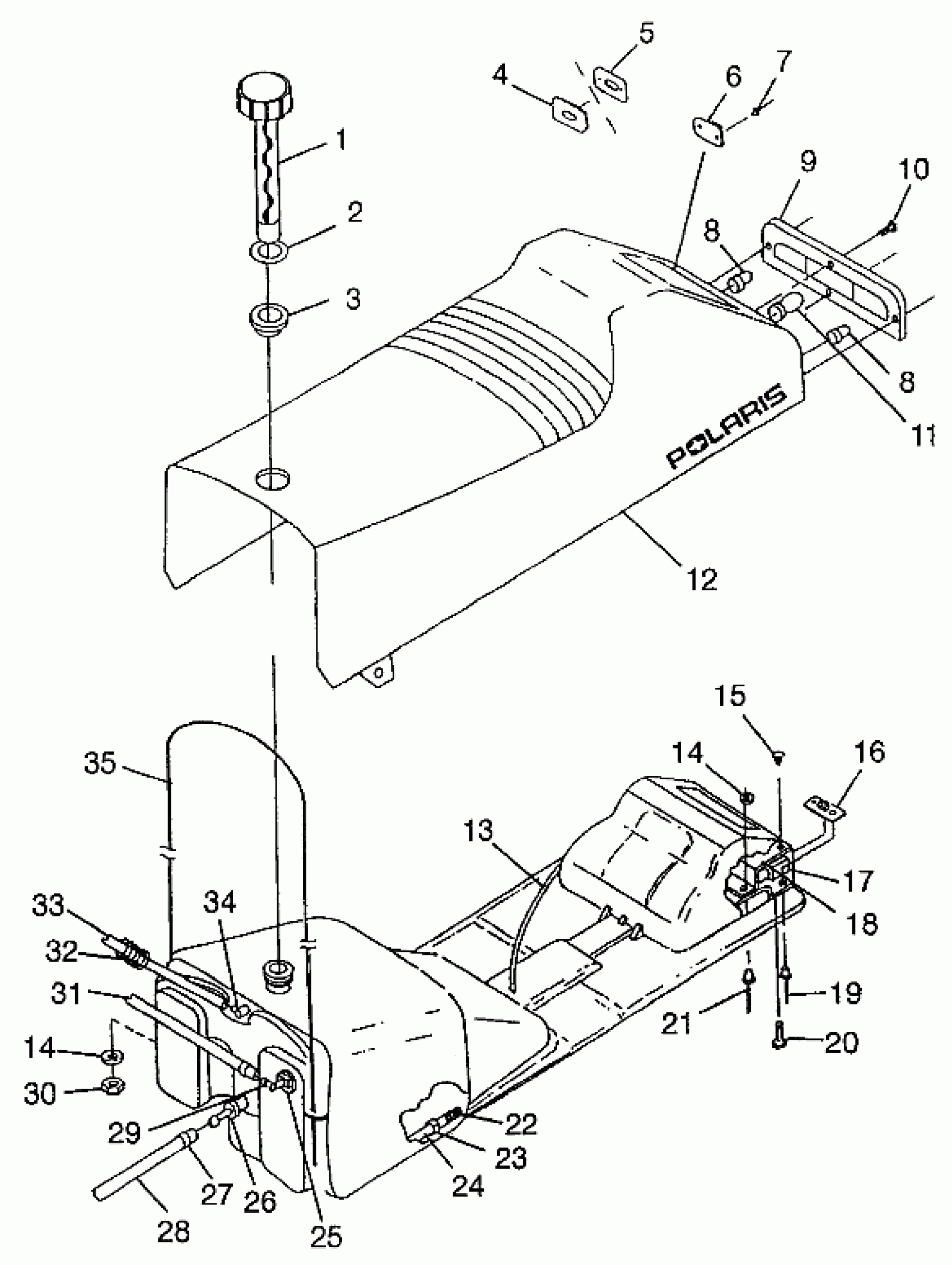

Polaris RXL - 0976768 SEAT and GAS TANK RXL 0976768 (4938523852A007) Diagram
#
Description
Price
1
CAP,GAS,W/GAUGE
2511248
$44.51
2
GASKET, GAS CAP
5810513
$8.89
3
GROMMET,FUELTANK
5410842
Unavailable
4
GROMMET,RELATCH,1",BOTT.(10)
7080550
Unavailable
5
GROMMET,RELATCH,1",TOP(10)
7080549
Unavailable
6
TWISTLOCK,RELATCH,1",W/HOLE(10)
7080548
Unavailable
7
RIVET(50)
7621337
$1.49
8
BULB,TAILLIGHT(10)
4030024
$4.84
8
BULB,TAILLIGHT(10)
4030024
$4.84
9
LENS,TAILLIGHT
5430423
Unavailable
10
SCREW(10)
7511840
Unavailable
11
Bulb, Brakelight
4030045
Unavailable
12
SEAT ASM,LONG,RXL (Incl. 2, 4-26, 29, 34)
2681993
Unavailable
12
COVER,SEAT,RXL
2682119
Unavailable
13
HARNESS,TAILLIGHT
2460398
Unavailable
14
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
14
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
15
CLIP,DART,(10)
7670097
Unavailable
16
NUT,RETAINER-WELD.(10)
7542147
$17.59
17
HOUSING,TAILLIGHT Substituted by 5433341
5431545
Unavailable
18
COVER,T/L PROTECTOR
5431436
$21.43
19
RIVET(50)
7621301
$3.99
20
SCREW(10)
7512242
$2.39
21
RIVET(50)
7621464
$3.99
22
PICKUP,FUEL,W/STRAINER
7052081
Unavailable
23
RING, COMPRESSION(10)
7080402
$1.60
24
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
25
GROMMET-TANK FITTING(10)
7052028
$6.39
26
FITTING - OUTLET(10)
7052023
$24.99
27
HOSE CLAMP, RED
7080003
$1.49
28
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
29
FITTING,TANK OUTLET(5/16)
7052059
Unavailable
30
NUT(10)
7541925
$1.49
31
FUEL LINE, 5 FT.
8450045-153
Unavailable
32
SPRING,PROTECT.VENTHOSE
7041605
Unavailable
33
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
34
FITTING,90 DEG,1/8,(10)
7052095
$4.79
35
CABLE,TANK,RETENTION
7080559
Unavailable
