Description

Price

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

2

PIPE 1,VINYL

3084467

$28.32

3

PACKING(10)

3083126

$4.03

4

SCREW-AIR VENT

3083125

Unavailable

5

PIPE#3,VINYL(L=315) Substituted by 3085591

3083488

Unavailable

5

PIPE#3,VINYL(L=315) Substituted by 3085591

3083488

Unavailable

6

PUMP, OIL (Incl. 3, 4, 12-17)

3084296

Unavailable

7

SCREW&WASHER,(10)

3083783

$2.39

8

GEAR,SMALL,OIL PUMP

3083131

$89.99

9

SPACER

3083130

$1.59

10

BUSHING(OIL PUMP)

3083353

$31.99

11

SPACER #3 (.6mm)

3083673

Unavailable

11

SPACER #2 (.3mm)

3083672

Unavailable

11

SPACER #1 (.15mm)

3083671

Unavailable

12

O RING

3083127

Unavailable

13

NUT(10)

3083120

$3.19

14

WASHER-SPRING(10)

3083121

$299.99

15

LEVER, CONTROL

3084297

Unavailable

16

COLLAR, CAMSHAFT(10)

3083445

$2.39

17

SPRING-RETURN

3083123

Unavailable

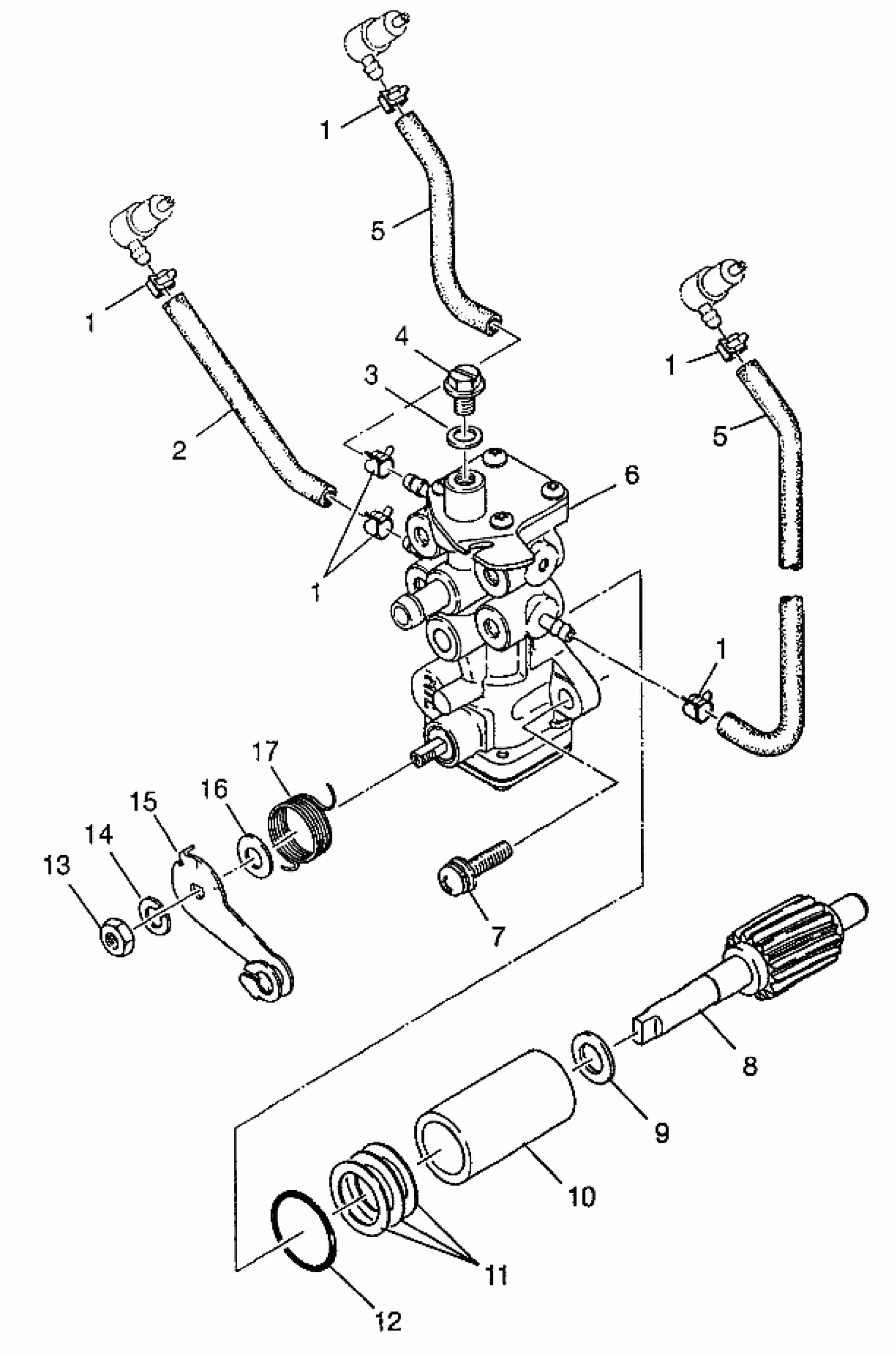

Polaris RXL - 0976768 OIL PUMP RXL 0976768 (4938523852C012) Diagram

CLAMP-HOSE,(10)

CLAMP-HOSE,(10)

CLAMP-HOSE,(10)

CLAMP-HOSE,(10)

CLAMP-HOSE,(10)

PIPE 1,VINYL

PACKING(10)

SCREW-AIR VENT

PIPE#3,VINYL(L=315) Substituted by 3085591

PIPE#3,VINYL(L=315) Substituted by 3085591

PUMP, OIL (Incl. 3, 4, 12-17)

SCREW&WASHER,(10)

GEAR,SMALL,OIL PUMP

SPACER

BUSHING(OIL PUMP)

SPACER #3 (.6mm)

SPACER #2 (.3mm)

SPACER #1 (.15mm)

O RING

NUT(10)

WASHER-SPRING(10)

LEVER, CONTROL

COLLAR, CAMSHAFT(10)

SPRING-RETURN
