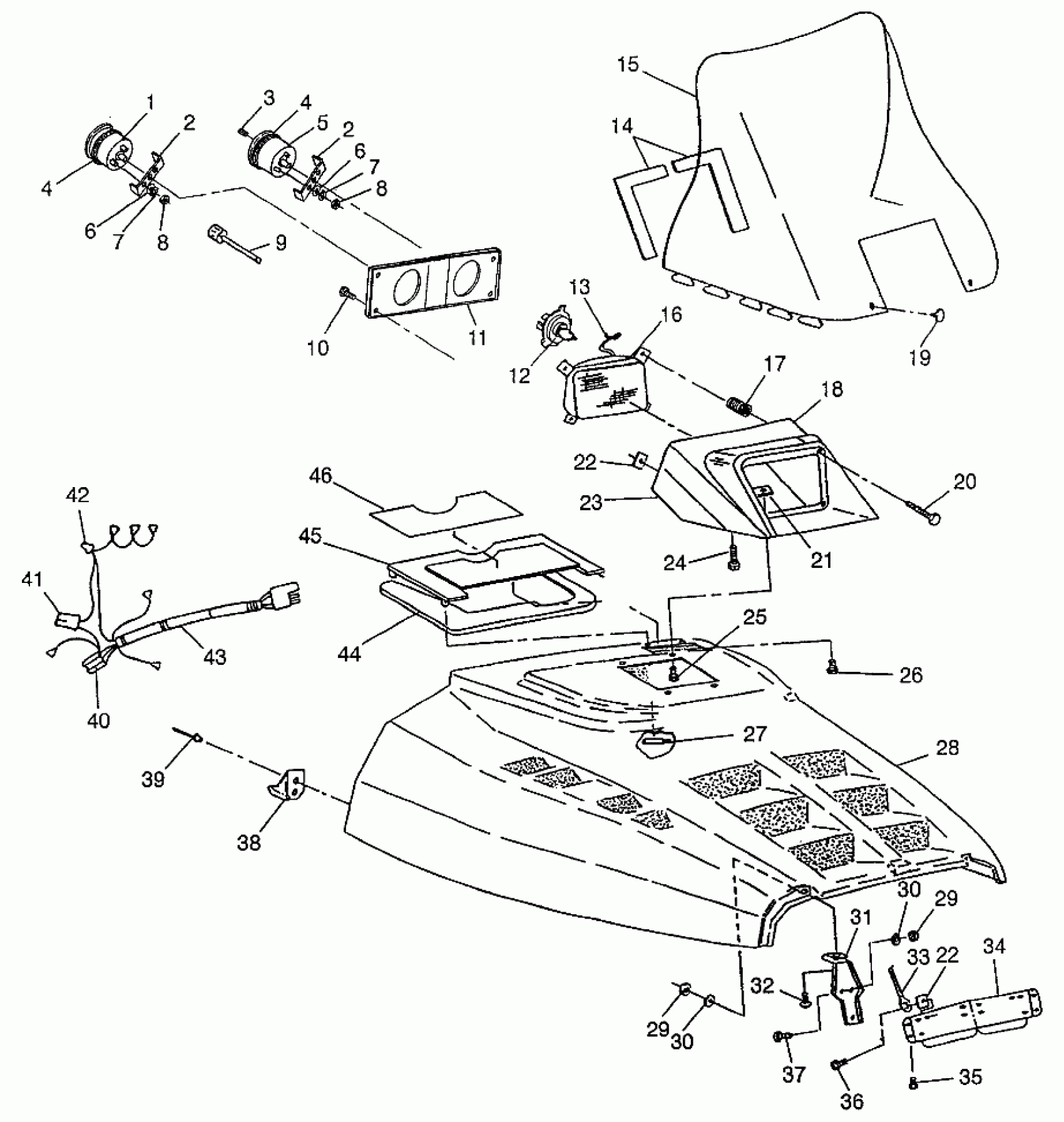

Polaris RXL - 0976768 HOOD RXL 0976768 (4938523852A011) Diagram
#
1
BULB TAILLIGHT(10)
4030015
$4.03
1
TACH ASM,3P,(5 IN.) (Incl. 2, 4, 6-8)
3280249
Unavailable
2
BRKT,TACH/SPEEDO,5"
3280210
$28.32
2
BRKT,TACH/SPEEDO,5"
3280210
$28.32
3
KNOB,TRIP ODOMETER,LH THD.
3280186
$9.70
4
CUSHION,TACH/SPEEDO,RUBBER
3280209
$3.99
4
CUSHION,TACH/SPEEDO,RUBBER
3280209
$3.99
5
SPEEDO,BACKLIT,5IN,120MPH (Incl. 2, 4, 6-8)
3280254
Unavailable
6
WASHER,FLAT,(10)
3280157
$2.39
6
WASHER,FLAT,(10)
3280157
$2.39
7
WASHER,SPLIT LOCK
3280156
$1.49
7
WASHER,SPLIT LOCK
3280156
$1.49
8
Nut
3280158
Unavailable
8
Nut
3280158
Unavailable
9
CABLE,SPEEDO.
3280094
$60.70
10
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
11
BEZEL,INST,5IN.GAUGE
5432355
Unavailable
12
BULB,QUARTZ.H/L,INDY
2870448
$24.99
13
RETAINER,H/L BULB
4032063
Unavailable
14
PAD,W/S,LH,BLACK
5810437
Unavailable
14
PAD,W/S,RH,BLACK
5810438
$1.67
15
WINDSHIELD,SMOKE,STD(LIQ)
5431144
$134.99
16
HEADLIGHT ASM. (Incl. 12, 13)
4032040
Unavailable
17
SPRING-ADJ
4032002
Unavailable
18
HSG,INSTR,TOP,BLK
5432349-070
Unavailable
19
RIVET,PLASTI-LOC.(50)
7621509
$1.49
20
SCREW, ADJ.(10)
4032003
Unavailable
21
NUT, SPEED(10)
7670057
$1.49
22
NUT, SPEED(10)
7670056
Unavailable
22
NUT, SPEED(10)
7670056
Unavailable
23
HSG,INST.BOTT.BLK.
5430922-070
Unavailable
24
SCREW(10)
7512009
Unavailable
25
SCREW, SEMS(10)
7512283
$3.99
26
SCREW(10)
7511840
Unavailable
27
RETAINER,WINDSHIELD,(10)
5410970
$1.49
28
HOOD,LIQ INDY SP,INDIGO MT (Incl. Foam, Foil & Warning Decals)
2631751-229
Unavailable
29
NUT-LOCK(10)
7542122
$1.49
29
NUT-LOCK(10)
7542122
$1.49
30
WASHER,WROUGHT(10)
7558302
$1.59
30
WASHER,WROUGHT(10)
7558302
$1.59
31
HINGE ASM,HD,INDIGO MET
2635005-229
$16.67
32
BOLT-CARRIAGE(10)
7512263
$3.99
33
CABLE,HOOD RETAINER
7080368
$10.51
34
PLATE,RE-INF.,(HD.)
5222105
$49.51
35
SCREW(10)
7511861
Unavailable
36
SCREW(10)
7511989
Unavailable
37
BOLT(10)
7512193
$2.39
38
CUP, HOOD LATCH,(10)
5430733
$4.84
39
RIVET(50)
7621334
$1.49
40
Housing
4020115
$1.59
41
HOUSING
4020114
Unavailable
42
HOUSING
4020052
Unavailable
43
HARNESS,HEADLIGHT
2460576
Unavailable
44
SEAL, INTAKE
5810597
Unavailable
45
PANEL ASM,INTAKE,INDG.MET (Incl. 46)
2620095-229
Unavailable
46
DECAL,WARN."PK.BRAKE"
7075457
Unavailable
