FRONT SUSPENSION and SKI RXL 0976768 (4938523852B001)

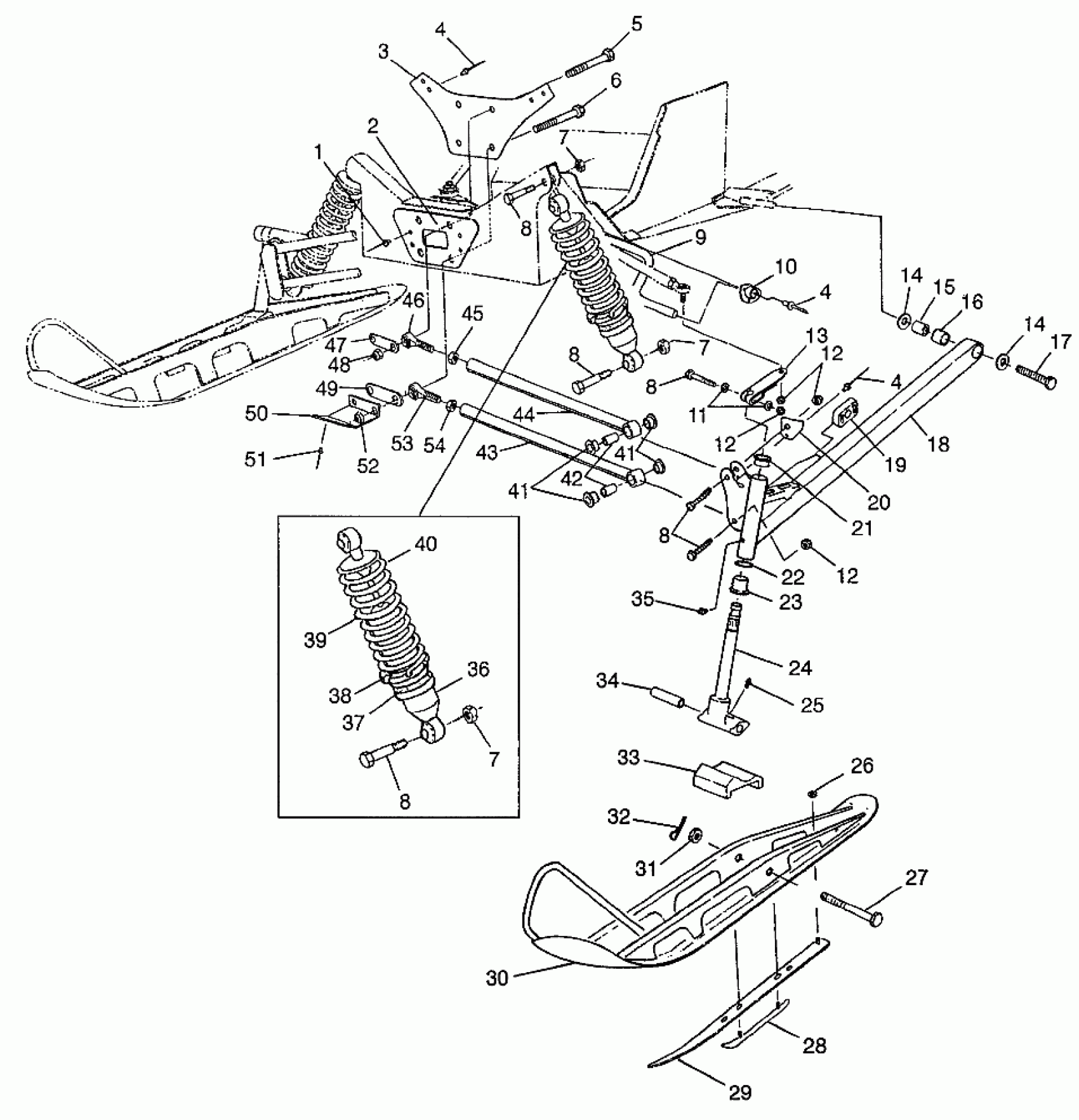

Polaris RXL - 0976768 FRONT SUSPENSION and SKI RXL 0976768 (4938523852B001) Diagram
#
1
RIVET,INTERLOCK,B(50)
7661638
$1.49
2
BRACE,BLKHD/STRG,BLK.
5211589-067
Unavailable
3
REINF,R.SHOCK MT.PLATE
5241395-067
$3.46
4
RIVET(50) Substituted by 7661130
7661643
Unavailable
4
RIVET(50) Substituted by 7661130
7661643
Unavailable
4
RIVET(50) Substituted by 7661130
7661643
Unavailable
5
BOLT(10)
7512551
Unavailable
6
BOLT(10)
7512678
$19.99
7
NUT, NYLOC(10)
7542453
Unavailable
7
NUT, NYLOC(10)
7542453
Unavailable
7
NUT, NYLOC(10)
7542453
Unavailable
8
BOLT(10) Substituted by 7517583
7515491
Unavailable
8
BOLT(10) Substituted by 7517583
7515491
Unavailable
8
BOLT(10) Substituted by 7517583
7515491
Unavailable
8
BOLT(10) Substituted by 7517583
7515491
Unavailable
8
BOLT(10) Substituted by 7517583
7515491
Unavailable
9
BAR,SWAY,5/8(X-12)BLK
5224748-067
Unavailable
10
BUSHING,SWAY BAR
5432038
$19.99
11
WASHER(10) Substituted by 7555832
7555851
Unavailable
12
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
12
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
12
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
13
ARM,STRG,BLK
5241560-067
Unavailable
14
WASHER(10)
7555721
$1.49
14
WASHER(10)
7555721
$1.49
15
TUBE, BUSHING
5010310
$9.70
16
PIVOT,TRLG.ARM,RUBBER
5410872
$10.99
17
BOLT(10)
7512557
$7.60
18
ARM,TRLG,LH (Incl. 15, 16)
1822384
Unavailable
18
ARM,TRLG,RH (Incl. 15, 16)
1822386
Unavailable
19
SLIDE,SWAYBAR,5/8
5432331
$28.32
20
STOP,LH,STRG,BLK.
5241569-067
$7.27
20
STOP,RH,STRG,BLK.
5241570-067
$7.27
21
BUSHING-FLANGE
3573909
$2.39
22
WASHER SPECIAL(10)
7556509
$1.59
23
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
24
SHAFT,SPINDLE,TRLG,BLK
6230102-067
$294.99
25
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
26
NUT-5/16-18 NYLOK-Y
7542324
$1.49
27
BOLT(10)
7515462
$8.79
28
SKAG, BLK.
1820318-067
$49.99
29
Plate, Skag
1011829-067
$54.99
30
SKI WELD
1820430-067
Unavailable
31
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
32
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
33
Stop, Rubber
5411083
$12.94
34
BUSHING,PIVOT,(10)
5010158
$19.99
35
ZERK,FITTING,THREADED(10)
7080433
$1.49
36
SHOCK,GAS,IFS,AFX
7041524
Unavailable
37
RETAINER,SPRING,BODY,THREADED
1500063
$44.51
38
RING,SPRING PRELOAD ADJ.
5431734
$52.60
39
SPRING,COMP,IFS
7041550-067
Unavailable
40
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
41
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
41
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
42
BUSHING-RADIUS ROD,(10)
5010127
$7.99
43
ROD,RAD,LOWER,BLK.
1822383-067
Unavailable
44
ROD,RAD,UPPER
1822381-067
Unavailable
45
NUT JAM(10)
7542520
$2.39
46
ROD END
7060163
Unavailable
47
STRAP,SPACER TOP
5211344
$7.27
48
NUT, LOCK,(10)
7542503
$10.39
49
STRAP,SPACER BOTTOM
5211345
$12.99
50
BRACE, PAN
5223997-067
Unavailable
51
RIVET(50)
7621452
$1.49
52
NUT FLEX,(10)
7542703
Unavailable
53
ROD END Substituted by 7061027
7060162
$48.56
54
NUT-JAM(10)
7542711
$2.39
