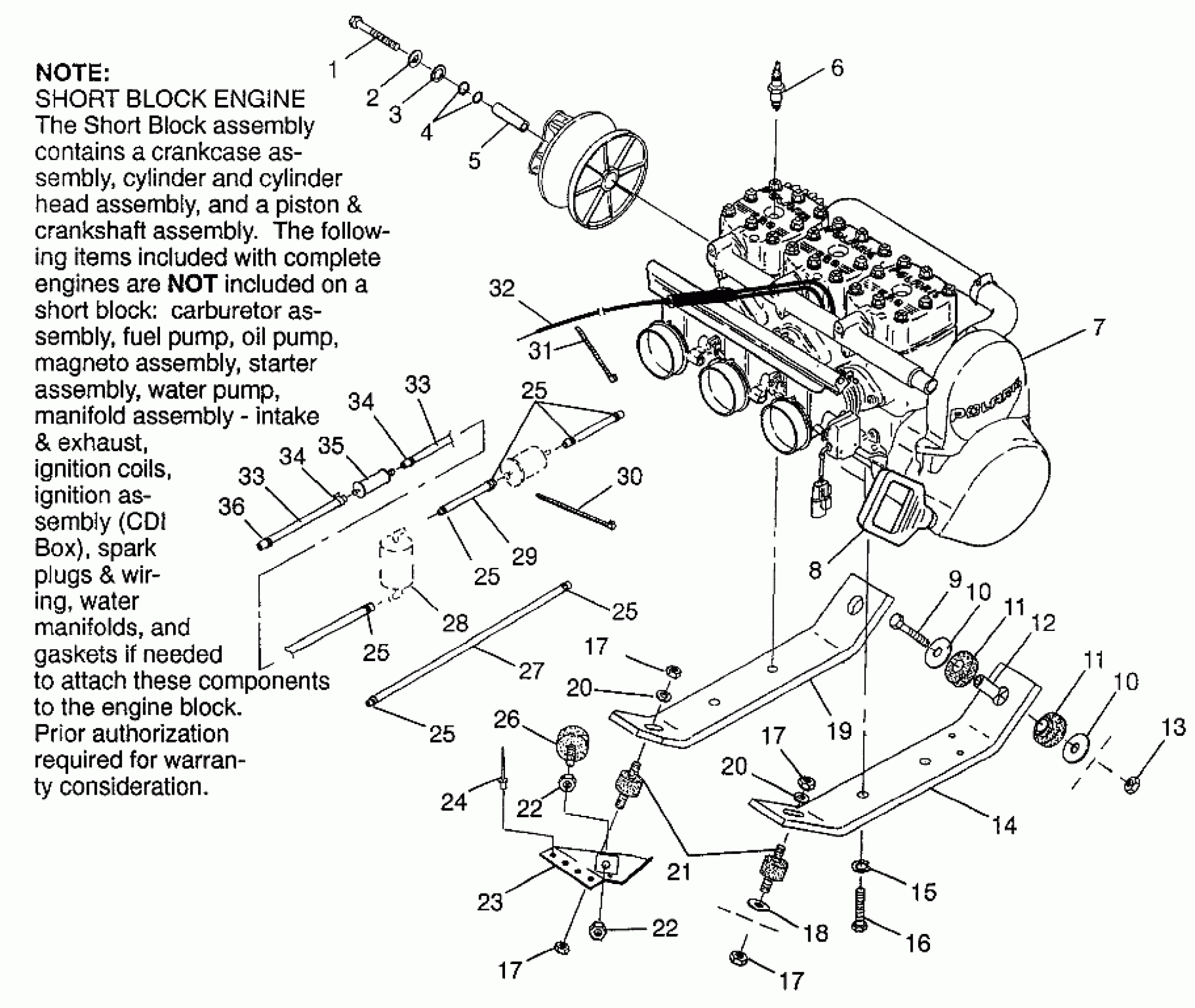

Polaris RXL - 0976768 ENGINE MOUNTING RXL 0976768 (4938523852C003) Diagram
#
1
BOLT(10)
7512565
$19.99
2
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
3
WASHER,CLUTCH RETAIN.
5010287
$12.99
4
O RING,(10)
5410507
$1.49
5
SPACER,CLUTCH BOLT
5020513
$44.99
6
SPARKPLUG(8)
3070165
$3.99
7
ENG.(S.B.)EC65PL-05/06 [No Longer Available]
3084627
Unavailable
8
HANDLE,RECOIL Substituted by 5431499-070
5431499
Unavailable
9
SCREW(10)
7512530
$5.59
10
WASHER(10)
7555740
$1.59
10
WASHER(10)
7555740
$1.59
11
MOUNT, ENGINE
5410390
Unavailable
11
MOUNT, ENGINE
5410390
Unavailable
12
SPACER, (MTR.MT.)
5332778
Unavailable
13
NUT,FLANGE(10)
7542522
$5.59
14
PLATE,RH,MTR.MT.
5240694
Unavailable
15
WASHER LOCK(10)
7553101
$3.99
16
BOLT(10)
7512539
$3.99
17
NUT,FLEXLOCK,(10)
7547008
$6.39
17
NUT,FLEXLOCK,(10)
7547008
$6.39
17
NUT,FLEXLOCK,(10)
7547008
$6.39
17
NUT,FLEXLOCK,(10)
7547008
$6.39
18
WASHER,FLAT(10)
7555915
$3.19
19
PLATE,LH,MTR.MT.
5240693
Unavailable
20
WASHER(10) Substituted by 7555806
7555720
$0.79
20
WASHER(10) Substituted by 7555806
7555720
$0.79
21
MOUNT,ENGINE
3110062
Unavailable
22
NUT-LOCK(10)
7542122
$1.49
22
NUT-LOCK(10)
7542122
$1.49
23
LIMITER,TORQUE,BLK.
1012235-067
Unavailable
24
RIVET-3/16-.090-.290
7661637
$1.49
25
CLAMP,HOSE(SCREW TYPE)
7080417
$9.59
25
CLAMP,HOSE(SCREW TYPE)
7080417
$9.59
25
CLAMP,HOSE(SCREW TYPE)
7080417
$9.59
25
CLAMP,HOSE(SCREW TYPE)
7080417
$9.59
25
CLAMP,HOSE(SCREW TYPE)
7080417
$9.59
26
STOP,TORQUE,COARSE,1.94 DIA
3110063
$29.99
27
FUEL LINE, 5 FT.
8450045-153
Unavailable
28
Asm., Fuel Pump (See Pg. A39, Ref. 1)
-------
Unavailable
29
FUEL LINE, 5 FT.
8450044-153
Unavailable
30
CLIP, BAND (A.T.S.)
3084111
Unavailable
31
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
32
CABLE,THROTTLE,SINGLE
7080555
Unavailable
33
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
33
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
34
STRAP, PANDUIT Substituted by 7080003
7080527
Unavailable
34
STRAP, PANDUIT Substituted by 7080003
7080527
Unavailable
35
FILTER FUEL,(10)
2530008
$4.84
36
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
