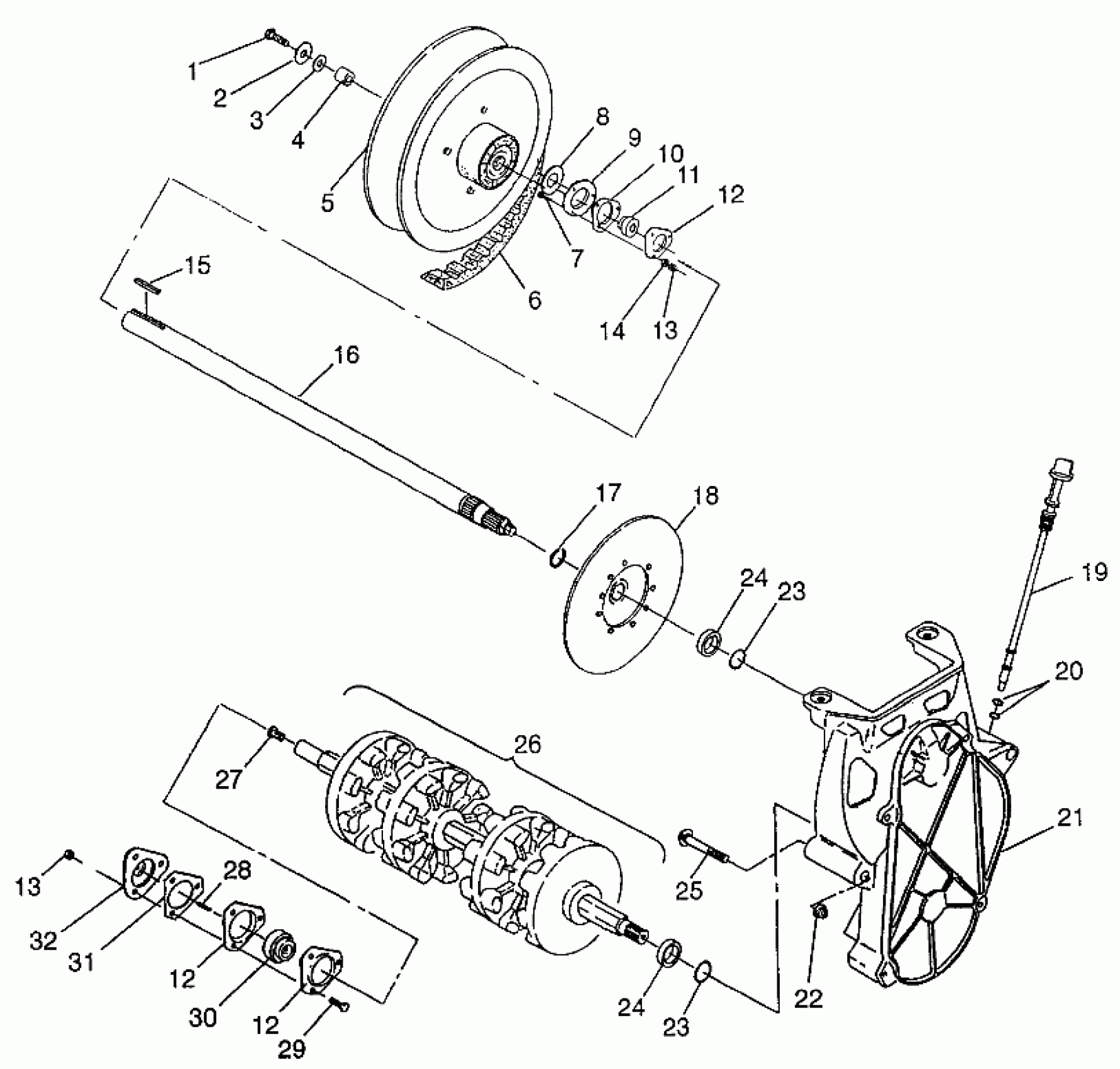

Polaris RXL - 0976768 DRIVE TRAIN RXL 0976768 (4938523852B009) Diagram
#
Description
Price
1
BOLT(10)
7515301
Unavailable
2
WASHER FLAT(10)
7555701
$3.99
3
WASHER(10)
7555734
Unavailable
4
SPACER
5020291
Unavailable
5
Asm., Driven Clutch - Adj. 36 (See Pg. A30, Ref. 16)
-------
Unavailable
6
BELT,DRIVE,28 DEG.(5)
3211070
$114.99
7
BOLT(10) Substituted by 7512377
7512394
Unavailable
8
WASHER SPECIAL(10)
7556509
Unavailable
9
FLANGE RD,RELUBE W/ZERK
5241359
$32.37
10
GASKET,JACKSHAFT,BLK.
5811095
$2.41
11
KIT,HI-PERF,BEARING (Incl. 9)
2200422
Unavailable
12
FLANGETTE
5222751
$16.44
12
FLANGETTE
5222751
$16.44
12
FLANGETTE
5222751
$16.44
13
NUT-5/16-18 NYLOK-Y
7542324
$1.49
13
NUT-5/16-18 NYLOK-Y
7542324
$1.49
14
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
15
KEY(10)
7721116
$12.94
16
JACKSHAFT,BLK. Substituted by 1332201 (Incl. 17)
1332201-067
Unavailable
17
RING, RETAINING(10)
7710422
$3.99
18
DISC ASM, BRAKE
1910086
Unavailable
19
DIPSTICK Substituted by 1332143
5431419
Unavailable
20
O-RING
5410675
$1.60
21
Chaincase, Vented (See Pg. A22, Ref. 23)
-------
Unavailable
22
NUT(10)
7542423
$3.99
23
O RING,(10)
5410613
$1.99
23
O RING,(10)
5410613
$1.99
24
SLEEVE, SEAL
5020588
$23.99
24
SLEEVE, SEAL
5020588
$23.99
25
BOLT(10)
7515428
$4.79
26
DRIVESHAFT ASM,HD,9T,4DR (Incl. 27)
1590251
Unavailable
27
BUSHING METAL SPEEDO
3280019
$11.99
28
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
29
BOLT(10)
7512331
$3.99
30
BEARING
3514517
Unavailable
31
GASKET,DRIVE ADAPTOR,(10)
5830012
$2.41
32
ADAPTER,DRIVE,W/ZERK
3280116
$101.17
