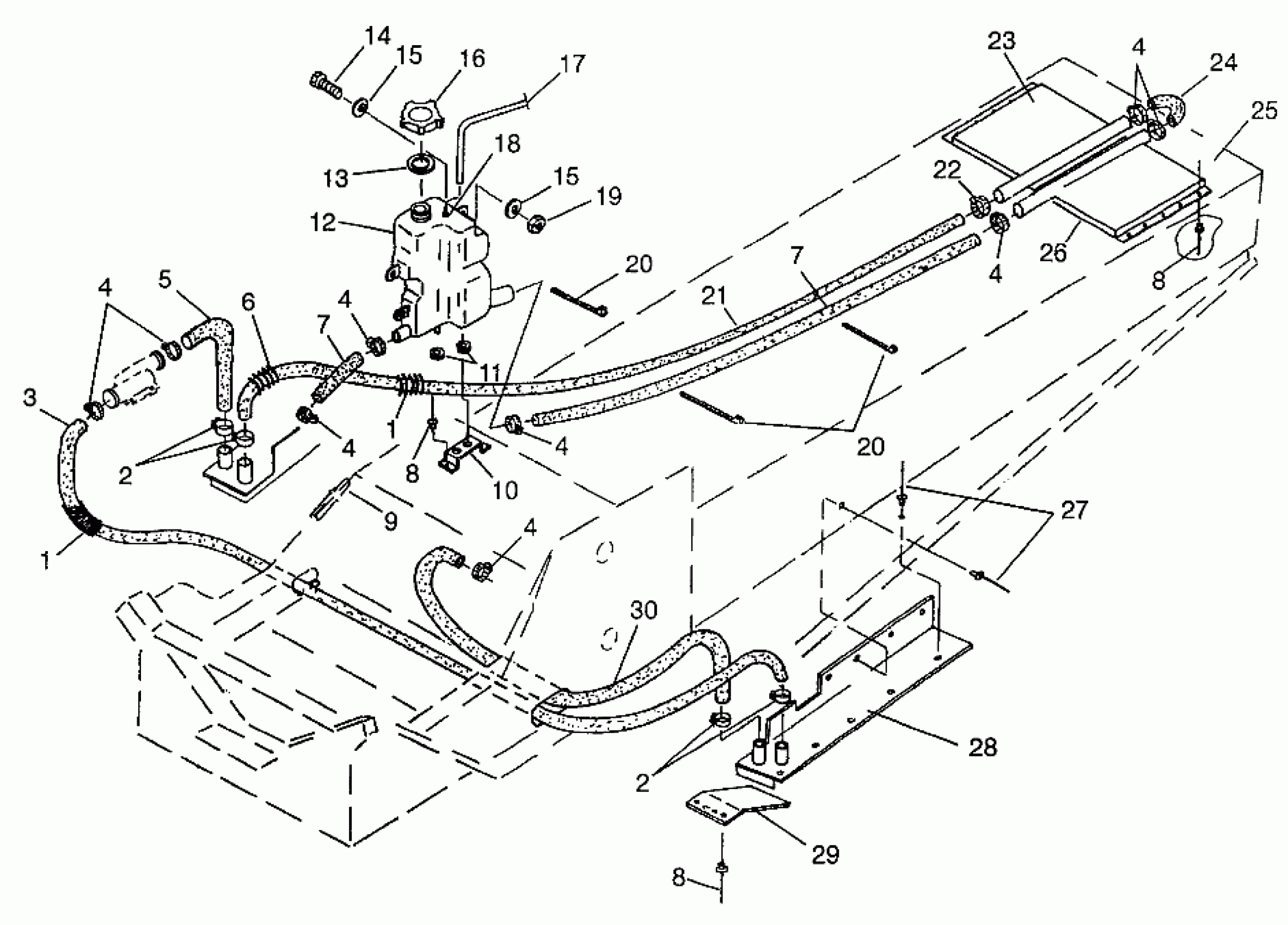

Polaris RXL - 0976768 COOLING SYSTEM RXL 0976768 (4938523852B007) Diagram
#
Description
Price
1
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
1
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
2
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
2
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
3
HOSE,CROSS./BRAKE COOLER
5410795
Unavailable
4
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
4
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
4
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
4
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
4
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
4
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
4
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
5
HOSE,BRK.COOL.SIDE
5410705
$27.19
6
SPRING,HOSE RETAINER
7041079
$4.95
7
HOSE,(1" X 10 FT.)
8450048-305
Unavailable
7
HOSE,(1" X 10 FT.)
8450048-305
Unavailable
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
9
TRIM,EDGE,6FT,BLACK [No Longer Available]
5521131
Unavailable
10
BRKT,SURGE TANK
5240630
Unavailable
11
GROMMET RUBBER
5410021
Unavailable
12
TANK,SURGE,COOLANT
5431487
$37.11
13
GASKET-OIL CAP
5810141
$2.39
14
BOLT(10)
7512240
$3.99
15
WASHER,WROUGHT(10)
7558302
$1.59
15
WASHER,WROUGHT(10)
7558302
$1.59
16
CAP, SURGETANK
5431433
Unavailable
17
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
18
FITTING,90 DEG,1/8,(10)
7052095
$4.79
19
NUT-LOCK(10)
7542122
$1.49
20
STRAP, BLK
7080272
Unavailable
20
STRAP, BLK
7080272
Unavailable
21
HOSE,SIDE COOL/REAR
5410961
Unavailable
22
CLAMP,HOSE,(10) Substituted by 7080843
7080652
Unavailable
23
EXCHANGER,R.COOLING
2511301
$226.99
24
HOSE,COOLING
5410758
Unavailable
25
FOAM,SEAL,R.COOLER
5811082
Unavailable
26
TAPE,35FT,SEAL,R.COOL.
5811252
Unavailable
27
RIVET,INTERLOCK,B(50)
7661638
$1.49
28
COOLING WELD,LH,SIDE,LT
2511250
Unavailable
28
COOLING WELD,RH,SIDE,LT
2511251
$205.99
29
GUARD, COOL.EXT.
5222863
$32.99
30
HOSE,SIDE COOL./ENG.
5410796
Unavailable
