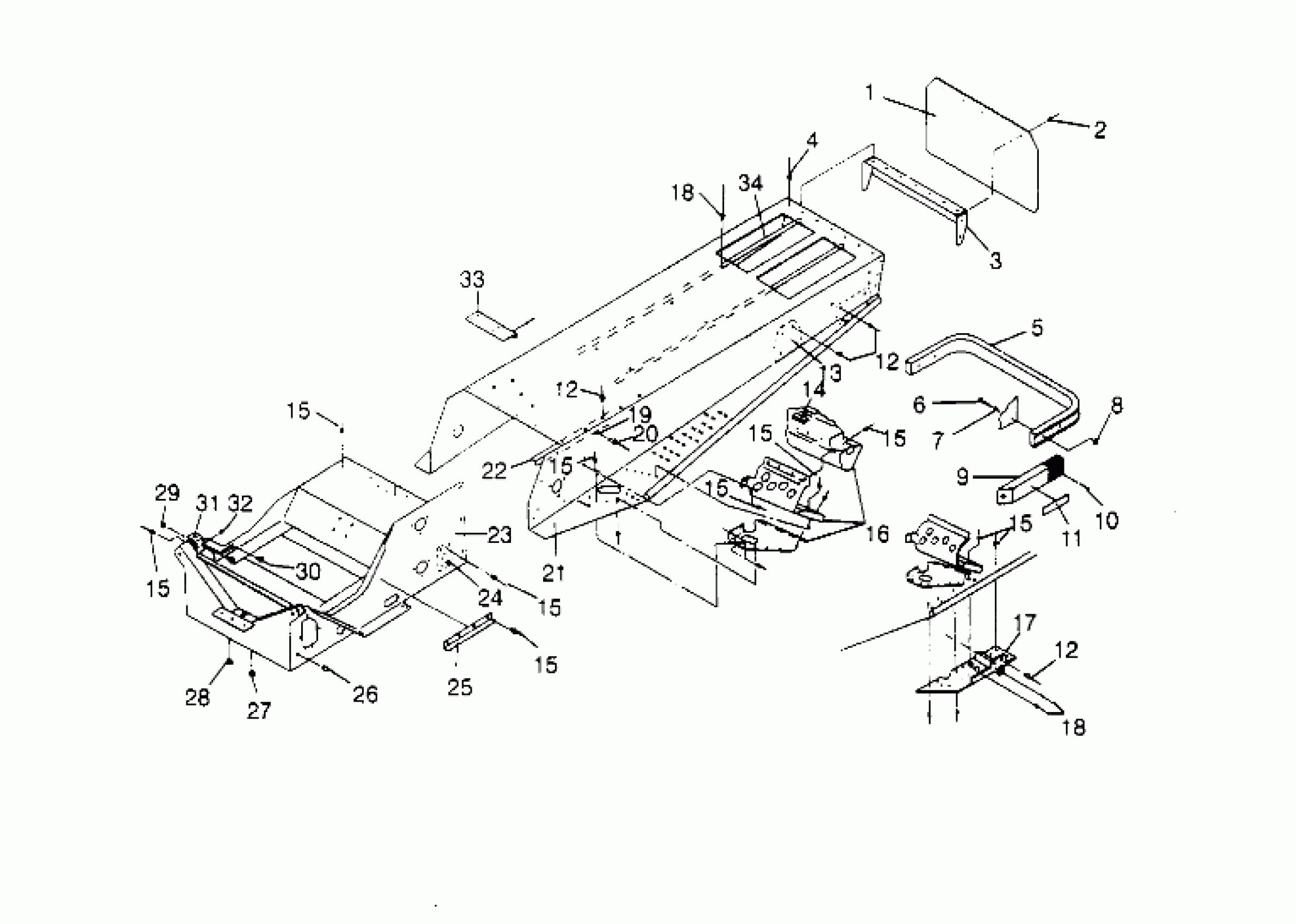

Polaris RXL - 0956168 TUNNEL ASSEMBLY RXL 0956768 (4930783078A006) Diagram
#
1
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
2
POP RIVET(50)
7621418
$1.49
3
PANEL,TUNNEL-BACK,BLK.
5240599-067
Unavailable
4
RIVET ,(50)
7661829
Unavailable
5
BUMPER,REAR,BLK.
5224334-067
Unavailable
6
BOLT(10)
7512240
$3.99
7
WASHER(10)
7558301
$1.49
8
NUT-LOCK(10)
7542122
$1.49
9
CAP, BUMPER, BLK.
5430930-070
Unavailable
10
SCREW(10)
7511863
$1.99
11
REFLECTOR RED
2670070
$9.91
12
RIVET,(50)
7661825
$1.49
12
RIVET,(50)
7661825
$1.49
12
RIVET,(50)
7661825
$1.49
13
MT,LH,REAR SUSP,BLK Substituted by 1012431-067
1012265-067
$18.89
13
MT,RH,REAR SUSP,BLK Substituted by 1012432-067
1012266-067
Unavailable
14
EXTRUSION,CLUTCHGUARD
5521238
$6.46
15
RIVET,INTERLOCK,B(50)
7661638
$1.49
15
RIVET,INTERLOCK,B(50)
7661638
$1.49
15
RIVET,INTERLOCK,B(50)
7661638
$1.49
15
RIVET,INTERLOCK,B(50)
7661638
$1.49
15
RIVET,INTERLOCK,B(50)
7661638
$1.49
15
RIVET,INTERLOCK,B(50)
7661638
$1.49
15
RIVET,INTERLOCK,B(50)
7661638
$1.49
15
RIVET,INTERLOCK,B(50)
7661638
$1.49
15
RIVET,INTERLOCK,B(50)
7661638
$1.49
16
FOOTREST,LH,BLK.
1012263
Unavailable
16
FOOTREST,RH,EFI,BLK.
1012273
Unavailable
17
MT,TRLG.ARM,LH,BLK.
1012054-067
Unavailable
17
MT,TRLG.ARM,RH,BLK.
1012055-067
Unavailable
18
RIVET-3/16-.090-.290
7661637
$1.49
18
RIVET-3/16-.090-.290
7661637
$1.49
19
SNAP-MALE(10)
7080227
Unavailable
20
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
21
TUNNEL ASM,LIQ,LT,BLK. Substituted by 1012384
1012215
Unavailable
22
BRACE,TUNNEL REINF. Substituted by 5240242
5240265
Unavailable
23
BULKHEAD, BLK.
1012234-067
$396.83
24
MOUNT,RH,F.SUSP.BLK.
1012270-067
$66.99
24
MOUNT,LH,F.SUSP.BLK.
1012269-067
$66.99
25
GUARD,ADAPTER,DRIVE
5240441
Unavailable
26
PLUG, HOLE(10)
7080416
$5.65
27
PLUG-HOLE
7080398
$4.84
28
BUSHING,OPEN/CLOSE(10)
7080399
$2.39
29
NUT LOCK(10)
7542321
$1.49
30
SCREW(10)
7512307
$3.99
31
SUPPORT,MUFFLER,BLK. Substituted by 1260724-067
1260657-067
Unavailable
32
RIVET(50)
7621452
$1.49
33
BRKT, TOOL BOX
5220973
Unavailable
34
MOUNT,WEAR STRIP
5131009
Unavailable
