SEAT and GAS TANK ASSEMBLY RXL 0956768 (4930783078A007)

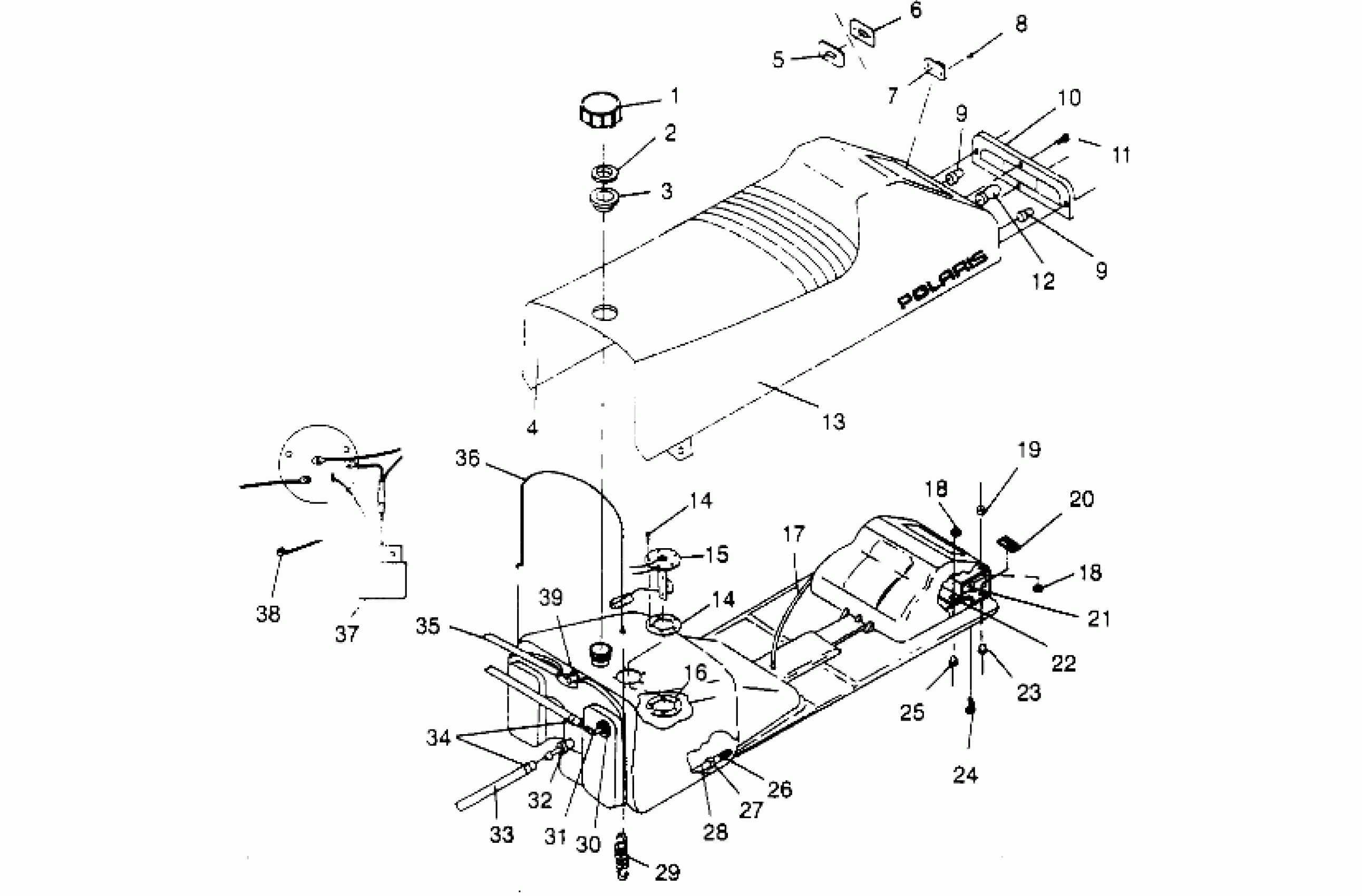

Polaris RXL - 0956168 SEAT and GAS TANK ASSEMBLY RXL 0956768 (4930783078A007) Diagram
#
1
CAP,FUELTANK,W/GASKET
2511226
Unavailable
2
GASKET, GAS CAP
5810513
$8.89
3
GROMMET,FUELTANK
5410842
Unavailable
4
SEAT ASM. (Incl. 11, 12, 17-24)
2681782
$416.99
5
GROMMET,RELATCH,1",BOTT.(10)
7080550
Unavailable
6
GROMMET,RELATCH,1",TOP(10)
7080549
Unavailable
7
TWISTLOCK,RELATCH,1",W/HOLE(10)
7080548
Unavailable
8
RIVET(50)
7621339
$1.49
9
BULB,TAILLIGHT(10)
4030024
$4.84
9
BULB,TAILLIGHT(10)
4030024
$4.84
10
LENS,TAILLIGHT
5430423
Unavailable
11
SCREW(10)
7511840
Unavailable
12
Bulb, Brakelight
4030045
Unavailable
13
COVER, SEAT
2681783
Unavailable
14
HDWE.PKG,SEND.UNIT
2410012
Unavailable
14
HDWE.PKG,SEND.UNIT
2410012
Unavailable
15
SEND.UNIT,W/HDWE.PKG.
2410015
Unavailable
16
MTG.FLANGE,FUELTANK Substituted by 5244067
5211308
Unavailable
17
HARNESS,TAILLIGHT
2460398
Unavailable
18
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
18
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
19
RIVET, BLIND(50)
7621467
$1.49
20
NUT,RETAINER-WELD.(10)
7542147
$17.59
21
COVER,T/L PROTECTOR
5431436
$21.43
22
HOUSING,TAILLIGHT Substituted by 5433341
5431545
Unavailable
23
RIVET(50)
7621301
$3.99
24
SCREW(10)
7512242
$2.39
25
RIVET(50)
7621460
$1.49
26
PICKUP,FUEL,W/STRAINER
7052081
Unavailable
27
RING, COMPRESSION(10)
7080402
$1.60
28
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
29
SPRING-EXHAUST(10)
7042029
$4.84
30
GROMMET-TANK FITTING(10)
7052028
$6.39
31
FITTING,TANK OUTLET(5/16)
7052059
Unavailable
32
FITTING - OUTLET(10)
7052023
$24.99
33
FUEL LINE, 5 FT.
8450045-153
Unavailable
34
CLAMP, HOSE
7080490
Unavailable
35
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
36
CABLE,TANK RETENTION
7080473
Unavailable
37
RECTIFIER, FUEL (LR-51)
4060094
$17.46
38
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
39
FITTING,90 DEG,1/8,(10)
7052095
$4.79
