OIL TANK / AIR BOX ASSEMBLY RXL 0956768 (4930783078C005)

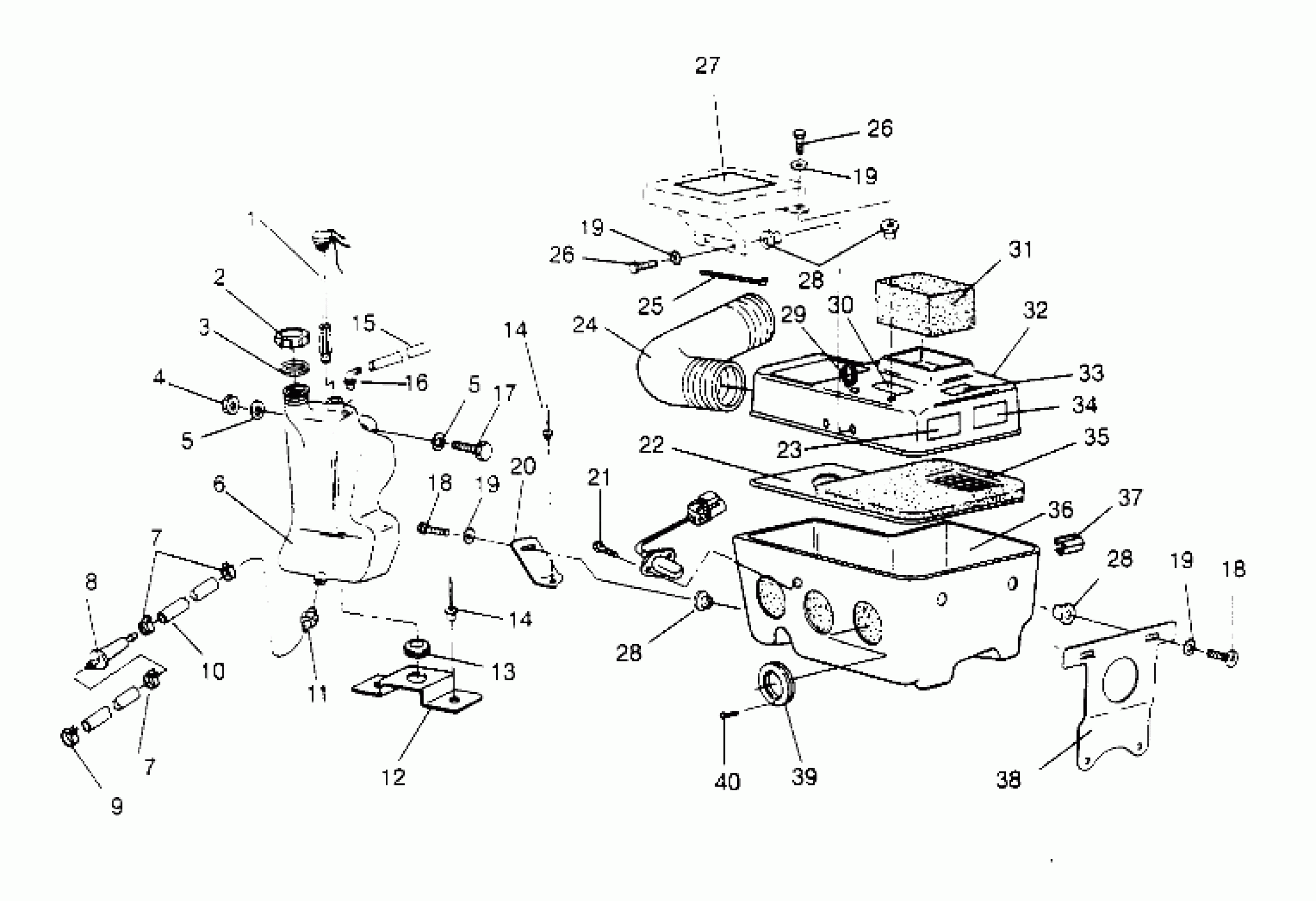

Polaris RXL - 0956168 OIL TANK / AIR BOX ASSEMBLY RXL 0956768 (4930783078C005) Diagram
#
1
SENSOR,OIL LEVEL,W/CONN.
4040040
$72.84
2
CAP,OIL TANK
5430779
$14.56
3
GASKET-OIL CAP
5810141
$2.39
4
NUT-LOCK(10)
7542122
$1.49
5
WASHER,WROUGHT(10)
7558302
$1.59
5
WASHER,WROUGHT(10)
7558302
$1.59
6
Tank, Oil
5431437
Unavailable
7
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
7
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
8
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
9
CLAMP-HOSE,(10)
7080236
$1.59
10
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
11
FITTING, OUTLET
7052042
$8.99
12
BRACKET
5223985
Unavailable
13
GROMMET RUBBER
5410021
Unavailable
14
RIVET-3/16-.090-.290
7661637
$1.49
14
RIVET-3/16-.090-.290
7661637
$1.49
15
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
16
FITTING,90 DEG,1/8,(10)
7052095
$4.79
17
BOLT(10)
7512103
$3.19
18
SCREW(10)
7512279
$1.49
18
SCREW(10)
7512279
$1.49
19
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
19
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
19
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
19
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
20
BRKT,AIR SILENCER
5240823-067
Unavailable
21
BOLT(10) Substituted by 7527815
7511871
Unavailable
22
PLATE,AIR SILENCER
5850075
$24.27
23
DECAL, GREASING [No Longer Available]
7073426
$7.27
24
HOSE-INLET
5410251
Unavailable
25
CLIP
7080277
$1.24
26
BOLT(10)
7512261
$4.99
26
BOLT(10)
7512261
$4.99
27
DECAL,"OXYGEN.FUEL"(RXL)
7074911
Unavailable
28
NUT-WELL(10)
7541923
$5.59
28
NUT-WELL(10)
7541923
$5.59
28
NUT-WELL(10)
7541923
$5.59
29
CLAMP,WIRE ROUTING(10)
7080409
$2.39
30
DECAL,FOAM,CAUTION [No Longer Available]
7072907
Unavailable
31
INTAKE ASM,FOAM,(EFI)
1253113
Unavailable
32
COVER,SILENCER(DRILLED)
5431220
Unavailable
33
DECAL,INTAKE SILENCER [No Longer Available]
7072908
Unavailable
34
DECAL,ADJ.DRIVEN CLUTCH
7073820
Unavailable
35
BAFFLE ASM.
1253104
Unavailable
36
SILENCER,INTAKE,DRLD.
5431948
Unavailable
37
CLIP, AIR BOX,(10)
7670055
$7.99
38
BRKT,LH,AIR SILENCER,BLK.
5240856-067
Unavailable
39
BOOT, RELIEVED
5410585
Unavailable
40
SCREW,SELF-TAP(10)
7522004
Unavailable
