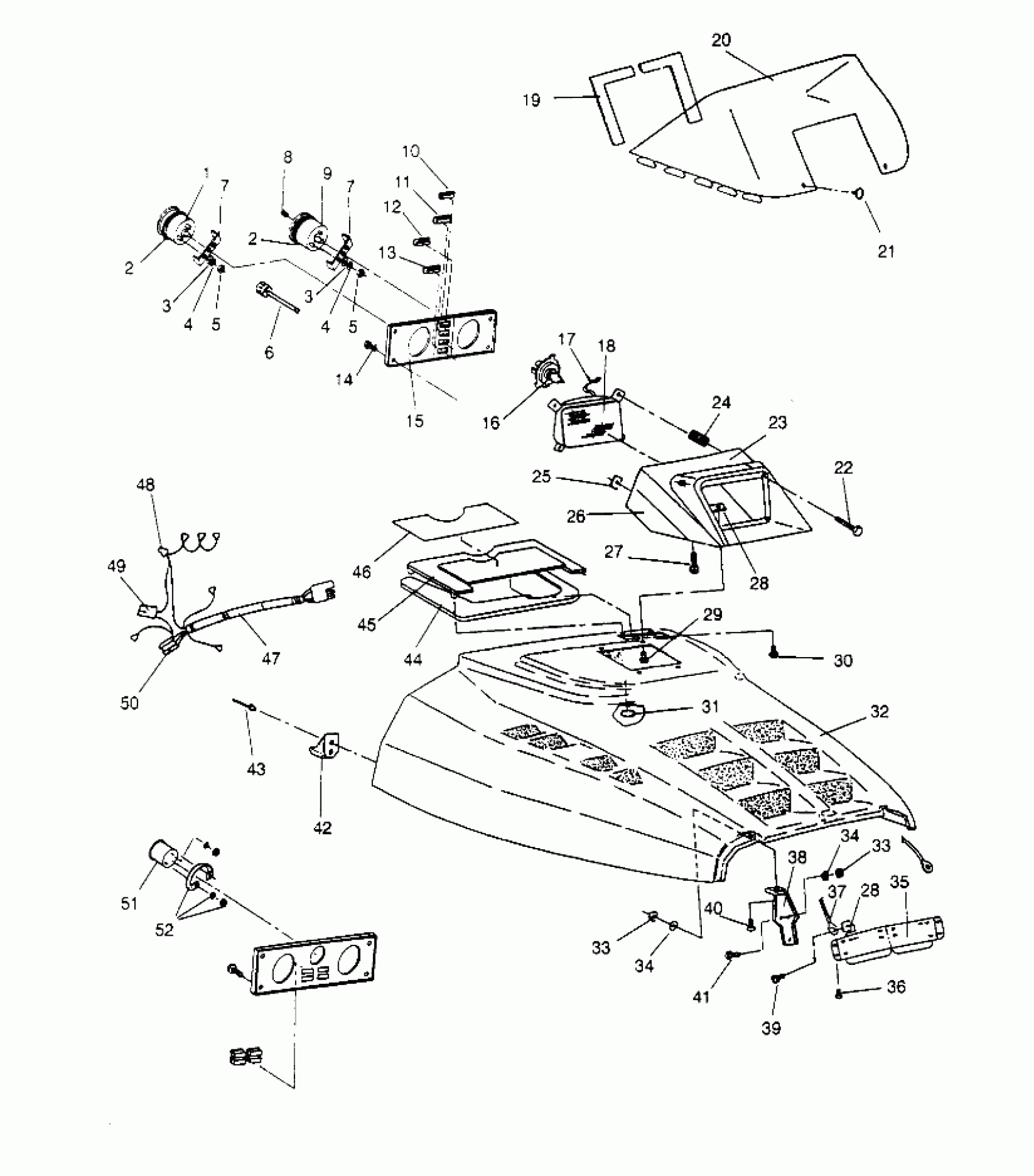

Polaris RXL - 0956168 HOOD ASSEMBLY RXL 0956768 (4930783078A010) Diagram
#
1
BULB TAILLIGHT(10)
4030015
$4.03
1
TACH,3P,BACKLIT (Incl. 7, 3-5)
3280192
Unavailable
2
CUSHION,TACH/SPEEDO,RUBBER
3280151
Unavailable
2
CUSHION,TACH/SPEEDO,RUBBER
3280151
Unavailable
3
WASHER,FLAT,(10)
3280157
$2.39
3
WASHER,FLAT,(10)
3280157
$2.39
4
WASHER,SPLIT LOCK
3280156
$1.49
4
WASHER,SPLIT LOCK
3280156
$1.49
5
Nut
3280158
Unavailable
5
Nut
3280158
Unavailable
6
CABLE,SPEEDO.
3280094
$60.70
7
BRKT,SPEEDO/TACH
3280153
Unavailable
7
BRKT,SPEEDO/TACH
3280153
Unavailable
8
KNOB,TRIP ODOMETER,LH THD.
3280186
$9.70
9
SPEEDO ASM,120MPH.BACKLIT (Incl. 7, 3-5)
3280188
Unavailable
10
INDICATOR'TEMP'WARN.
4040011
$32.37
11
INDICATOR'OIL/BRK'WARN.
4040034
$12.17
12
INDICATOR'HI-BEAM'WARN.
4040013
Unavailable
13
INDICATOR,'ACC'WARN.
4040014
Unavailable
14
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
15
BEZEL, INSTRUMENT
5431308
Unavailable
16
BULB,QUARTZ.H/L,INDY
2870448
$24.99
17
RETAINER,H/L BULB
4032063
Unavailable
18
HEADLIGHT ASM.
4032040
Unavailable
19
PAD,W/S,LH,BLACK
5810437
Unavailable
19
PAD,W/S,RH,BLACK
5810438
$1.67
20
WINDSHIELD,LOW,BLK.
5431447
Unavailable
21
RIVET,(PLASTIC LOK)(50) Substituted by 7621509
7621505
$1.19
22
SCREW, ADJ.(10)
4032003
Unavailable
23
HSG,TOP(MOD.),BLK.
5431364
$23.59
24
SPRING-ADJ
4032002
Unavailable
25
NUT, SPEED(10)
7670056
Unavailable
26
HSG,INST.BOTT.BLK.
5430922-070
Unavailable
27
SCREW(10)
7512009
Unavailable
28
NUT, SPEED(10)
7670057
$1.49
28
NUT, SPEED(10)
7670057
$1.49
29
SCREW, SEMS(10)
7512283
$3.99
30
SCREW(10)
7511840
Unavailable
31
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
32
HOOD ASM,LIQ,BLK.MET. (Incl. Foam, Foil & Warning Decals)
2631574-177
Unavailable
33
NUT-LOCK(10)
7542122
$1.49
33
NUT-LOCK(10)
7542122
$1.49
34
WASHER,WROUGHT(10)
7558302
$1.59
34
WASHER,WROUGHT(10)
7558302
$1.59
35
PLATE,RE-INF.,(HD.)
5222105
$49.51
36
SCREW(10)
7511858
$3.99
37
CABLE,HOOD RETAINER
7080368
$10.51
38
HINGE ASM,HD,BLK
2635005-067
$16.67
39
SCREW(10)
7511989
Unavailable
40
BOLT-CARRIAGE(10)
7512263
$3.99
41
BOLT(10)
7512193
$2.39
42
CUP, HOOD LATCH,(10)
5430733
$4.84
43
RIVET(50)
7621334
$1.49
44
SEAL, INTAKE
5810597
Unavailable
45
PANEL ASM,INTAKE,MET.BLK. Substituted by 2620095-177
2620078-177
Unavailable
46
DECAL,DASH WARNING Substituted by 7075457
7074883
Unavailable
47
HARNESS,HEADLIGHT(RXL)
2460436
$26.78
48
HOUSING (Tach. Conn.)
4020052
Unavailable
49
HOUSING (Headlight)
4020114
Unavailable
50
HOUSING (Speedo., Conn.)
4020115
$1.59
51
INDICATOR,FUEL LEVEL
3280118
$53.59
52
HDWE.PKG,FUEL INDIC.
3280119
$24.79
