FRONT SUSPENSION and SKI RXL 0956768 (4930783078B002)

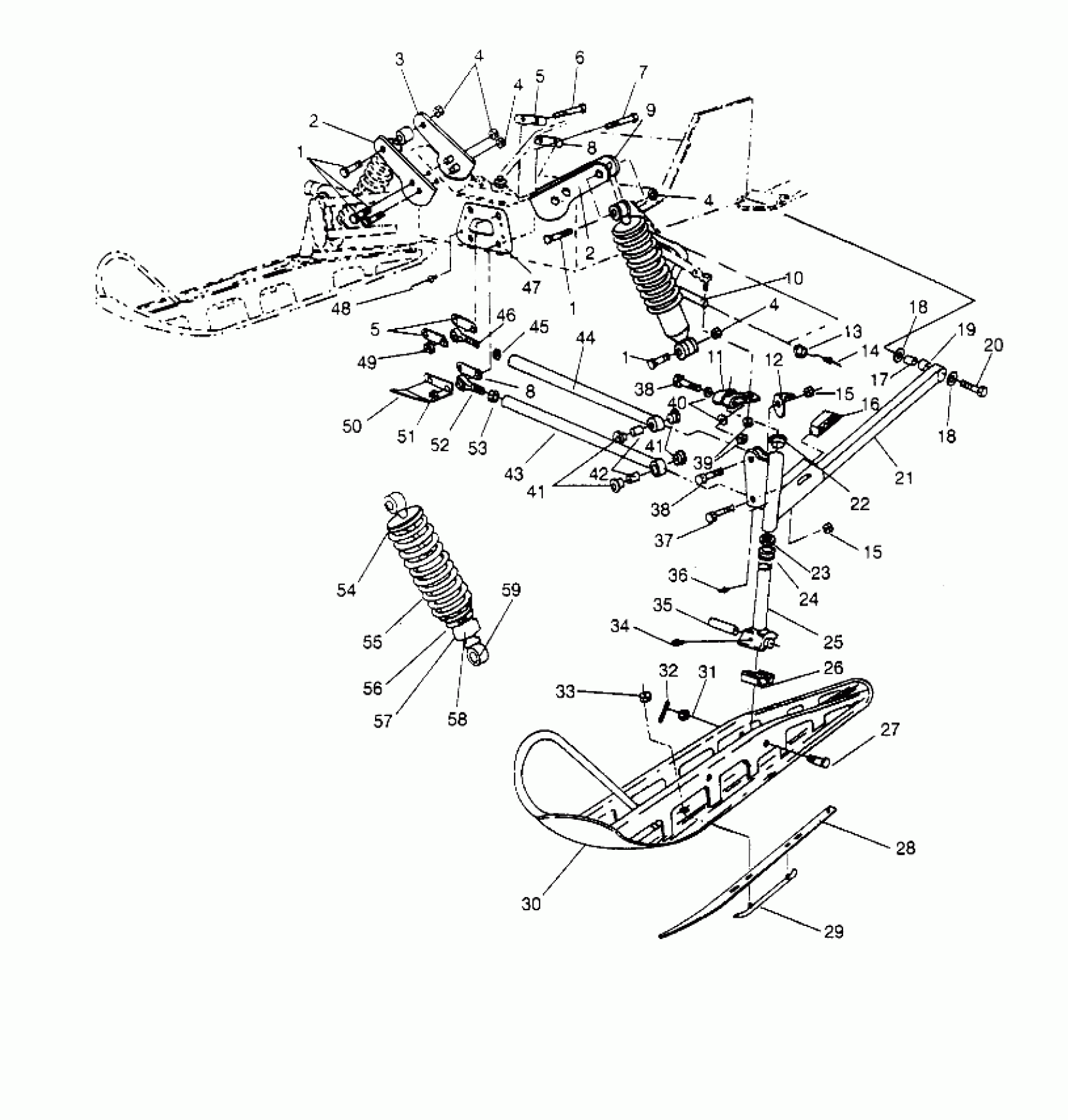

Polaris RXL - 0956168 FRONT SUSPENSION and SKI RXL 0956768 (4930783078B002) Diagram
#
1
BOLT(10) Substituted by 7515415
7515515
Unavailable
1
BOLT(10) Substituted by 7515415
7515515
Unavailable
1
BOLT(10) Substituted by 7515415
7515515
Unavailable
2
PLATE,SHOCK MT.EXT,BLK.
5211449-067
Unavailable
2
PLATE,SHOCK MT.EXT,BLK.
5211449-067
Unavailable
3
MT,RH,SHOCK EXT.BLK.
1012053-067
Unavailable
4
NUT, NYLOC(10)
7542453
Unavailable
4
NUT, NYLOC(10)
7542453
Unavailable
4
NUT, NYLOC(10)
7542453
Unavailable
4
NUT, NYLOC(10)
7542453
Unavailable
5
STRAP,SPACER TOP
5211344
$7.27
5
STRAP,SPACER TOP
5211344
$7.27
6
BOLT(10)
7512551
Unavailable
7
BOLT(10)
7512678
$19.99
8
STRAP,SPACER BOTTOM
5211345
$12.99
8
STRAP,SPACER BOTTOM
5211345
$12.99
9
MT,LH,SHOCK EXT.BLK.
1012052-067
Unavailable
10
BAR,SWAY,BLK,(LT)
5224532-067
Unavailable
11
ARM,STEERING,BLK. Substituted by 1012423-067
5222873-067
Unavailable
12
STOP,LH,STRG,BLK.
5240463-067
Unavailable
12
STOP,RH,STRG,BLK.
5240464-067
Unavailable
13
BUSHING,SWAYBAR
5410386
Unavailable
14
RIVET(50)
7621433
$1.49
15
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
15
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
16
SLIDE,SWAYBAR,5/8",LT
5431736
Unavailable
17
PIVOT,TRLG.ARM,RUBBER
5410872
$10.99
18
WASHER(10)
7555721
$1.49
18
WASHER(10)
7555721
$1.49
19
TUBE, BUSHING
5010310
$9.70
20
BOLT(10)
7512557
$7.60
21
ARM,TRLG,LH. (Incl. 17, 19)
1822246
Unavailable
21
ARM,TRLG,RH. (Incl. 17, 19)
1822247
$208.29
22
BUSHING-FLANGE
3573909
$2.39
23
WASHER SPECIAL(10)
7556509
$1.59
24
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
25
SPINDLE, BLK.
6230073-067
Unavailable
26
STOP, RUBBER
5521276
Unavailable
27
BOLT(10)
7515462
$8.79
28
Plate, Skag
1011829-067
$54.99
29
SKAG, BLK.
1820318-067
$49.99
30
SKI WELD, BLK
1820332-067
Unavailable
30
SKI (Narrow 48" Width)
1820366-067
Unavailable
31
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
32
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
33
NUT-5/16-18 NYLOK-Y
7542324
$1.49
34
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
35
BUSHING,PIVOT,(10)
5010158
$19.99
36
ZERK,FITTING,THREADED(10)
7080433
$1.49
37
BOLT(10) Substituted by 7515540
7515492
$4.62
38
BOLT(10) Substituted by 7517583
7515491
Unavailable
38
BOLT(10) Substituted by 7517583
7515491
Unavailable
39
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
40
WASHER(10) Substituted by 7555832
7555851
Unavailable
41
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
41
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
42
BUSHING-RADIUS ROD,(10)
5010127
$7.99
43
ROD,RAD,LOW,BLK.
1822170-067
Unavailable
44
ROD,RAD,BLK.
1822168-067
$38.10
45
NUT JAM(10)
7542520
$2.39
46
ROD END, RH Substituted by 7061010
7060155
Unavailable
47
BRACE,BLKHD/STRG,BLK.
5211589-067
Unavailable
48
RIVET-3/16-.090-.290
7661637
$1.49
49
NUT, LOCK,(10)
7542503
$10.39
50
BRACE, PAN
5223997-067
Unavailable
51
NUT FLEX,(10)
7542703
Unavailable
52
ROD END,RH Substituted by 7061011
7060156
Unavailable
53
NUT-JAM(10)
7542711
$2.39
54
RETAINER,SPRING,SLOTTED
5020618
$24.99
55
SPRING, IFS
7041398-156
Unavailable
56
RING, RETAINING(10)
7710424
$0.63
57
Retainer, Spring Body, Threaded (See Pg. )
-------
Unavailable
58
RING,SPRING PRELOAD ADJ.
5431734
$52.60
59
Fox Shock, IFS (See Page )
-------
Unavailable
