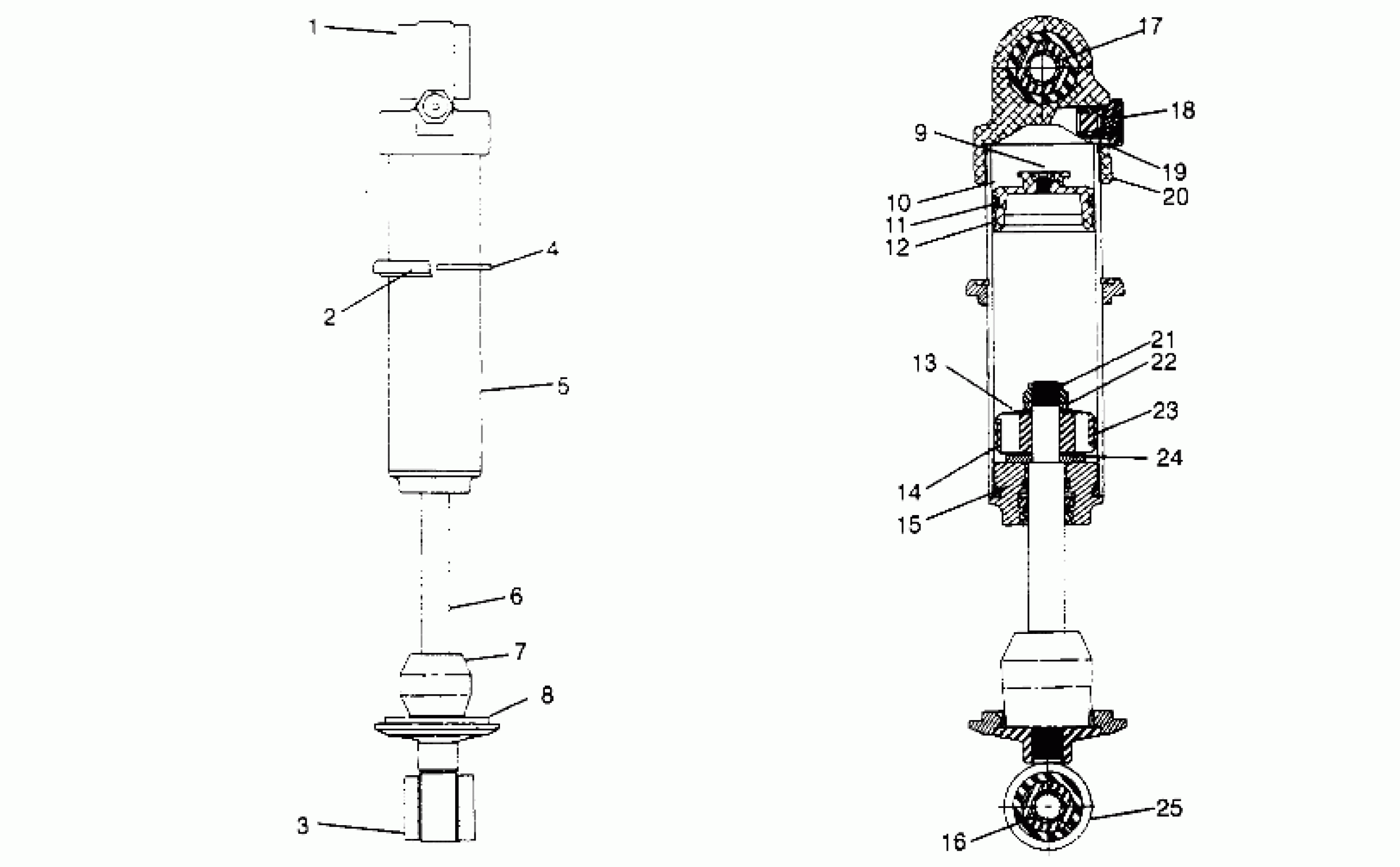

Polaris RXL - 0956168 FOX SHOCK - IFS RXL 0956768 (4930783078D003) Diagram
#
Description
Price
-
SHOCK,GAS,IFS,(LT)
7041385
Unavailable
1
BUSHING,SHAFT END Substituted by 5431540
5432040
$24.99
2
RETAINER, SPRING BODY
5020617
Unavailable
3
BUSHING,SHOCK,.220 Substituted by 1500137
5431540
$24.99
4
RING, RETAINING(10)
7710424
$0.63
5
BODY,WHITE
1500067
Unavailable
6
SHAFT
1500068
Unavailable
7
BUMPER,JOUNCE
5410855
$39.19
8
RETAINER,SPRING,SLOTTED
5020618
$24.99
9
Screw
1500018
$5.56
9
O-RING,DRUM OUTER
1500022
Unavailable
10
PISTON
1500011
$59.99
11
O-RING,ENDCAP,FOX,(10)
1500003
$8.89
12
RING,PISTON,FLOATING,FOX
1500006
$19.99
13
VALVE,SHOCK
1500029
$4.95
13
VALVE,SHOCK
1500033
$4.32
13
VALVE,SHOCK
1500032
$4.95
13
VALVE,SHOCK
1500031
$4.95
13
VALVE,SHOCK
1500028
Unavailable
13
VALVE,SHOCK
1500030
Unavailable
14
VALVE,SHOCK
1500051
Unavailable
15
O-RING,(10).103W-1.299ID
1500020
$10.63
15
O-RING INNER (10)
1500021
$10.99
15
Screw
1500070
$6.39
15
BALL, (FOX)
1500071
$6.76
15
WIPER INNER Substituted by 1500266
1500025
$24.27
15
WIPER,CLR,OUTER
1500024
Unavailable
15
BEARING,W D/U Substituted by 1500145
1500041
Unavailable
15
BEARING ASM,1.15,W/BLEED Substituted by 1500151
1500069
Unavailable
16
BUSHING, (1.16 IN.)
5020613
Unavailable
17
BUSHING, 1.40
5020657
$15.99
18
VALVE ASM,AIR Substituted by 1500014
1500072
Unavailable
18
VALVE ASM,AIR
1500014
$69.99
18
Screw
1500019
$6.39
18
O-RING,OUTER
1500023
$2.84
19
O-RING,BODY,FOX,.139W-1.234ID
1500004
$1.83
20
CAP, BODY
1500073
Unavailable
21
NUT,LOCK
1500016
$12.79
22
BUSHING,BACKUP
1500015
$6.76
23
DAMPER,PISTONRING,FOX
1500002
$31.99
24
PLATE,TOP OUT
1500017
$20.22
25
RETAINER,SPRING,BODY,THREADED (See Pg., Ref. )
1500063
$44.51
25
Eyelet
1500013
$76.89
