CYLINDER ASSEMBLY RXL 0956768 (4930783078C008)

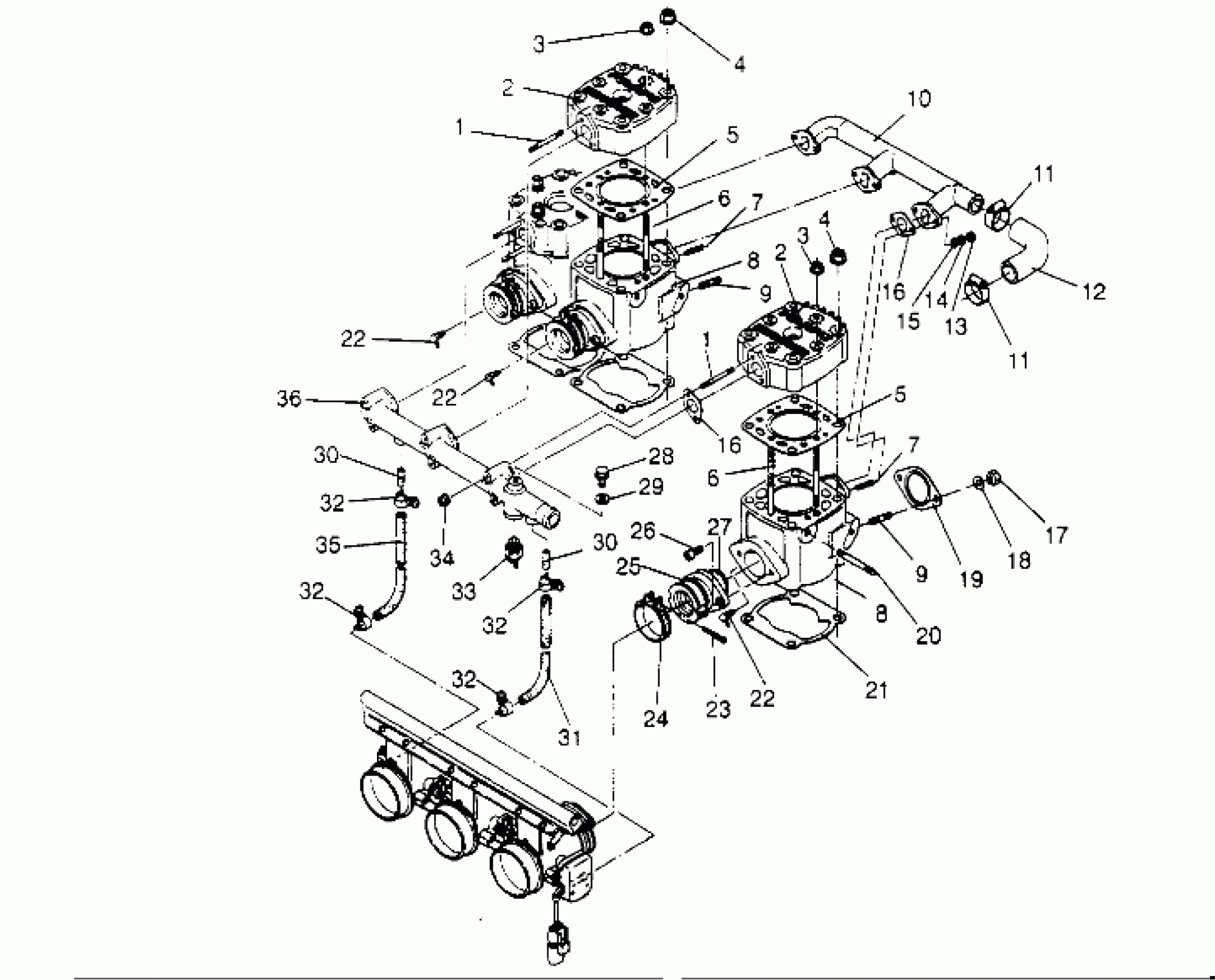

Polaris RXL - 0956168 CYLINDER ASSEMBLY RXL 0956768 (4930783078C008) Diagram
#
1
Stud
3082934
$10.39
1
Stud
3082934
$10.39
2
HEAD, CYLINDER (Incl. 1)
3085036
Unavailable
2
HEAD, CYLINDER (Incl. 1)
3085036
Unavailable
3
NUT-FLANGE(10)
3082910
$2.39
3
NUT-FLANGE(10)
3082910
$2.39
4
NUT-FLANGE(10)
3082911
$1.99
4
NUT-FLANGE(10)
3082911
$1.99
5
GASKET, HEAD
3084376
Unavailable
5
GASKET, HEAD
3084376
Unavailable
6
STUD
3083392
Unavailable
6
STUD
3083392
Unavailable
7
STUD
3082931
Unavailable
7
STUD
3082931
Unavailable
8
CYLINDER (Incl. 6-9)
3084320
Unavailable
8
CYLINDER (Incl. 6-9)
3084320
Unavailable
9
STUD (10)
3080016
$5.75
9
STUD (10)
3080016
$5.75
10
MANIFOLD,WATER INLET
3084493
Unavailable
11
CLAMP, HOSE
3083394
Unavailable
11
CLAMP, HOSE
3083394
Unavailable
12
HOSE-MAIN
3082938
Unavailable
13
NUT(10)
3082939
Unavailable
14
WASHER SPRING(10)
3080077
$2.39
15
WASHER(10)
3080078
Unavailable
16
GASKET(10)
3082937
Unavailable
16
GASKET(10)
3082937
Unavailable
17
NUT(10)
3080285
Unavailable
18
WASHER LOCK ,(10)
3080530
$3.19
19
GASKET,EXHAUST,NA(10) Substituted by 3086757
3084439
Unavailable
20
STUD
3083360
Unavailable
21
GASKET,CYLINDER
3084614
$21.27
22
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
22
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
22
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
23
SCREW,(10)
3081497
$2.39
24
BAND ASM. (Incl. 23)
3084045
Unavailable
25
ADAPTER (Incl. 27)
3084043
Unavailable
26
BOLT
3084044
Unavailable
27
O-RING
3084229
$7.90
28
PLUG, DRAIN
3083767
Unavailable
29
GASKET, ALUM,(10) Substituted by 7555998
3082758
$1.19
30
PIPE, WATER
3084048
Unavailable
30
PIPE, WATER
3084048
Unavailable
31
HOSE, WATER
3084049
Unavailable
32
CLAMP
3084051
Unavailable
32
CLAMP
3084051
Unavailable
32
CLAMP
3084051
Unavailable
32
CLAMP
3084051
Unavailable
33
SWITCH,THERMAL(93 DEG.C.)
3083055
Unavailable
34
NUT, FLANGE(10)
3083856
$2.39
35
HOSE #2, (WATER)
3084050
Unavailable
36
MANIFOLD,WATER OUTLET (Incl. 30)
3084494
Unavailable
