TUNNEL ASSEMBLY RXL 0940768 and RXL TOURING 0940869 (4925062506001A)

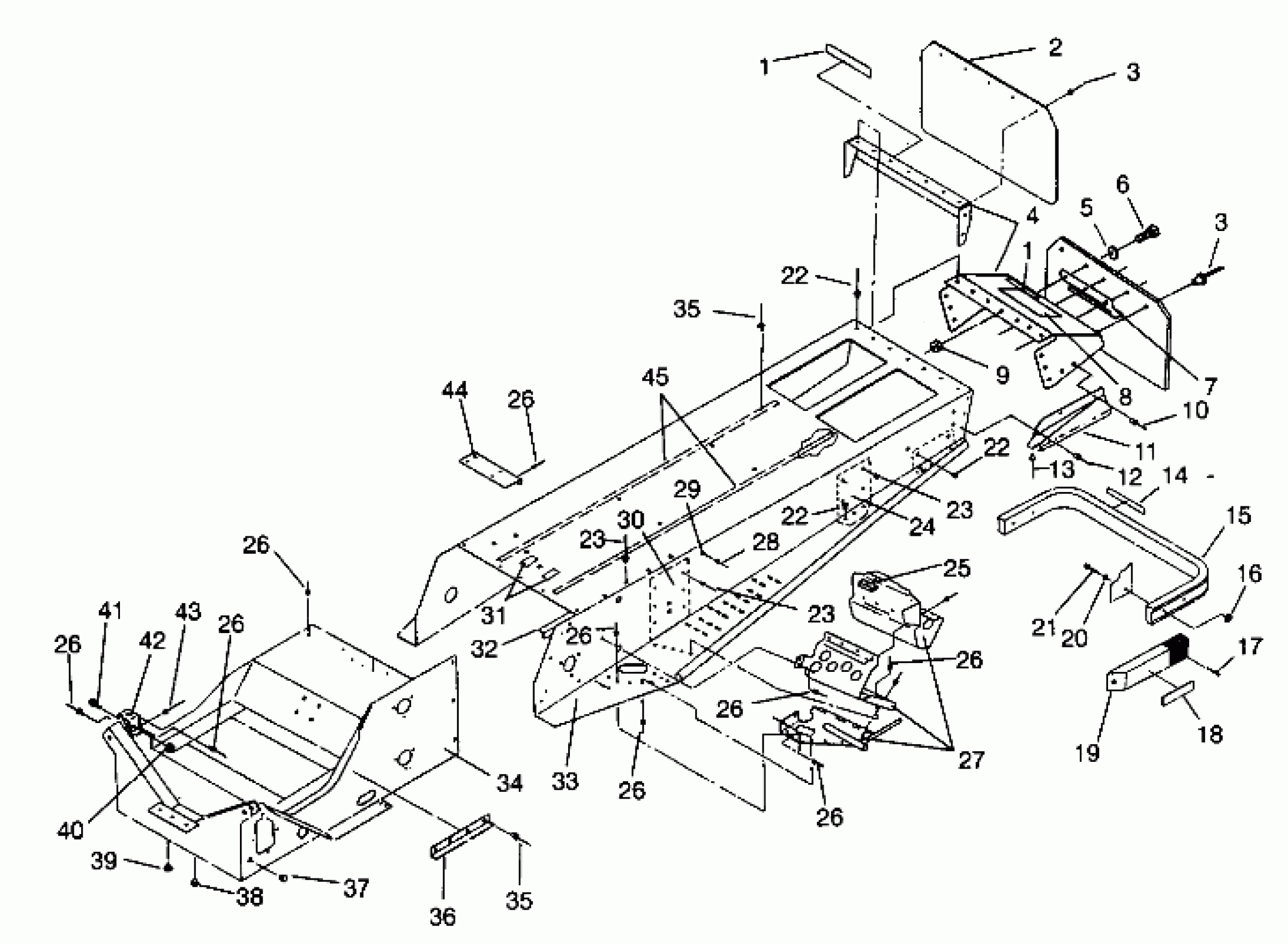

Polaris RXL - 0940768 TUNNEL ASSEMBLY RXL 0940768 and RXL TOURING 0940869 (4925062506001A) Diagram
#
1
DECAL,TRACK/SEAT(CPSC) (Silver)
7074255
Unavailable
1
DECAL,TRACK/SEAT(CPSC) (Silver)
7074255
Unavailable
2
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
3
POP RIVET(50)
7621418
$1.49
3
POP RIVET(50)
7621418
$1.49
4
PANEL,TUNNEL,BACK Substituted by 5220478-067 (RXL)
5220478
Unavailable
4
PANEL,CLOSE-OFF,REAR Substituted by 1011694-067 (Tour.)
1011694
Unavailable
5
WASHER, FLAT(10)
7558201
$5.79
6
SCREW(10)
7511930
$2.39
7
RETAINER, FLAP Substituted by 5241874-067
5222659-067
Unavailable
8
DECAL,'RXL',CLOSE-OFF
7074096
Unavailable
9
NUT(10)
7541925
$1.49
10
RIVET(50)
7621472
$1.49
11
SKIRT,LH,SNOW,BLK.
5431627-070
$26.98
11
SKIRT,RH,SNOW,BLK.
5431645-070
$31.35
12
RIVET,3/16X.402(50) (RXL)
7621432
$1.49
13
RIVET,(50)
7621336
$1.59
14
DECAL,R.BUMPER(RXL) [No Longer Available]
7074091
Unavailable
15
BUMPER,REAR,BLK. (RXL)
5224334-067
Unavailable
15
BUMPER,R.SKS EFI (Touring)
5224349-067
Unavailable
16
NUT-LOCK(10)
7542122
$1.49
17
SCREW(10)
7511863
$1.99
18
REFLECTOR RED
2670070
$9.91
19
CAP, BUMPER, BLK.
5430930-070
Unavailable
20
WASHER(10)
7558301
$1.49
21
BOLT(10)
7512240
$3.99
22
RIVET ,(50)
7661829
Unavailable
22
RIVET ,(50)
7661829
Unavailable
23
RIVET,(50)
7661825
$1.49
23
RIVET,(50)
7661825
$1.49
23
RIVET,(50)
7661825
$1.49
24
BRKT,RH.REAR SUSP. (Touring)
1011906-067
Unavailable
24
BRKT,LH.REAR SUSP (Touring)
1011905-067
Unavailable
24
BRKT,RH,R.SUSP. (RXL)
1011858-067
Unavailable
24
BRKT,LH,R.SUSP (RXL)
1011857-067
Unavailable
25
EXTRUSION,CLUTCHGUARD
5521238
$6.46
26
RIVET,INTERLOCK,B(50)
7661638
$1.49
26
RIVET,INTERLOCK,B(50)
7661638
$1.49
26
RIVET,INTERLOCK,B(50)
7661638
$1.49
26
RIVET,INTERLOCK,B(50)
7661638
$1.49
26
RIVET,INTERLOCK,B(50)
7661638
$1.49
26
RIVET,INTERLOCK,B(50)
7661638
$1.49
26
RIVET,INTERLOCK,B(50)
7661638
$1.49
26
RIVET,INTERLOCK,B(50)
7661638
$1.49
26
RIVET,INTERLOCK,B(50)
7661638
$1.49
27
FOOTREST ASM, LH
1011861
Unavailable
27
FOOTREST ASM, RH
1011862
Unavailable
28
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
29
SNAP-MALE(10)
7080227
Unavailable
30
BRKT,F.SUSP.,BLK.
5211323-067
$29.99
31
DECAL,TOP,TUNNEL STRIP
7073978
Unavailable
32
BRACE,TUNNEL REINF. Substituted by 5240242
5240265
Unavailable
33
TUNNEL,BLK,SKS (Touring)(Incl. 4,24,30,32)
1011992
Unavailable
33
TUNNEL ASM,BLK,(RXL) (RXL)(Incl. 4,24,30,32)
1011993
$405.94
34
BULKHEAD,BLK.
1011873-067
$396.83
35
RIVET-3/16-.090-.290
7661637
$1.49
35
RIVET-3/16-.090-.290
7661637
$1.49
36
GUARD
5223789
Unavailable
37
PLUG, HOLE(10)
7080416
$5.65
38
PLUG-HOLE
7080398
$4.84
39
BUSHING,OPEN/CLOSE(10)
7080399
$2.39
40
NUT LOCK(10)
7542321
$1.49
41
SCREW(10)
7512307
$3.99
42
SUPPORT,MUFFLER,BLK. Substituted by 5242798-067
1011831-067
Unavailable
43
RIVET(50)
7621452
$1.49
44
BRKT, TOOL BOX
5220973
Unavailable
45
STRIP-WEAR
5510130
Unavailable
