THROTTLE ASSEMBLY RXL 0940768 and RXL TOURING 0940869 (4925062506048A)

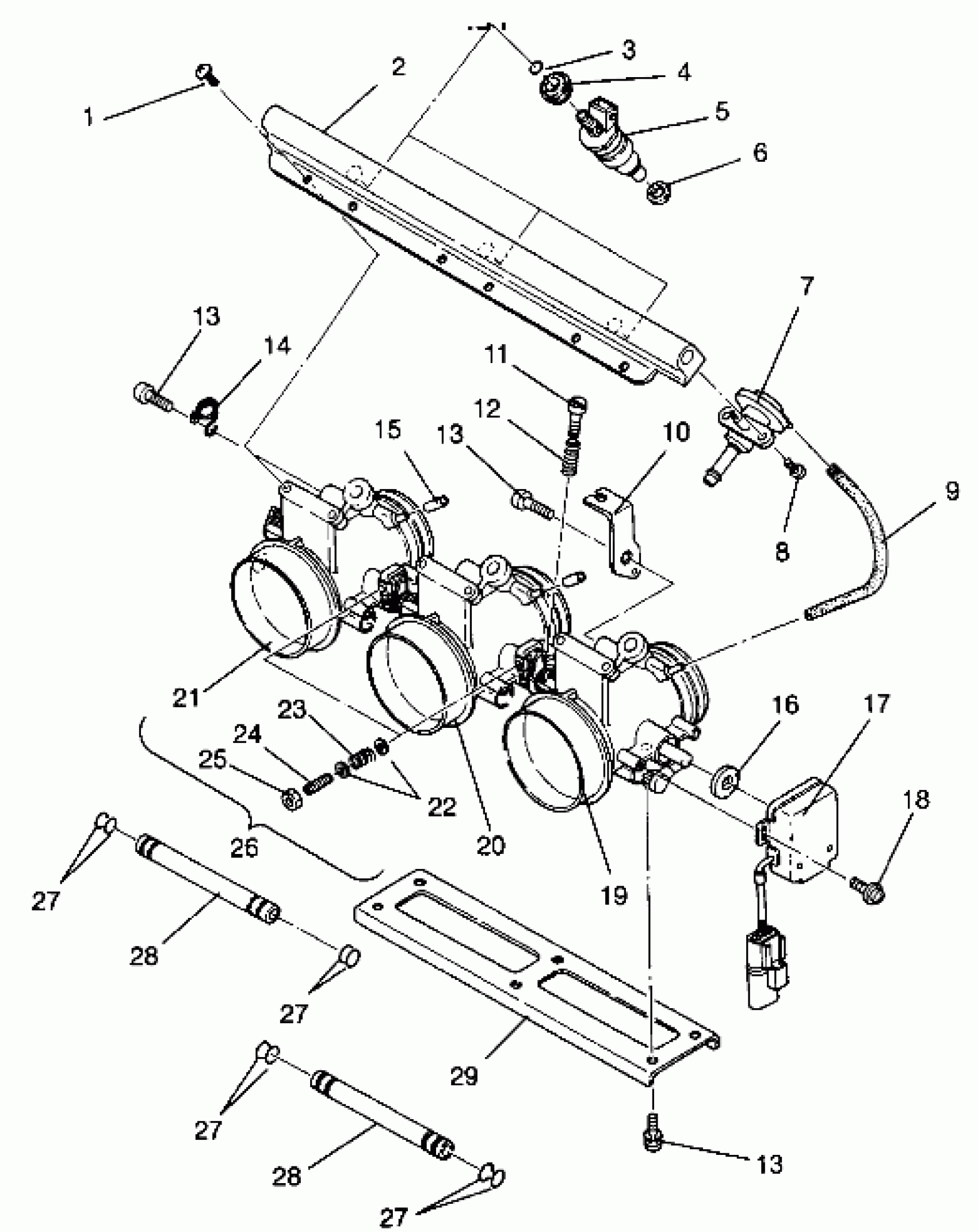

Polaris RXL - 0940768 THROTTLE ASSEMBLY RXL 0940768 and RXL TOURING 0940869 (4925062506048A) Diagram
#
Description
Price
1
SCREW(10)
3084060
Unavailable
2
PIPE,FUEL DELIVERY
3084306
Unavailable
3
O RING, CONNECTOR
3084057
Unavailable
4
INSULATOR,UPPER
3084058
Unavailable
5
INJECTOR, FUEL (Incl. 3,4)
3084056
Unavailable
6
INSULATOR,LOWER
3084059
Unavailable
7
REGULATOR,PRESSURE
3084053
Unavailable
8
SCREW
3084065
Unavailable
9
PIPE, RUBBER
3084308
Unavailable
10
STAY, (WIRE)
3084307
Unavailable
11
SCREW, ADJUST.
3084068
$5.43
12
SPRING
3084069
Unavailable
13
SCREW
3084392
Unavailable
13
SCREW
3084392
Unavailable
13
SCREW
3084392
Unavailable
14
CLAMP, HOSE
3084312
Unavailable
15
CAP, RUBBER
3084077
Unavailable
16
GASKET
3084385
Unavailable
17
SENSOR ASM,THROTTLE
3084616
Unavailable
18
SCREW
3084064
$1.44
19
THROTTLEBODY 3
3084503
$290.94
20
THROTTLEBODY 2
3084502
Unavailable
21
THROTTLEBODY ASM,#1
3084480
$308.99
22
WASHER(10)
3084070
Unavailable
23
SPRING
3084071
Unavailable
24
SCREW, ADJUST.
3084073
$10.63
25
NUT
3084072
Unavailable
26
THROTTLEBODY ASM. (Incl. 1-29)
3084304
$977.58
27
O RING
3084063
Unavailable
27
O RING
3084063
Unavailable
27
O RING
3084063
Unavailable
27
O RING
3084063
Unavailable
28
JOINT, PIPE
3084062
$38.79
28
JOINT, PIPE
3084062
$38.79
29
PLATE, STAY
3084305
$63.73
