SUSPENSION ASSEMBLY RXL TOURING 0940869 (4925062506023A)

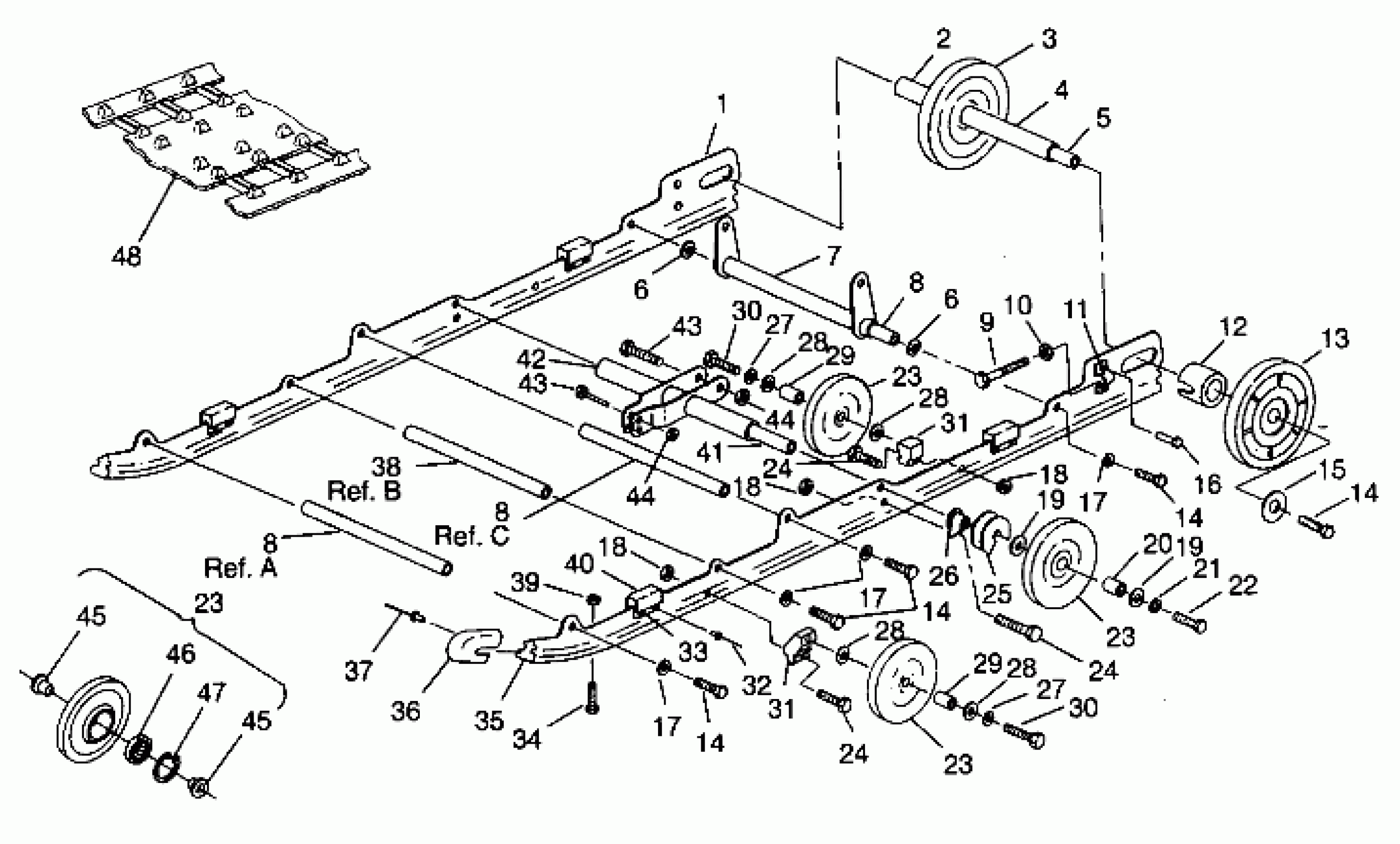

Polaris RXL - 0940768 SUSPENSION ASSEMBLY RXL TOURING 0940869 (4925062506023A) Diagram
#
1
RAIL ASM, RH. (Incl. 11,33,36,40)
1540742
$289.99
1
RAIL ASM, LH. (Incl. 11,33,36,40)
1540741
$140.87
2
SPACER CTR IDLER
5010168
Unavailable
3
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
4
SPACER INNER IDLER
5010169
Unavailable
5
SHAFT,IDLER
5020722
Unavailable
6
MACHINERY BUSHING(10)
7556301
$3.19
6
MACHINERY BUSHING(10)
7556301
$3.19
7
ARM,R.PIVOT,BLK.
1540721-067
Unavailable
8
SHAFT,PIVOT ARM (See Pg. 22)
5020723
$29.99
8
SHAFT,PIVOT ARM (See Pg. 22)
5020723
$29.99
8
SHAFT,PIVOT ARM (See Pg. 22)
5020723
$29.99
9
BOLT, ADJUSTER(10)
7515455
$29.99
10
NUT(10)
7542440
Unavailable
11
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
12
SPACER-IDLER-OUTER
5332641
Unavailable
13
WHEEL,IDLER,OUTER,RED
1594039
Unavailable
14
BOLT(10)
7515526
$1.19
14
BOLT(10)
7515526
$1.19
14
BOLT(10)
7515526
$1.19
14
BOLT(10)
7515526
$1.19
15
WASHER(10) Substituted by 7556130
7571629
Unavailable
16
RIVET,(50)
7621501
$2.39
17
WASHER(10)
7552603
$1.49
17
WASHER(10)
7552603
$1.49
17
WASHER(10)
7552603
$1.49
18
NUT LOCK(10)
7542403
$3.99
18
NUT LOCK(10)
7542403
$3.99
18
NUT LOCK(10)
7542403
$3.99
19
WASHER, FLAT(10)
7555852
$2.39
19
WASHER, FLAT(10)
7555852
$2.39
20
SPACER, WHEEL
5333116
$7.99
21
WASHER LOCK(10)
7553101
$3.99
22
BOLT(10)
7512538
$6.39
23
WHEEL, IDLER (Incl. 45-47)
1543018
$56.65
23
WHEEL, IDLER (Incl. 45-47)
1543018
$56.65
23
WHEEL, IDLER (Incl. 45-47)
1543018
$56.65
23
WHEEL, IDLER (Incl. 45-47)
1543018
$56.65
24
BOLT(10)
7512404
$3.99
24
BOLT(10)
7512404
$3.99
24
BOLT(10)
7512404
$3.99
25
ROLLER, SPRING
5431366
$10.51
26
SPACER
5630399
$11.99
27
LOCK WASHER(10)
7553201
$3.99
27
LOCK WASHER(10)
7553201
$3.99
28
WASHER(10)
7555804
$3.99
28
WASHER(10)
7555804
$3.99
28
WASHER(10)
7555804
$3.99
28
WASHER(10)
7555804
$3.99
29
SPACER
5332786
$7.99
29
SPACER
5332786
$7.99
30
BOLT(10)
7512659
$7.99
30
BOLT(10)
7512659
$7.99
31
BRACKET,BOGIE WHEEL
5130570
$48.56
31
BRACKET,BOGIE WHEEL
5130570
$48.56
32
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
33
REINF., BUMPER
5222629
$13.75
34
SCREW(10)
7512227
$3.19
35
SLIDER,BLK. Substituted by 5521320
5521296
Unavailable
36
COVER, RAIL TIP Substituted by 5433005
5431421
Unavailable
37
RIVET(50)
7621435
$1.49
38
SHAFT,PIVOT ARM (See Pg. 22)
5020724
$29.99
39
NUT-LOCK(10)
7542122
$1.49
40
BUMPER, RAIL
5810554
$7.27
41
SHAFT,R.SHOCK BRKT.
5020649
Unavailable
42
MT.,R.SHOCK,BLK.
1011904-067
$15.67
43
BOLT(10)
7515415
$1.49
43
BOLT(10)
7515415
$1.49
44
NUT-LOCK(10)
7542439
$1.49
44
NUT-LOCK(10)
7542439
$1.49
45
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
45
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
46
BEARING,CHAINCASE (1 per Wheel)
3514305
$19.99
47
RET.RING-TRUARC (1 per Wheel)
7718407
$4.79
48
TRACK,133",CLIP
5410823
Unavailable
