SUSPENSION ASSEMBLY RXL 0940768 (4925062506021A)

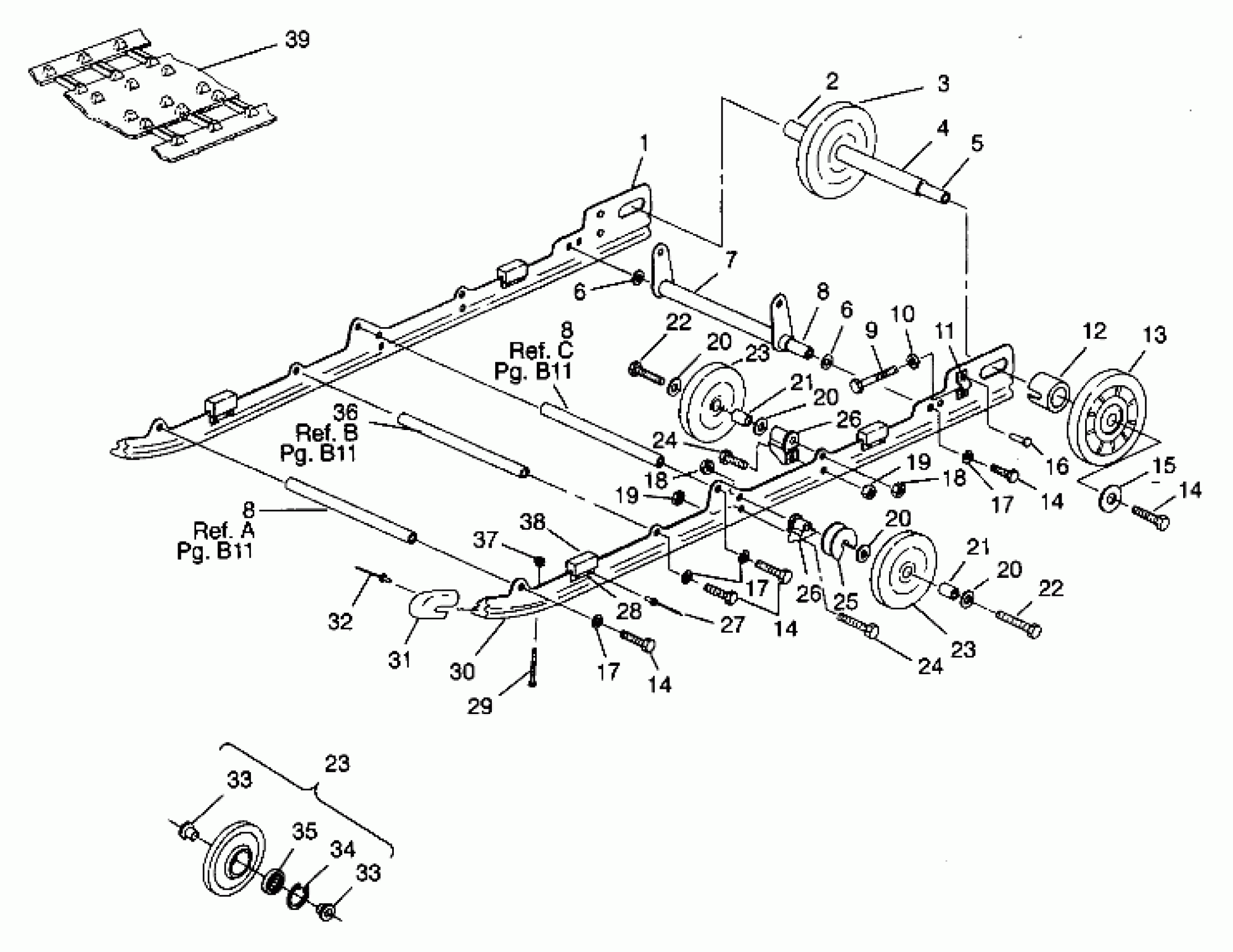

Polaris RXL - 0940768 SUSPENSION ASSEMBLY RXL 0940768 (4925062506021A) Diagram
#
1
RAIL ASM, RH. (XLT)(Incl. 11,28,31,38)
1540796
$263.99
1
RAIL ASM, LH. (XLT)(Incl. 11,28,31,38)
1540795
Unavailable
2
SPACER INNER IDLER
5010169
Unavailable
3
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
4
SPACER,IDLER,R.INNER
5333086
Unavailable
5
SHAFT,IDLER
5020722
Unavailable
6
MACHINERY BUSHING(10)
7556301
$3.19
6
MACHINERY BUSHING(10)
7556301
$3.19
7
ARM, REAR PIVOT
1540677-067
Unavailable
8
SHAFT,PIVOT ARM (Ref. A,C) (See Pg. 21)
5020723
$29.99
8
SHAFT,PIVOT ARM (Ref. A,C) (See Pg. 21)
5020723
$29.99
8
SHAFT,PIVOT ARM (Ref. A,C) (See Pg. 21)
5020723
$29.99
9
BOLT, ADJUSTER(10)
7515455
$29.99
10
NUT(10)
7542440
Unavailable
11
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
12
SPACER-IDLER-OUTER
5332641
Unavailable
13
WHEEL,IDLER,OUTER,RED
1594039
Unavailable
14
BOLT(10)
7515526
$1.19
14
BOLT(10)
7515526
$1.19
14
BOLT(10)
7515526
$1.19
14
BOLT(10)
7515526
$1.19
15
WASHER(10) Substituted by 7556130
7571629
Unavailable
16
RIVET,(50)
7621501
$2.39
17
WASHER(10)
7552603
$1.49
17
WASHER(10)
7552603
$1.49
17
WASHER(10)
7552603
$1.49
18
NUT, NYLOCK(10)
7542525
$4.79
18
NUT, NYLOCK(10)
7542525
$4.79
19
NUT-LOCK(10)
7542439
$1.49
19
NUT-LOCK(10)
7542439
$1.49
20
WASHER, FLAT(10)
7555852
$2.39
20
WASHER, FLAT(10)
7555852
$2.39
20
WASHER, FLAT(10)
7555852
$2.39
20
WASHER, FLAT(10)
7555852
$2.39
21
SPACER, WHEEL
5333116
$7.99
21
SPACER, WHEEL
5333116
$7.99
22
BOLT(10)
7512538
$6.39
22
BOLT(10)
7512538
$6.39
23
WHEEL, IDLER (Incl. 33-35)
1543018
$56.65
23
WHEEL, IDLER (Incl. 33-35)
1543018
$56.65
23
WHEEL, IDLER (Incl. 33-35)
1543018
$56.65
24
BOLT(10)
7512404
$3.99
24
BOLT(10)
7512404
$3.99
25
ROLLER, SPRING
5431366
$10.51
26
SPACER
5630399
$11.99
26
SPACER
5630399
$11.99
27
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
28
REINF., BUMPER
5222629
$13.75
29
SCREW(10)
7512227
$3.19
30
SLIDER,BLK. Substituted by 5521320
5521296
Unavailable
31
COVER-RAIL TIP
5430627
$32.37
32
RIVET(50)
7621435
$1.49
33
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
33
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
34
RET.RING-TRUARC
7718407
$4.79
35
BEARING,CHAINCASE
3514305
$19.99
36
SHAFT,PIVOT ARM (Ref. B)(See Pg. 21)
5020724
$29.99
37
NUT-LOCK(10)
7542122
$1.49
38
BUMPER, RAIL
5810554
$7.27
39
TRACK Substituted by 5410747
5410746
$749.99
