STARTING MOTOR RXL TOURING 0940869 (4925062506050A)

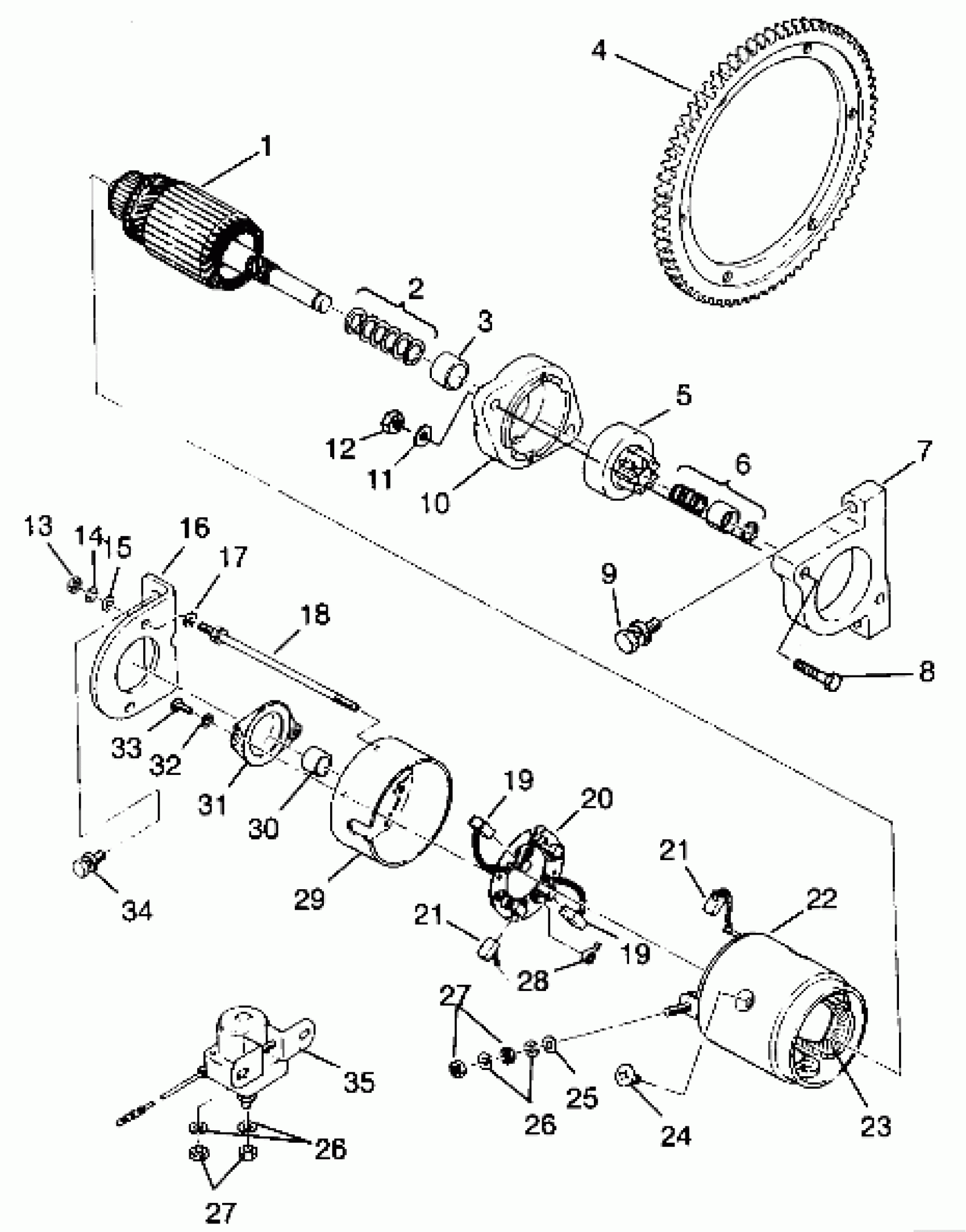

Polaris RXL - 0940768 STARTING MOTOR RXL TOURING 0940869 (4925062506050A) Diagram
#
1
ARMATURE ASM.
3084115
Unavailable
2
KIT-WASHER
3083191
Unavailable
3
BUSHING,METAL,FRONT
3083206
Unavailable
4
GEAR, RING
3083075
Unavailable
5
PINION ASM
3083201
Unavailable
6
STOPPER SET,(PINION)
3084116
Unavailable
7
BRKT,FR.STARTER
1012036-067
Unavailable
8
SCREW(10)
7512310
$2.39
9
BOLT&WASHER ASM.
3083862
$1.49
10
COVER ASM-FRONT. (Incl. 3)
3083205
Unavailable
11
WASHER(10)
7555734
$1.49
12
NUT FLEX-LOC(10)
7542303
$6.39
13
NUT(10)
3083042
Unavailable
14
WASHER SPRING(10)
3083133
Unavailable
15
WASHER Substituted by 3083774
3083134
Unavailable
16
BRKT,R.STARTER
5240377-067
Unavailable
17
WASHER
3083357
$2.39
18
BOLT-THROUGH
3083203
Unavailable
19
BRUSH, (-) (-)
3083196
Unavailable
19
BRUSH, (-) (-)
3083196
Unavailable
20
HOLDER ASM,BRUSH (Incl. 19,28)
3083195
Unavailable
21
BRUSH, (+) (+)
3083194
Unavailable
21
BRUSH, (+) (+)
3083194
Unavailable
22
MOTOR-STARTER (Incl. 1-3,5,6,10,18-33)
3083189
Unavailable
23
COIL-FIELD (Incl. 21,24)
3083192
Unavailable
24
SCREW-POLE CORE SET
3083193
Unavailable
25
WASHER(10)
3080078
Unavailable
26
WASHER SPRING(10)
3080077
$2.39
26
WASHER SPRING(10)
3080077
$2.39
27
NUT(10)
3082939
Unavailable
27
NUT(10)
3082939
Unavailable
28
SPRING-BRUSH
3083197
Unavailable
29
COVER ASM-REAR (Incl. 30)
3083198
Unavailable
30
COVER-REAR METAL
3083199
Unavailable
31
COVER-DUST
3083204
Unavailable
32
WASHER-SPRING(10)
3083208
Unavailable
33
SCREW
3083207
Unavailable
34
BOLT&WASHER(10)
3083946
Unavailable
35
SWITCH-MAGNETIC Substituted by 3085521 (Incl. 26,27)
3083211
Unavailable
