SEAT and GAS TANK ASSEMBLY RXL TOURING 0940869 (4925062506004A)

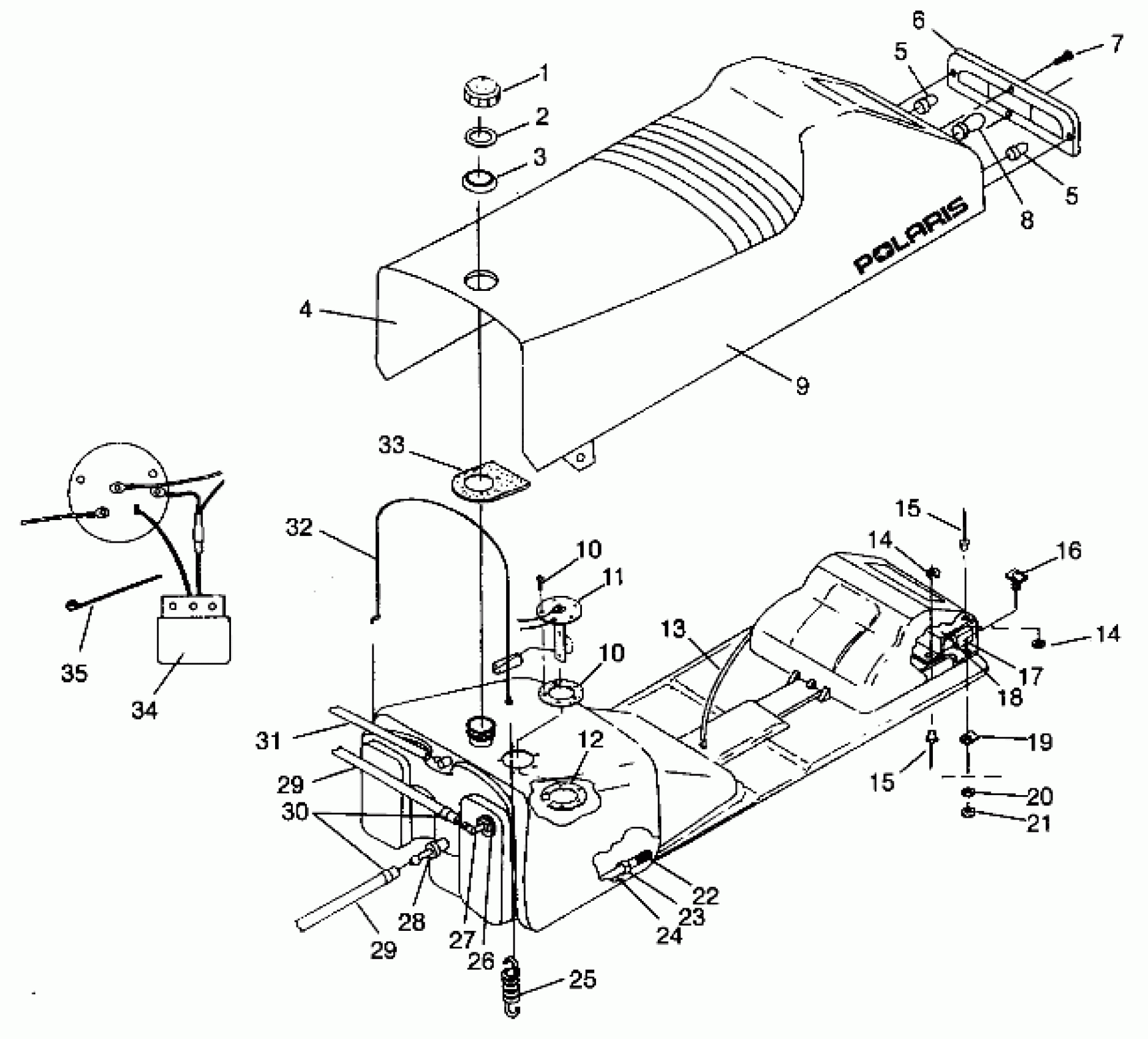

Polaris RXL - 0940768 SEAT and GAS TANK ASSEMBLY RXL TOURING 0940869 (4925062506004A) Diagram
#
1
CAP,FUELTANK,W/GASKET
2511226
Unavailable
2
GASKET, GAS CAP
5810513
$8.89
3
GROMMET,FUELTANK
5410842
Unavailable
4
SEAT/TANK ASM. (Incl. 7,8,13-19)
2681689
$399.99
5
BULB,TAILLIGHT(10)
4030024
$4.84
5
BULB,TAILLIGHT(10)
4030024
$4.84
6
LENS,TAILLIGHT
5430423
Unavailable
7
SCREW(10)
7511840
Unavailable
8
Bulb, Brakelight
4030045
Unavailable
9
COVER SEAT,(RXL-TRNG'94) Substituted by 2681750
2681690
Unavailable
10
HDWE.PKG,SEND.UNIT
2410012
Unavailable
10
HDWE.PKG,SEND.UNIT
2410012
Unavailable
11
SEND.UNIT,W/HDWE.PKG.
2410015
Unavailable
12
MTG.FLANGE,FUELTANK Substituted by 5244067
5211308
Unavailable
13
HARNESS,TAILLIGHT
2460398
Unavailable
14
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
14
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
15
RIVET, BLIND(50)
7621467
$1.49
15
RIVET, BLIND(50)
7621467
$1.49
16
MOUNT, REAR SEAT
1011855
Unavailable
17
HOUSING,TAILLIGHT Substituted by 5433341
5431545
Unavailable
18
COVER,T/L PROTECTOR
5431436
$21.43
19
SPEED NUT(10)
7670021
$6.99
20
WASHER(10)
7558301
$1.49
21
NUT-LOCK(10)
7542122
$1.49
22
PICKUP,FUEL,W/STRAINER
7052081
Unavailable
23
RING, COMPRESSION(10)
7080402
$1.60
24
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
25
SPRING-EXHAUST(10)
7042029
$4.84
26
GROMMET-TANK FITTING(10)
7052028
$6.39
27
FITTING,TANK OUTLET(5/16)
7052059
Unavailable
28
FITTING - OUTLET(10)
7052023
$24.99
29
FUEL LINE, 5 FT.
8450045-153
Unavailable
29
FUEL LINE, 5 FT.
8450045-153
Unavailable
30
CLAMP, HOSE
7080490
Unavailable
31
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
32
CABLE,TANK RETENTION
7080473
Unavailable
33
FOAM, FILLER
5810201
Unavailable
34
RECTIFIER, FUEL (LR-51)
4060094
$17.46
35
STRAP, BLK
7080272
Unavailable
