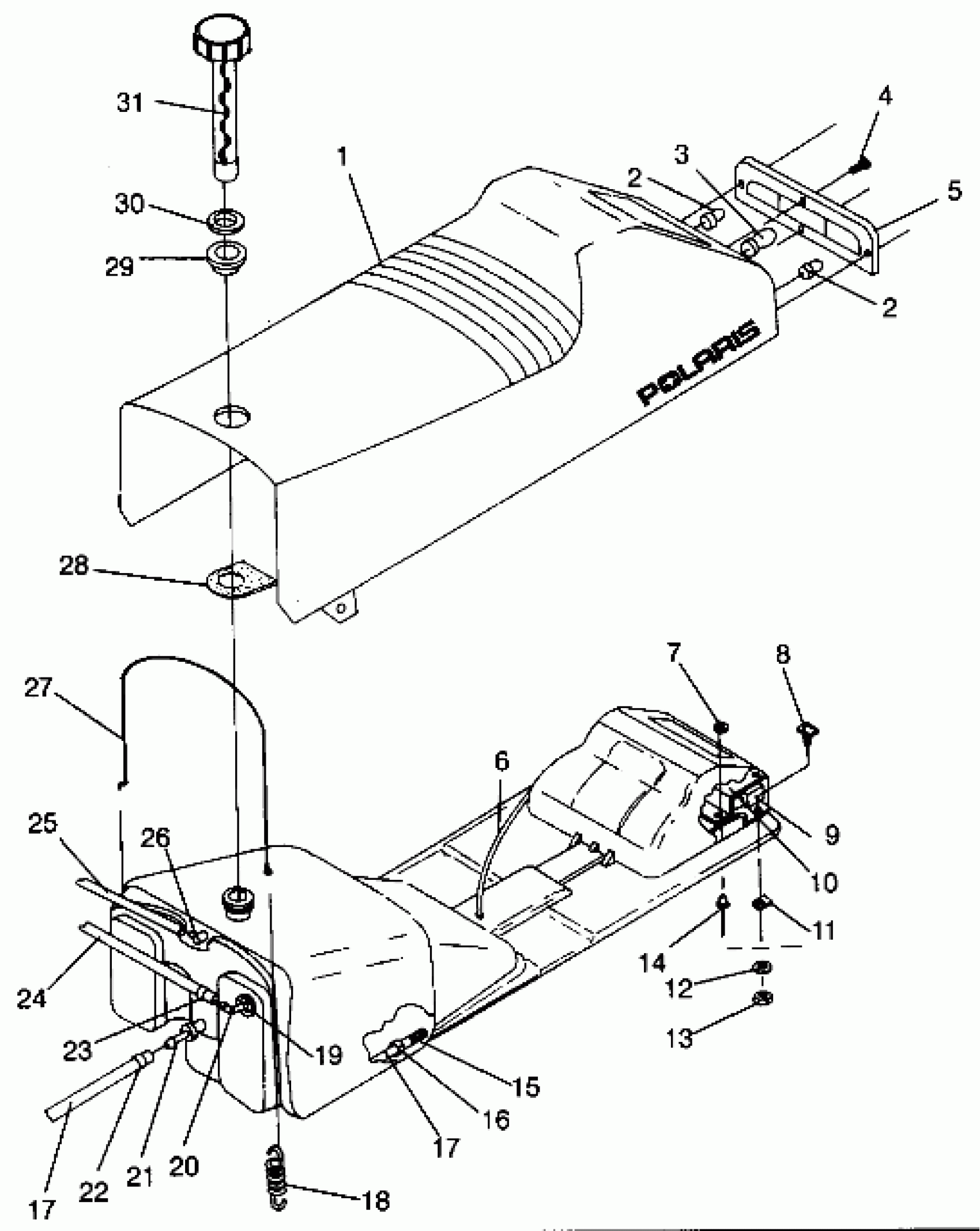

Polaris RXL - 0940768 SEAT and GAS TANK ASSEMBLY RXL 0940768 (4925062506003A) Diagram

#

Description
Price

1

COVER SEAT,(RXL-TRNG'94) Substituted by 2681750

2681690

Unavailable

1

SEAT ASM,(94 RXL) (Incl. 3,4,6-11,14)

2681715

$444.99

2

BULB,TAILLIGHT(10)

4030024

$4.84

2

BULB,TAILLIGHT(10)

4030024

$4.84

3

Bulb, Brakelight

4030045

Unavailable

4

SCREW(10)

7511840

Unavailable

5

LENS,TAILLIGHT

5430423

Unavailable

6

HARNESS,TAILLIGHT

2460398

Unavailable

7

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

8

MOUNT, REAR SEAT

1011855

Unavailable

9

HOUSING,TAILLIGHT Substituted by 5433341

5431545

Unavailable

9

HOUSING, TAILLIGHT

5431450

$19.83

10

COVER,T/L PROTECTOR

5431436

$21.43

11

SPEED NUT(10)

7670021

$6.99

12

WASHER(10)

7558301

$1.49

13

NUT-LOCK(10)

7542122

$1.49

14

RIVET, BLIND(50)

7621467

$1.49

15

PICKUP,FUEL,W/STRAINER

7052081

Unavailable

16

RING, COMPRESSION(10)

7080402

$1.60

17

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

17

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

18

SPRING-EXHAUST(10)

7042029

$4.84

19

GROMMET-TANK FITTING(10)

7052028

$6.39

20

FITTING,TANK OUTLET(5/16)

7052059

Unavailable

21

FITTING - OUTLET(10)

7052023

$24.99

22

CLAMP-HOSE, (LARGE GREEN) (Green)

7080307

$1.49

23

CLAMP, HOSE

7080490

Unavailable

24

FUEL LINE, 5 FT.

8450045-153

Unavailable

25

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

26

FITTING,(10)

7052077

$6.39

27

CABLE,TANK RETENTION

7080473

Unavailable

28

FOAM, FILLER

5810201

Unavailable

29

GROMMET,FUELTANK

5410842

Unavailable

30

GASKET, GAS CAP

5810513

$8.89

31

CAP,FUEL W/GAUGE Substituted by 2511248

2511227

$44.51
