REAR TORQUE ARM ASSEMBLY RXL 0940768 (4925062506027A)

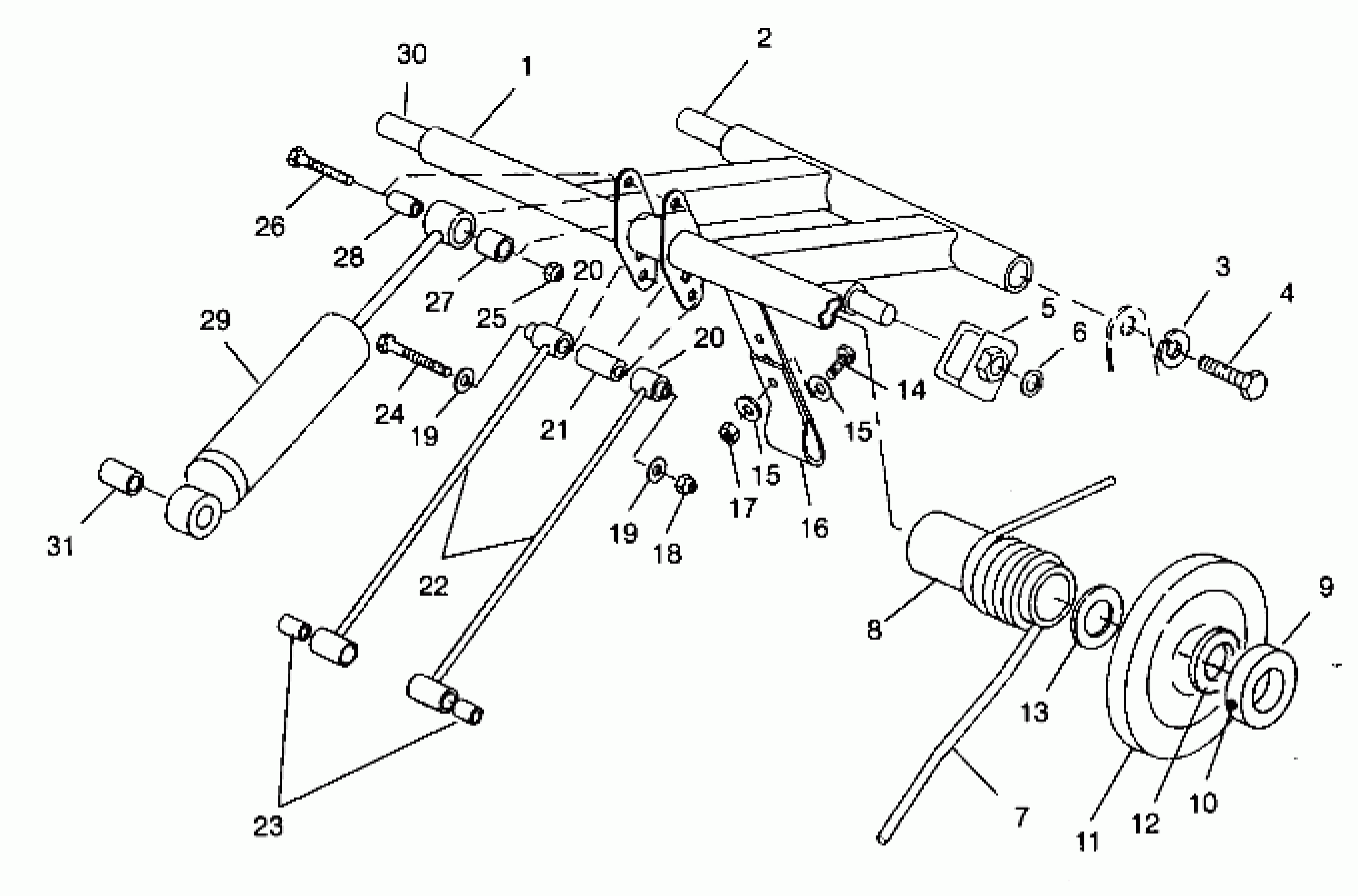

Polaris RXL - 0940768 REAR TORQUE ARM ASSEMBLY RXL 0940768 (4925062506027A) Diagram
#
Description
Price
1
ARM,R.TORQUE,BLK.
1540793-067
Unavailable
2
SHAFT,R.TORQUE ARM
5020727
Unavailable
3
WASHER(10)
7552603
$1.49
4
BOLT(10) Substituted by 7512492
7515458
Unavailable
5
ROLLER, SPRING ADJ.
5431168
Unavailable
6
CLIP-PUSH ON
7080394
$2.39
7
SPRING,RH,R.SUSP,BLK.
7041249-067
$99.21
7
SPRING,LH,R.SUSP,BLK.
7041248-067
Unavailable
8
Tube, Spring
5521234
Unavailable
9
COLLAR-BRG. LOCK
5010155
Unavailable
10
SCREW-SET(10)
7512257
$3.99
11
Wheel, Carrier
1543023
Unavailable
12
WASHER-WAVE(10)
7571605
$6.39
13
WASHER SPECIAL(10)
7556509
$1.59
14
BOLT(10)
7512247
$2.39
15
WASHER(10)
7558221
$2.39
15
WASHER(10)
7558221
$2.39
16
STRAP, LIMITER
5410587
Unavailable
17
NUT, LOCK(10)
7542103
$5.59
18
NUT FLEX LOC,(10)
7542402
$6.39
19
WASHER(10) Substituted by 7555806
7555720
$0.79
19
WASHER(10) Substituted by 7555806
7555720
$0.79
20
BUSHING,PIVOT TUBE
5020561
$1.59
20
BUSHING,PIVOT TUBE
5020561
$1.59
21
SPACER,R.PIVOT ARM
5333026
$3.03
22
ROD, SUSP,BLK.
1540792-067
Unavailable
23
Spacer
5333028
$1.59
24
SCREW(10)
7512463
$5.43
25
NUT-5/16-18 NYLOK-Y
7542324
$1.49
26
BOLT(10)
7512329
$3.99
27
BUSHING
5430537
$3.99
28
BUSHING,R.SHOCK
5333030
Unavailable
29
SHOCK ASM.
7041237
Unavailable
30
SHAFT, MTG, REAR
5020570
Unavailable
31
BUSHING, 1.40
5020657
$15.99
