OIL TANK / AIR BOX ASSEMBLY RXL 0940768 and RXL TOURING 0940869 (4925062506033A)

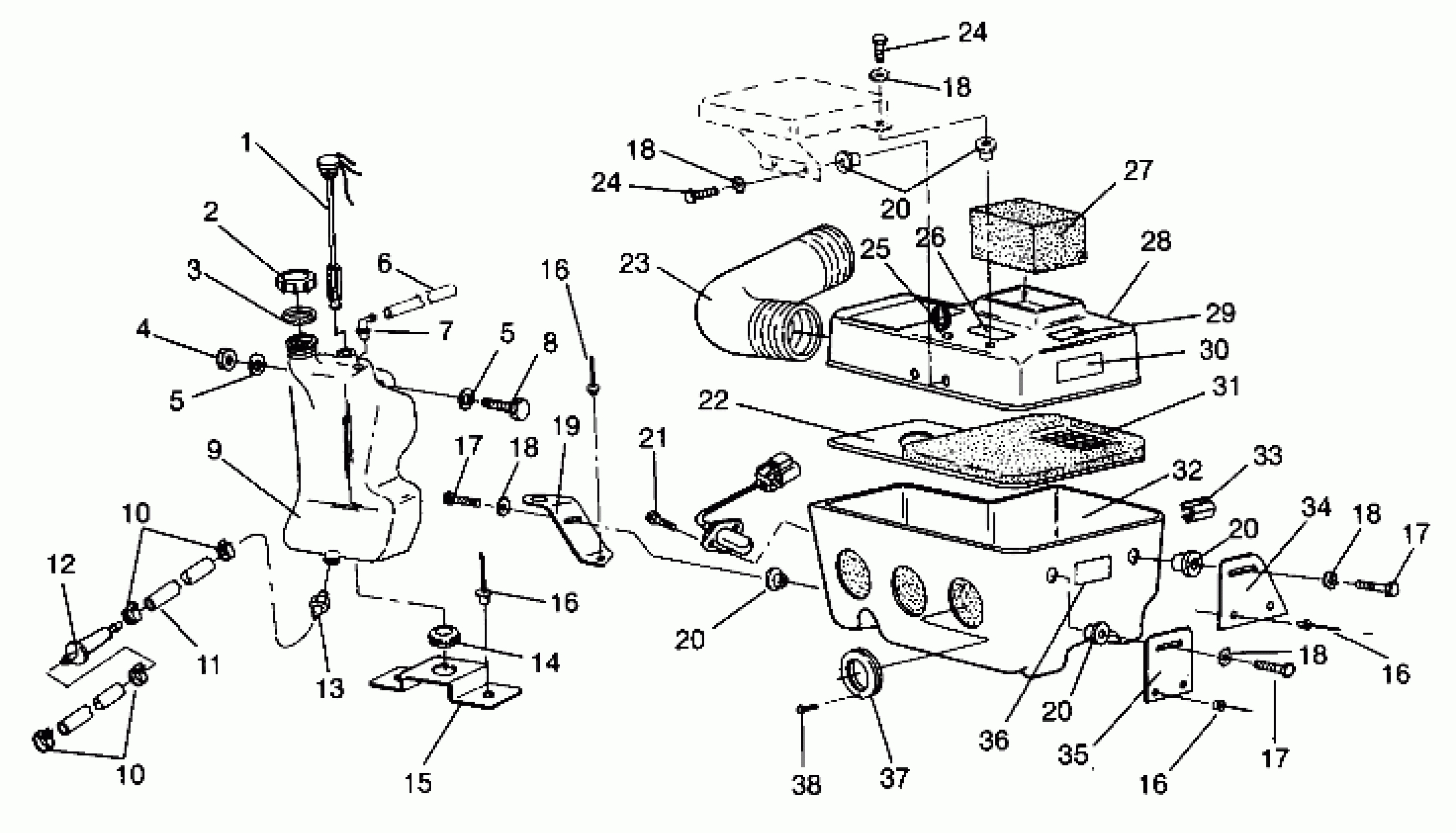

Polaris RXL - 0940768 OIL TANK / AIR BOX ASSEMBLY RXL 0940768 and RXL TOURING 0940869 (4925062506033A) Diagram
#
1
SENSOR,OIL LEVEL,W/CONN.
4040040
$72.84
2
CAP,OIL TANK
5430779
$14.56
3
GASKET-OIL CAP
5810141
$2.39
4
NUT-LOCK(10)
7542122
$1.49
5
WASHER,WROUGHT(10)
7558302
$1.59
5
WASHER,WROUGHT(10)
7558302
$1.59
6
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
7
FITTING,90 DEG,1/8,(10)
7052095
$4.79
8
BOLT(10)
7512103
$3.19
9
Tank, Oil
5431437
Unavailable
10
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
10
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
11
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
12
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
13
FITTING, OUTLET
7052042
$8.99
14
GROMMET RUBBER
5410021
Unavailable
15
BRACKET
5223985
Unavailable
16
RIVET-3/16-.090-.290
7661637
$1.49
16
RIVET-3/16-.090-.290
7661637
$1.49
16
RIVET-3/16-.090-.290
7661637
$1.49
16
RIVET-3/16-.090-.290
7661637
$1.49
17
SCREW(10)
7512279
$1.49
17
SCREW(10)
7512279
$1.49
17
SCREW(10)
7512279
$1.49
18
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
18
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
18
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
18
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
18
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
19
BRKT,AIR SILENCER
5222617-067
Unavailable
20
NUT-WELL(10)
7541923
$5.59
20
NUT-WELL(10)
7541923
$5.59
20
NUT-WELL(10)
7541923
$5.59
20
NUT-WELL(10)
7541923
$5.59
21
BOLT(10) Substituted by 7527815
7511871
Unavailable
22
PLATE,AIR SILENCER
5850075
$24.27
23
HOSE-INLET
5410251
Unavailable
24
BOLT(10)
7512261
$4.99
24
BOLT(10)
7512261
$4.99
25
CLAMP,WIRE ROUTING(10)
7080409
$2.39
26
DECAL,FOAM,CAUTION [No Longer Available]
7072907
Unavailable
27
INTAKE ASM,FOAM,(EFI)
1253113
Unavailable
28
COVER,SILENCER(DRILLED)
5431220
Unavailable
29
DECAL,INTAKE SILENCER [No Longer Available]
7072908
Unavailable
30
DECAL,ADJ.DRIVEN CLUTCH
7073820
Unavailable
31
BAFFLE ASM.
1253104
Unavailable
32
SILENCER,INTAKE(DRILLED)
5431192
Unavailable
33
CLIP, AIR BOX,(10)
7670055
$7.99
34
BRACKET, SILENCER
5211274
$9.70
35
BRKT,FRT.SILENCER
5211296-067
$4.38
36
DECAL, GREASING [No Longer Available]
7073426
$7.27
37
BOOT, RELIEVED
5410585
Unavailable
38
SCREW,SELF-TAP(10)
7522004
Unavailable
