NOSEPAN RXL 0940768 and RXL TOURING 0940869 (4925062506005A)

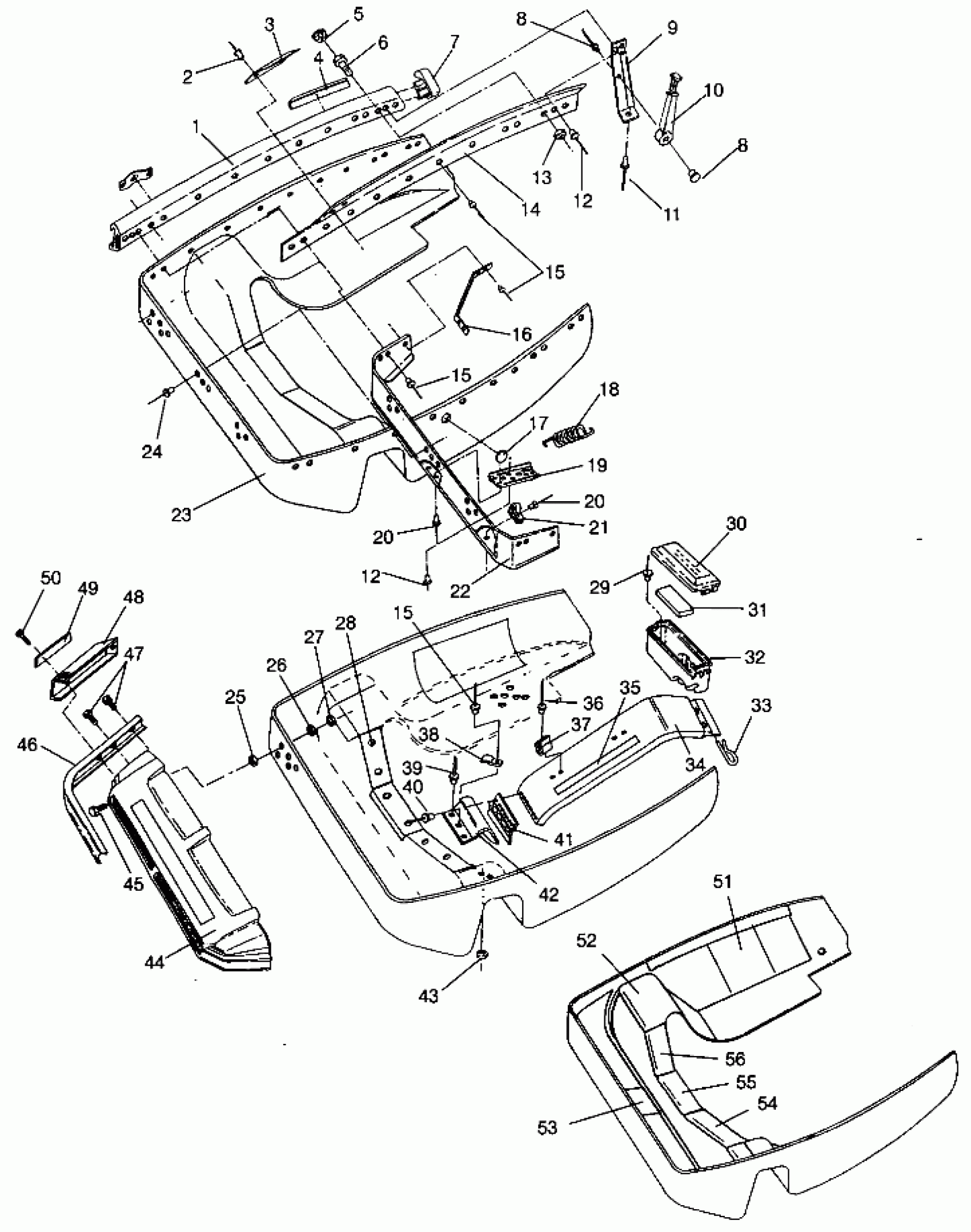

Polaris RXL - 0940768 NOSEPAN RXL 0940768 and RXL TOURING 0940869 (4925062506005A) Diagram
#
1
BUMPER,LH,EXT,BAH.BLUE (Incl. 7)
2670151-183
Unavailable
1
BUMPER,RH,EXT,BAH.BLUE (Incl. 7)
2670152-183
$92.99
2
RIVET(50)
7621318
$1.49
3
GUIDE, HOOD
5220984
Unavailable
4
REFLECTOR AMBER
2670071
Unavailable
5
PLUG, HOLE(10)
7080416
$5.65
6
BOLT(10)
7512296
Unavailable
7
CAP,BUMPER,LH
5431083
Unavailable
7
CAP,BUMPER,RH
5431084
$1.67
8
RIVET,(50)
7621601
Unavailable
8
RIVET,(50)
7621601
Unavailable
9
BRACE,PAN,RH
5220523-067
$94.99
9
BRACE,PAN,LH
5220522-067
$94.99
10
STRAP, HOOD LATCH
5410370
$24.27
11
RIVET,3/16X.402(50)
7621432
$1.49
12
RIVET(50)
7621452
$1.49
12
RIVET(50)
7621452
$1.49
13
NUT, LOCK(10)
7542103
$5.59
14
GUIDE-HOOD LH
5510133
$19.83
14
GUIDE,HOOD RH
5510134
$20.63
15
POP RIVET(50)
7621402
$1.49
15
POP RIVET(50)
7621402
$1.49
15
POP RIVET(50)
7621402
$1.49
16
BRACE,PAN, CORNER
5222254
$9.91
17
PLUG
5410344
$5.65
18
SPRING,HOOD CABLE
7041202
Unavailable
19
BRACE, PAN
5223996
Unavailable
20
RIVET-3/16-.090-.290
7661637
$1.49
20
RIVET-3/16-.090-.290
7661637
$1.49
21
CLAMP, RETAINER(10)
7080372
$3.99
22
BRACE, HINGE
5220951
$56.99
23
NOSEPAN,LIQ.BLK,VAC.FORM
5410728-067
Unavailable
24
BLIND RIVET(50)
7621403
$1.49
25
CAP, TOWER
5020517
$16.49
26
WASHER(10)
7558301
$1.49
27
NUT-LOCK(10)
7542122
$1.49
28
RIVET, BLIND(50)
7621467
$1.49
29
SCREW(10)
7512017
$4.79
30
COVER,TOOL BOX
5430719
$28.32
31
FOAM - TOOL BOX
5810266
Unavailable
32
BOX-TOOL
5430716
$11.99
33
PIN,RETAINING,(10)
7080216
$9.70
34
GUARD,CLUTCH Substituted by 5240965
5230118
Unavailable
35
DECAL,ENG/CLUTCH [No Longer Available]
7072871
Unavailable
36
RIVET(50)
7621429
$1.49
37
CLIP,BELT RETAINER
5222769
$8.79
38
CLIP, WIRING,(10) Substituted by 7080665
4020035
Unavailable
39
RIVET(50)
7621435
$1.49
40
RIVET, POP(50)
7621330
$1.49
41
HINGE
5210728
Unavailable
42
BRACKET, HINGE Substituted by 5241437
5220406
Unavailable
43
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
44
NOSECONE,(RXL TRG)
5430931-1039
Unavailable
45
SCREW(10)
7512279
$1.49
46
BUMPER,FR,BAH.BLUE Substituted by 5224517-183
5224333-183
$154.99
47
SCREW(10)
7512102
$3.19
48
CAP, BUMPER, BLK.
5430930-070
Unavailable
49
EMBLEM'POLARIS'RED
5430979-093
Unavailable
50
SCREW(10)
7511863
$1.99
51
FOIL-TAPE
5810108
$24.27
52
TAPE,FOIL,PAN#6 Substituted by 5811723
5810496
Unavailable
53
TAPE, FOIL,(5X12)
5810466
Unavailable
54
TAPE,FOIL,PAN#4
5810494
Unavailable
55
TAPE,FOIL,PAN#5
5810495
$5.65
56
TAPE,FOIL,PAN#3
5810493
Unavailable
