HOOD ASSEMBLY RXL 0940768 and RXL TOURING 0940869 (4925062506007A)

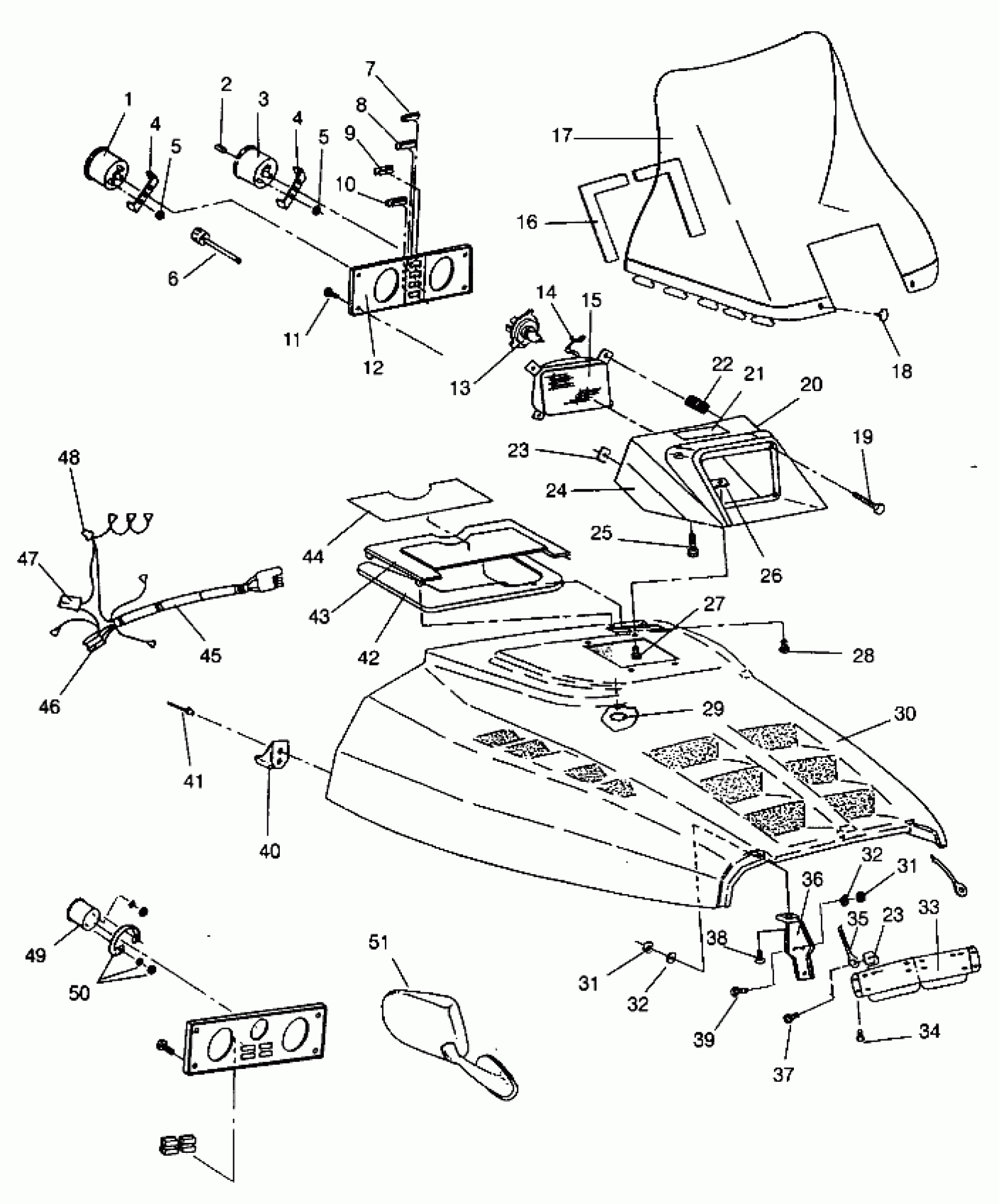

Polaris RXL - 0940768 HOOD ASSEMBLY RXL 0940768 and RXL TOURING 0940869 (4925062506007A) Diagram
#
1
TACHOMETER,3 CYL. Substituted by 3280192 (Incl. 4, 5)
3280096
Unavailable
2
KNOB,TRIP ODOMETER,LH THD.
3280186
$9.70
3
SPEEDOMETER (Incl. 4, 5)
3280092
$111.99
4
BRACKET
3280098
Unavailable
4
BRACKET
3280098
Unavailable
5
Nut
3280158
Unavailable
5
WASHER,SPLIT LOCK
3280156
$1.49
5
Nut
3280158
Unavailable
5
WASHER,SPLIT LOCK
3280156
$1.49
6
CABLE,SPEEDO.
3280094
$60.70
7
INDICATOR'TEMP'WARN.
4040011
$32.37
8
INDICATOR'OIL/BRK'WARN.
4040034
$12.17
9
INDICATOR'HI-BEAM'WARN.
4040013
Unavailable
10
INDICATOR,'ACC'WARN.
4040014
Unavailable
11
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
12
BEZEL, INST. (RXL)
5430924
Unavailable
12
BEZEL, INSTRUMENT (Touring)
5431308
Unavailable
13
BULB,QUARTZ.H/L,INDY
2870448
$24.99
14
RETAINER,H/L BULB
4032063
Unavailable
15
HEADLIGHT ASM.
4032040
Unavailable
16
PAD,W/S,LH,BLACK
5810437
Unavailable
16
PAD,W/S,RH,BLACK
5810438
$1.67
17
WINDSHIELD,SMOKE,STD(LIQ) (Tour.)
5431144
$134.99
17
WINDSHIELD,SMOKE,LOW Substituted by 2870785 (RXL)
5431621
Unavailable
18
RIVET,(PLASTIC LOK)(50) Substituted by 7621509
7621505
$1.19
19
SCREW, ADJ.(10)
4032003
Unavailable
20
HSG,INST,TOP,BLK (RXL)
5430923-070
Unavailable
20
HOUSING, TOP, MODIFIED (Touring)
5431364
$23.59
21
DECAL,SHIFT PATTERN
7074663
Unavailable
22
SPRING-ADJ
4032002
Unavailable
23
NUT, SPEED(10)
7670056
Unavailable
23
NUT, SPEED(10)
7670056
Unavailable
24
HSG,INST.BOTT.BLK. (RXL)
5430922-070
Unavailable
24
HSG,BOTTOM(MOD.)BLK. (Tour.)
5431363
Unavailable
25
SCREW(10)
7512009
Unavailable
26
NUT, SPEED(10)
7670057
$1.49
27
SCREW, SEMS(10)
7512283
$3.99
28
SCREW(10)
7511840
Unavailable
29
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
30
HOOD ASM,BAH.BLUE(RXL)
2631574-183
Unavailable
31
NUT-LOCK(10)
7542122
$1.49
31
NUT-LOCK(10)
7542122
$1.49
32
WASHER,WROUGHT(10)
7558302
$1.59
32
WASHER,WROUGHT(10)
7558302
$1.59
33
PLATE,RE-INF.,(HD.)
5222105
$49.51
34
SCREW(10)
7511861
Unavailable
35
CABLE,HOOD RETAINER
7080368
$10.51
36
HINGE ASM,HD,BAH.BLUE
2635005-183
Unavailable
37
SCREW(10)
7511989
Unavailable
38
BOLT-CARRIAGE(10)
7512263
$3.99
39
BOLT(10)
7512193
$2.39
40
CUP, HOOD LATCH,(10)
5430733
$4.84
41
RIVET(50)
7621334
$1.49
42
SEAL, INTAKE
5810597
Unavailable
43
PANEL ASM,INTAKE,BAH.BLUE
2620078-183
Unavailable
44
DECAL,DASH WARNING [No Longer Available]
7072870
Unavailable
45
HARNESS,HEADLIGHT (RXL)
2460382
Unavailable
45
HARNESS,HEADLIGHT(RXL) (Touring)
2460436
$26.78
46
HOUSING
4020052
Unavailable
47
Housing
4020115
$1.59
48
HOUSING
4020114
Unavailable
49
INDICATOR,FUEL LEVEL
3280118
$53.59
50
HDWE.PKG,FUEL INDIC.
3280119
$24.79
51
PR,MIRRORS,R.VIEW
2870938
Unavailable
