FRONT TORQUE ARM ASSEMBLY RXL TOURING 0940869 (4925062506026A)

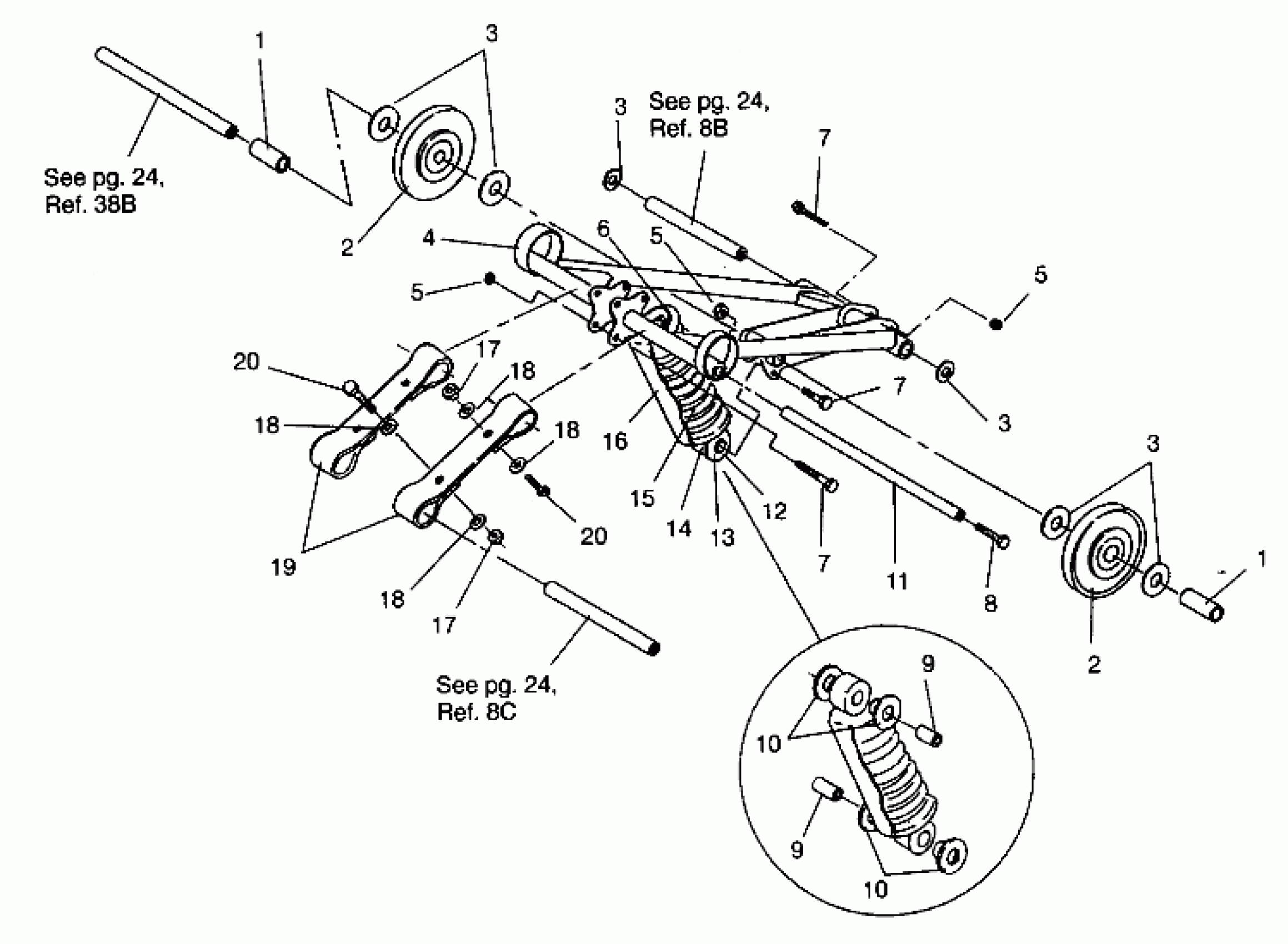

Polaris RXL - 0940768 FRONT TORQUE ARM ASSEMBLY RXL TOURING 0940869 (4925062506026A) Diagram
#
Description
Price
1
SPACER, OUTER
5332784
Unavailable
1
SPACER, OUTER
5332784
Unavailable
2
Asm., Bogie Wheel (See Pg. A24, Ref. 23)
-------
Unavailable
2
Asm., Bogie Wheel (See Pg. A24, Ref. 23)
-------
Unavailable
3
MACHINERY BUSHING(10)
7556301
$3.19
3
MACHINERY BUSHING(10)
7556301
$3.19
3
MACHINERY BUSHING(10)
7556301
$3.19
3
MACHINERY BUSHING(10)
7556301
$3.19
4
ARM,F.TORQUE,BLK.
1540722-067
Unavailable
5
NUT-LOCK(10)
7542439
$1.49
5
NUT-LOCK(10)
7542439
$1.49
5
NUT-LOCK(10)
7542439
$1.49
6
RETAINER,SPRING,SLOTTED
5020618
$24.99
7
BOLT(10)
7515415
$1.49
7
BOLT(10)
7515415
$1.49
8
BOLT, BLACK
7515494
$3.03
9
BUSHING, (1.24)
5020640
Unavailable
9
BUSHING, (1.24)
5020640
Unavailable
10
BUSHING,SHOCK,.260 Substituted by 1500184
5431541
Unavailable
10
BUSHING,SHOCK,.260 Substituted by 1500184
5431541
Unavailable
11
SHAFT,MOUNTING
5010149
Unavailable
12
SHOCK,GAS,MIDDLE
7041294
Unavailable
13
RETAINER, SPRING BODY
5020617
Unavailable
14
RING, RETAINING(10)
7710424
$0.63
15
SPRING,BLACK,COMP.
7041253-067
$95.22
16
SHIELD-SPRING
5430671
$24.27
17
NUT-5/16-18 NYLOK-Y
7542324
$1.49
17
NUT-5/16-18 NYLOK-Y
7542324
$1.49
18
WASHER(10)
7555716
$1.59
18
WASHER(10)
7555716
$1.59
18
WASHER(10)
7555716
$1.59
18
WASHER(10)
7555716
$1.59
19
STRAP, LIMITER
5410397
Unavailable
20
BOLT(10) NOTE: For Fox Shock replacement parts, see page A37.
7515307
$3.99
20
BOLT(10) NOTE: For Fox Shock replacement parts, see page A37.
7515307
$3.99
